| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_008T01_9000004956_34658cztM0_level2.evt | modeM0/AS1T05_008T01_9000004956_34658cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,530,240 | 68,932,800 |
| Size | 536.5 MB | 65.7 MB |
| Events in quadrant A | 2,639,131 | 438,540 |
| Events in quadrant B | 4,536,937 | 413,133 |
| Events in quadrant C | 2,996,562 | 436,693 |
| Events in quadrant D | 6,477,622 | 399,878 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11625 | 3 |
| B | 0 | 17199 | 2 |
| C | 0 | 12182 | 2 |
| D | 0 | 23287 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5703 | 7 | 0.122742% |
| B | 5703 | 505 | 8.854989% |
| C | 5703 | 47 | 0.824128% |
| D | 5703 | 553 | 9.696651% |

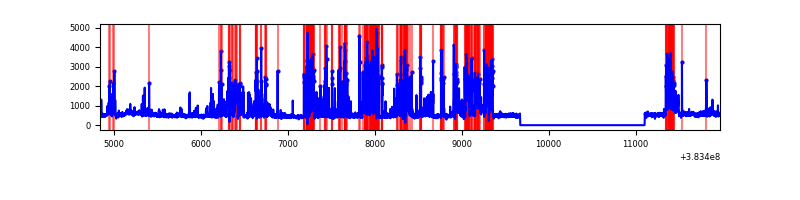

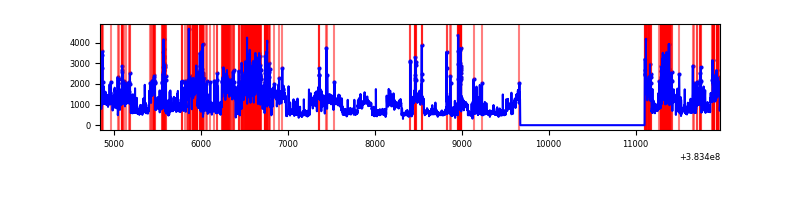

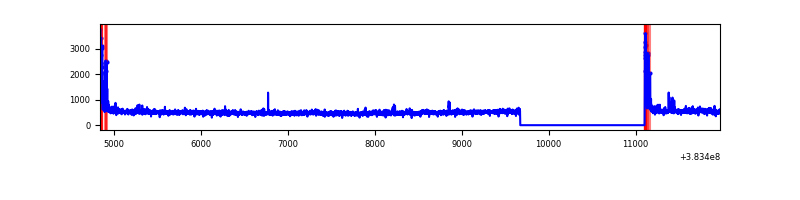

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7136 | 5704 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7136 | 5704 | 344 | 344 | 4.82% | 6.03% |  |
| C | 7136 | 5704 | 36 | 36 | 0.50% | 0.63% |  |
| D | 7136 | 5704 | 466 | 466 | 6.53% | 8.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 49391 | 359.12 | 665 | 650 | 135.7 |
| A | 13 | 254 | 10406 | 71.88 | 665 | 650 | 135.7 |
| A | 13 | 6 | 10136 | 69.89 | 665 | 650 | 135.7 |
| B | 5 | 172 | 1502986 | 12260.3 | 638 | 621 | 122.5 |
| B | 4 | 81 | 247135 | 2011.72 | 638 | 621 | 122.5 |
| B | 5 | 255 | 131200 | 1065.61 | 638 | 621 | 122.5 |
| C | 15 | 214 | 241010 | 1593.42 | 642 | 646 | 150.8 |
| C | 0 | 10 | 166272 | 1097.97 | 642 | 646 | 150.8 |
| C | 14 | 67 | 63184 | 414.58 | 642 | 646 | 150.8 |
| D | 8 | 195 | 2381789 | 15383.94 | 625 | 605 | 154.8 |
| D | 3 | 13 | 370602 | 2390.41 | 625 | 605 | 154.8 |
| D | 7 | 38 | 292701 | 1887.12 | 625 | 605 | 154.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

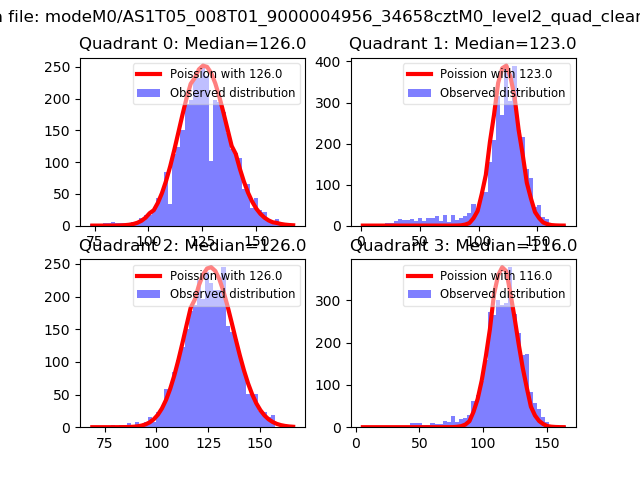

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

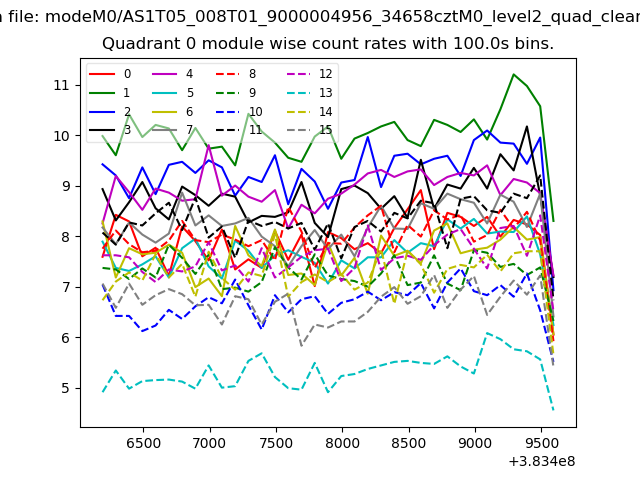

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

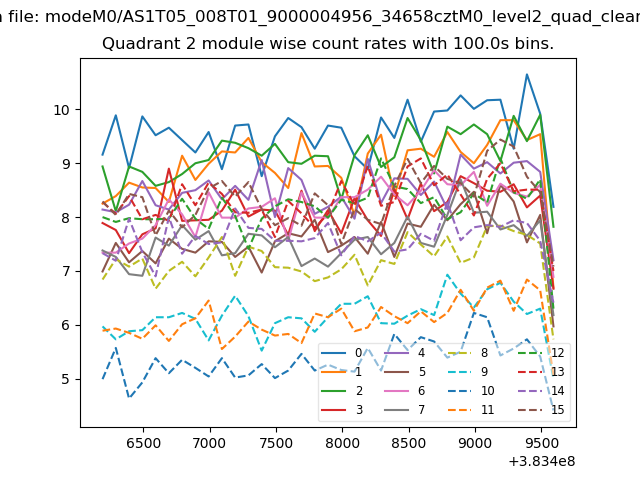

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

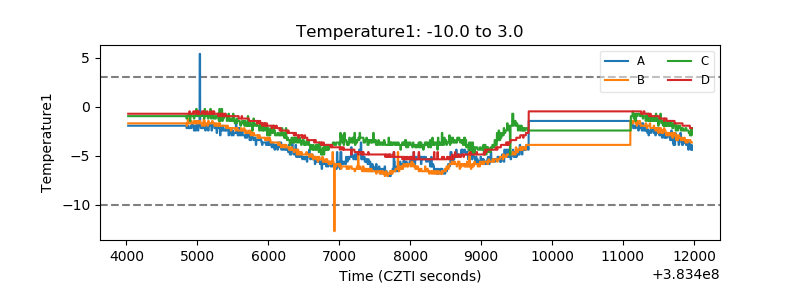

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

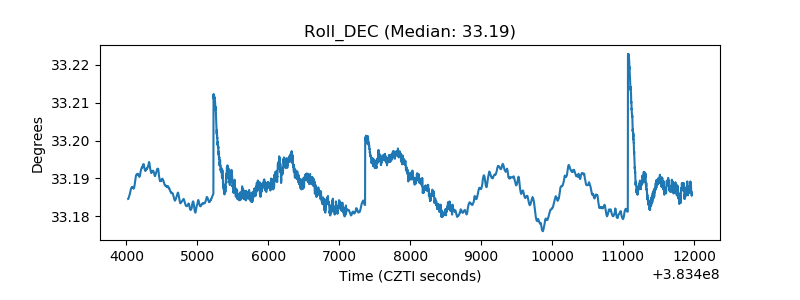

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
