| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_008T01_9000004956_34665cztM0_level2.evt | modeM0/AS1T05_008T01_9000004956_34665cztM0_level2_quad_clean.evt |
| Size (bytes) | 343,707,840 | 50,088,960 |
| Size | 327.8 MB | 47.8 MB |
| Events in quadrant A | 1,883,111 | 313,080 |
| Events in quadrant B | 2,892,518 | 301,456 |
| Events in quadrant C | 2,027,157 | 316,836 |
| Events in quadrant D | 3,330,953 | 299,840 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8315 | 1 |
| B | 0 | 11294 | 1 |
| C | 0 | 8521 | 1 |
| D | 0 | 12694 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4044 | 14 | 0.346192% |
| B | 4044 | 347 | 8.580613% |
| C | 4044 | 20 | 0.494560% |
| D | 4044 | 219 | 5.415430% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

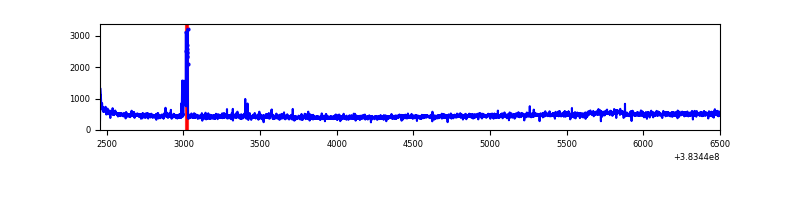

| A | 4044 | 4044 | 10 | 10 | 0.25% | 0.25% |  |
| B | 4044 | 4044 | 250 | 250 | 6.18% | 6.18% |  |

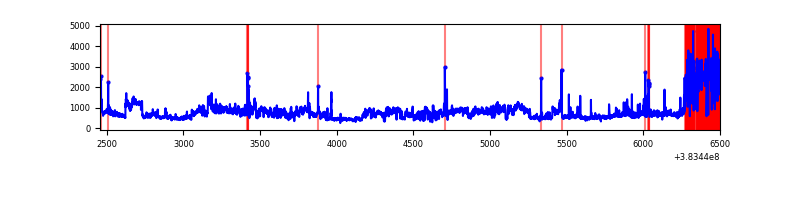

| C | 4044 | 4044 | 15 | 15 | 0.37% | 0.37% |  |
| D | 4044 | 4044 | 192 | 192 | 4.75% | 4.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 43778 | 467.47 | 456 | 448 | 92.7 |
| A | 13 | 6 | 27175 | 288.34 | 456 | 448 | 92.7 |
| A | 10 | 83 | 25782 | 273.32 | 456 | 448 | 92.7 |
| B | 5 | 172 | 834494 | 9876.97 | 439 | 428 | 84.4 |
| B | 5 | 255 | 258846 | 3060.17 | 439 | 428 | 84.4 |
| B | 5 | 200 | 29872 | 348.67 | 439 | 428 | 84.4 |
| C | 15 | 214 | 168087 | 1644.23 | 440 | 442 | 102.0 |
| C | 0 | 10 | 80216 | 782.41 | 440 | 442 | 102.0 |
| C | 14 | 67 | 40422 | 392.12 | 440 | 442 | 102.0 |
| D | 8 | 195 | 1051602 | 10045.91 | 424 | 411 | 104.6 |
| D | 12 | 233 | 454652 | 4341.04 | 424 | 411 | 104.6 |
| D | 10 | 199 | 60303 | 572.37 | 424 | 411 | 104.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

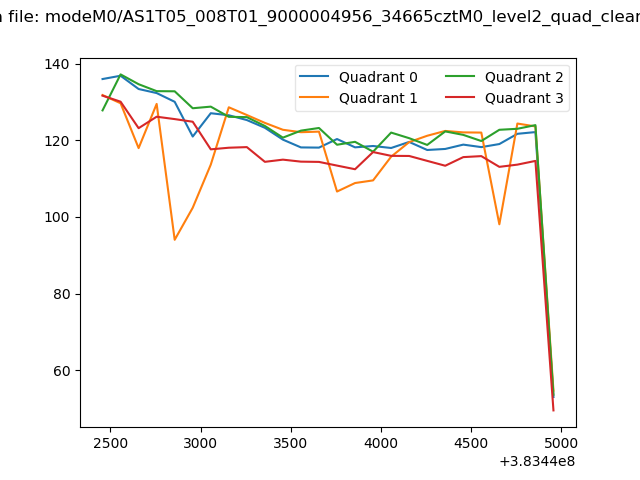

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

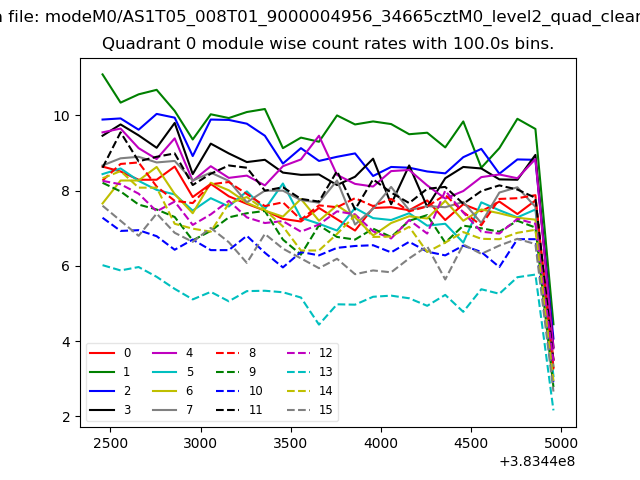

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

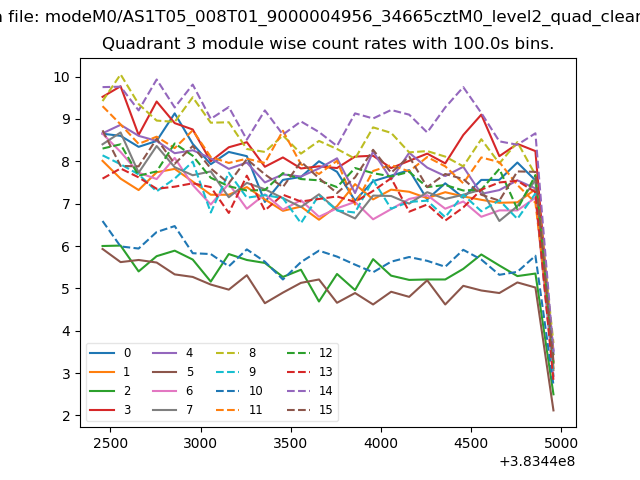

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

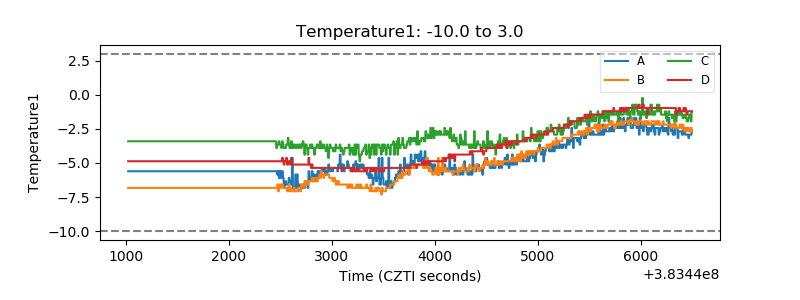

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

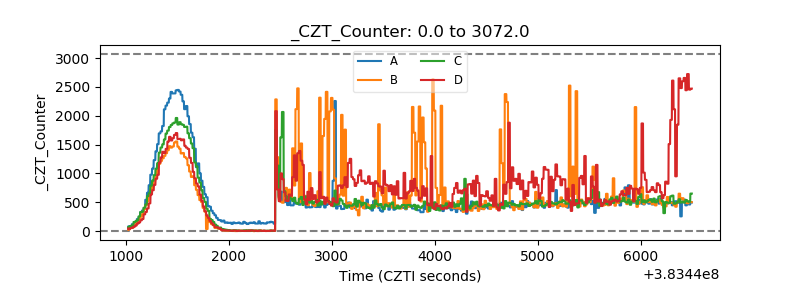

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

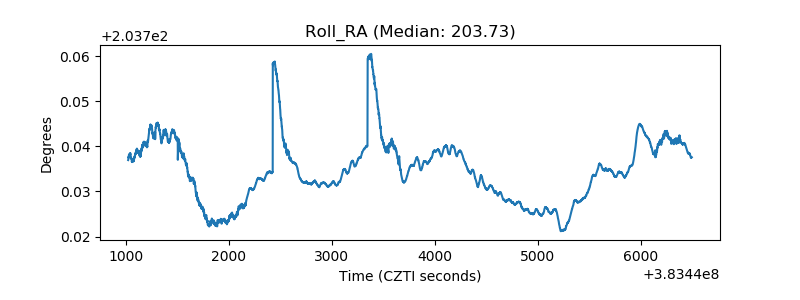

| _Roll_RA |  |
| Veto Counter |  |
