| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T06_9000004958_34671cztM0_level2.evt | modeM0/AS1A11_065T06_9000004958_34671cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,114,880 | 87,425,280 |
| Size | 537.0 MB | 83.4 MB |
| Events in quadrant A | 4,824,174 | 568,749 |
| Events in quadrant B | 3,746,125 | 591,069 |
| Events in quadrant C | 2,909,123 | 583,893 |
| Events in quadrant D | 5,224,888 | 540,831 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17946 | 3 |
| B | 0 | 14375 | 2 |
| C | 0 | 11490 | 2 |
| D | 0 | 19204 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5176 | 350 | 6.761978% |
| B | 5176 | 338 | 6.530139% |
| C | 5176 | 87 | 1.680835% |
| D | 5176 | 252 | 4.868624% |

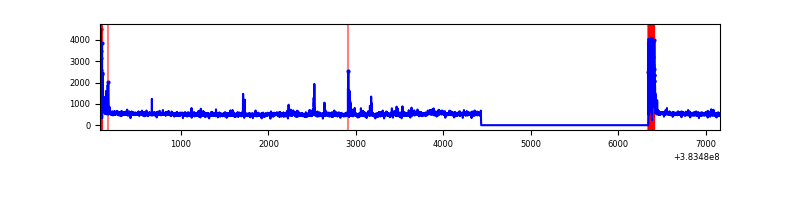

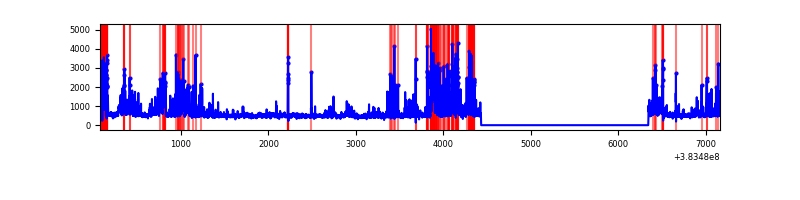

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7089 | 5177 | 233 | 233 | 3.29% | 4.50% |  |
| B | 7089 | 5177 | 214 | 214 | 3.02% | 4.13% |  |
| C | 7089 | 5177 | 60 | 60 | 0.85% | 1.16% |  |
| D | 7089 | 5176 | 206 | 206 | 2.91% | 3.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2362101 | 19218.12 | 609 | 597 | 122.9 |
| A | 10 | 83 | 46025 | 369.7 | 609 | 597 | 122.9 |
| A | 9 | 143 | 30886 | 246.49 | 609 | 597 | 122.9 |
| B | 5 | 172 | 696677 | 5987.35 | 604 | 590 | 116.3 |
| B | 5 | 255 | 379047 | 3255.27 | 604 | 590 | 116.3 |
| B | 3 | 112 | 139349 | 1193.53 | 604 | 590 | 116.3 |
| C | 0 | 10 | 234243 | 1694.05 | 595 | 600 | 137.9 |
| C | 15 | 214 | 224210 | 1621.31 | 595 | 600 | 137.9 |
| C | 14 | 67 | 76543 | 550.63 | 595 | 600 | 137.9 |
| D | 8 | 195 | 1795070 | 11279.93 | 585 | 574 | 159.1 |
| D | 2 | 249 | 186286 | 1167.36 | 585 | 574 | 159.1 |
| D | 7 | 38 | 182640 | 1144.44 | 585 | 574 | 159.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

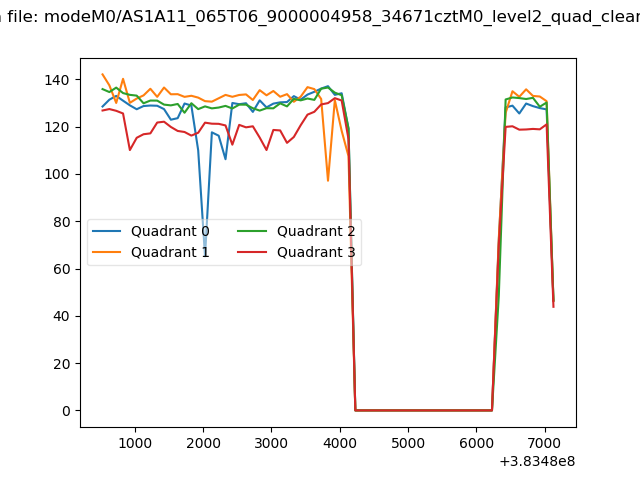

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

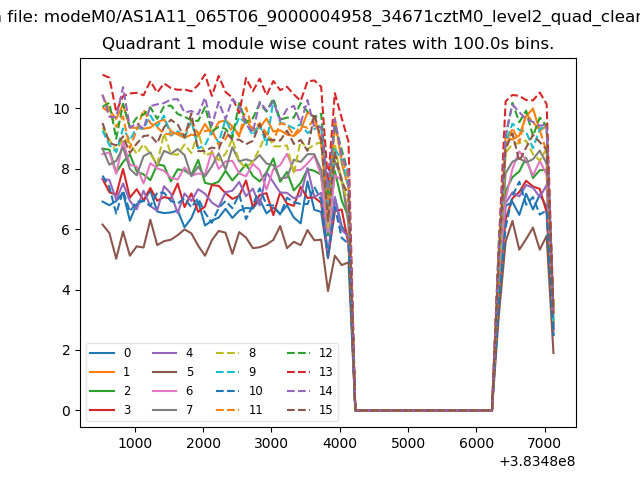

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

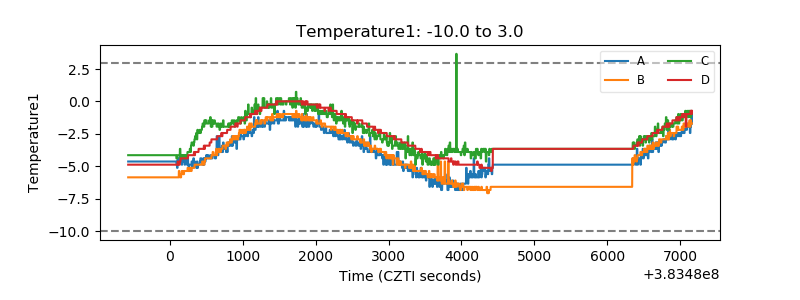

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

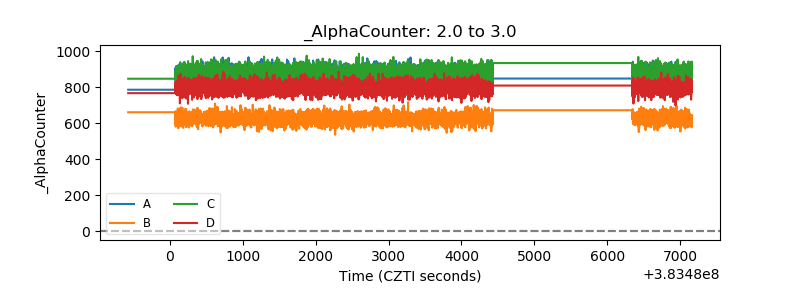

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

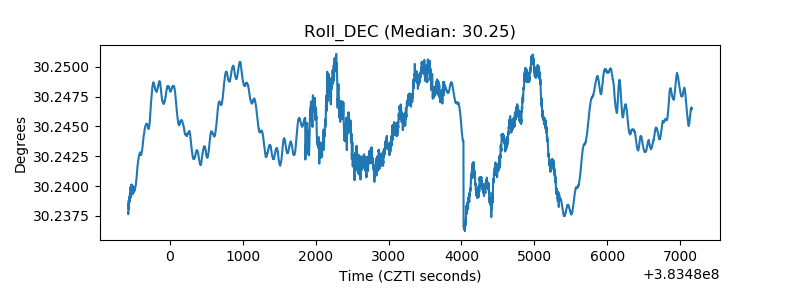

| _Roll_DEC |  |

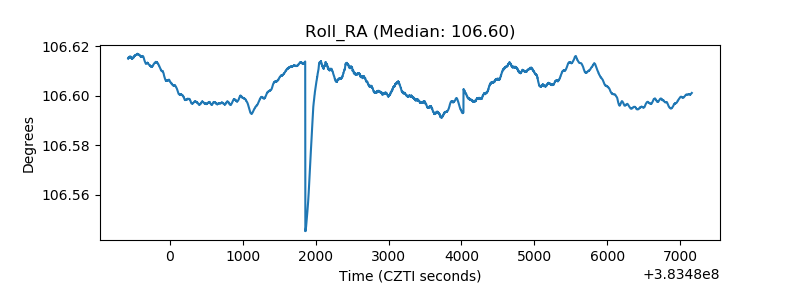

| _Roll_RA |  |
| Veto Counter |  |
