| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T13_9000004960_34672cztM0_level2.evt | modeM0/AS1A11_065T13_9000004960_34672cztM0_level2_quad_clean.evt |
| Size (bytes) | 185,492,160 | 25,050,240 |
| Size | 176.9 MB | 23.9 MB |
| Events in quadrant A | 1,269,906 | 154,581 |
| Events in quadrant B | 1,308,508 | 157,743 |
| Events in quadrant C | 1,238,658 | 153,652 |
| Events in quadrant D | 1,658,896 | 142,792 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5082 | 2 |
| B | 0 | 5156 | 1 |
| C | 0 | 4863 | 1 |
| D | 0 | 6369 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2045 | 39 | 1.907090% |
| B | 2045 | 70 | 3.422983% |
| C | 2045 | 18 | 0.880196% |
| D | 2045 | 50 | 2.444988% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

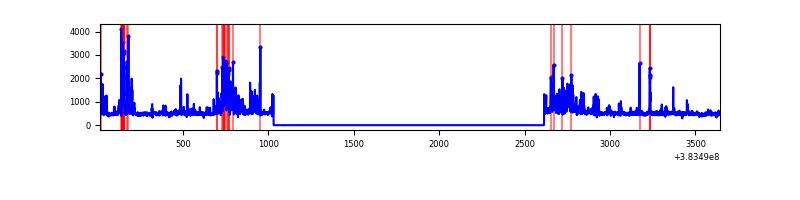

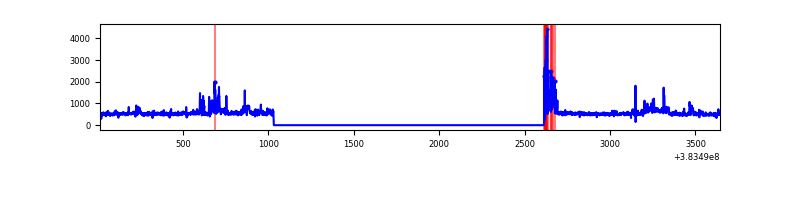

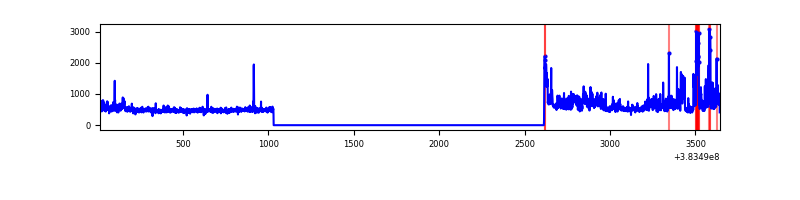

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3628 | 2046 | 19 | 19 | 0.52% | 0.93% |  |
| B | 3628 | 2046 | 37 | 37 | 1.02% | 1.81% |  |
| C | 3628 | 2046 | 17 | 17 | 0.47% | 0.83% |  |
| D | 3628 | 2046 | 32 | 32 | 0.88% | 1.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 266807 | 5192.63 | 245 | 240 | 51.3 |
| A | 10 | 83 | 22076 | 425.36 | 245 | 240 | 51.3 |
| A | 9 | 143 | 16408 | 314.95 | 245 | 240 | 51.3 |
| B | 5 | 172 | 174179 | 3535.37 | 244 | 237 | 49.2 |
| B | 5 | 255 | 144782 | 2937.87 | 244 | 237 | 49.2 |
| B | 0 | 190 | 10867 | 216.05 | 244 | 237 | 49.2 |
| C | 14 | 67 | 139960 | 2462.85 | 238 | 240 | 56.7 |
| C | 15 | 214 | 88567 | 1556.95 | 238 | 240 | 56.7 |
| C | 0 | 10 | 70528 | 1238.97 | 238 | 240 | 56.7 |
| D | 8 | 195 | 494441 | 8217.19 | 236 | 228 | 60.1 |
| D | 2 | 249 | 71906 | 1191.78 | 236 | 228 | 60.1 |
| D | 12 | 233 | 35357 | 584.08 | 236 | 228 | 60.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

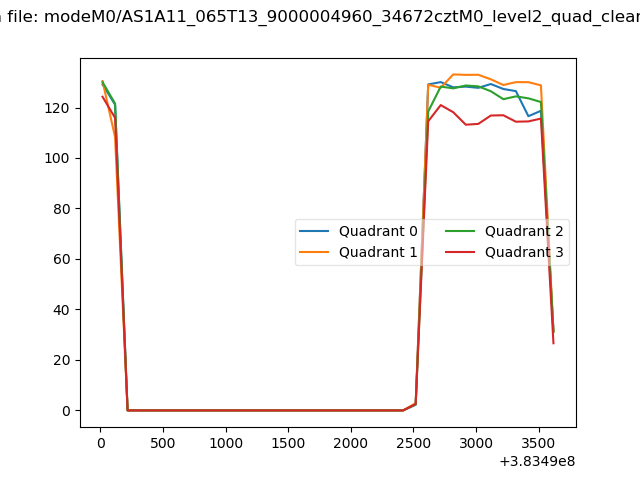

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

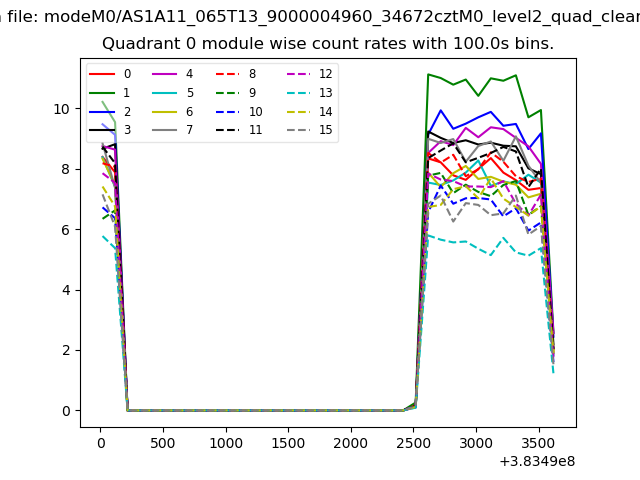

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

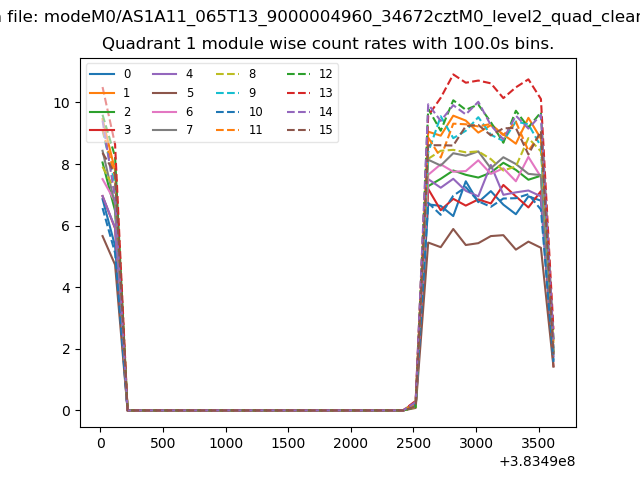

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

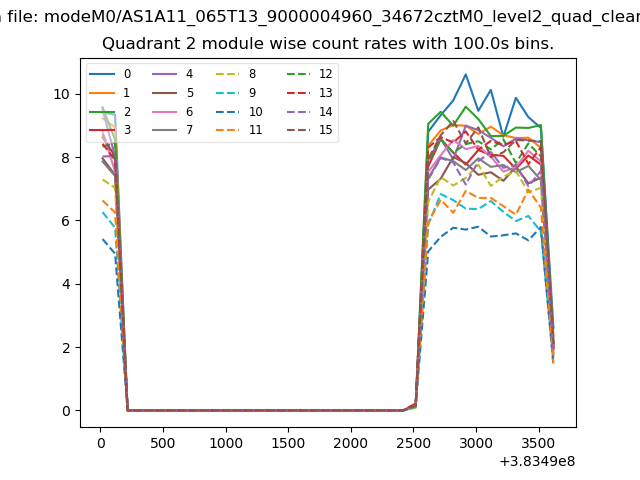

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

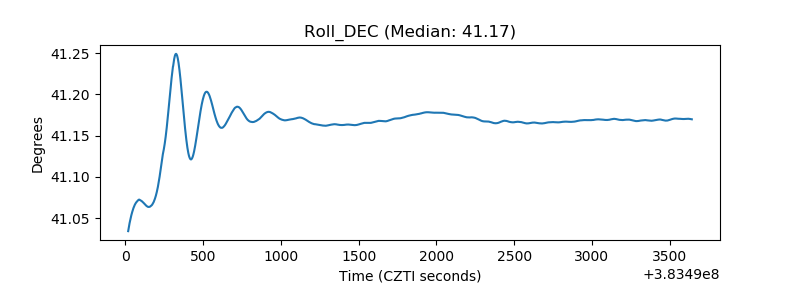

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
