| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T13_9000004960_34673cztM0_level2.evt | modeM0/AS1A11_065T13_9000004960_34673cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,508,800 | 83,655,360 |
| Size | 555.5 MB | 79.8 MB |
| Events in quadrant A | 3,125,563 | 558,876 |
| Events in quadrant B | 3,980,958 | 555,913 |
| Events in quadrant C | 3,159,317 | 542,424 |
| Events in quadrant D | 6,975,212 | 462,558 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13176 | 3 |
| B | 0 | 15583 | 2 |
| C | 0 | 12805 | 2 |
| D | 0 | 24841 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5908 | 53 | 0.897089% |
| B | 5908 | 348 | 5.890318% |
| C | 5908 | 56 | 0.947867% |
| D | 5909 | 900 | 15.231004% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 5909 | 26 | 26 | 0.36% | 0.44% |  |
| B | 7251 | 5909 | 209 | 209 | 2.88% | 3.54% |  |
| C | 7251 | 5909 | 39 | 39 | 0.54% | 0.66% |  |
| D | 7252 | 5910 | 749 | 749 | 10.33% | 12.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 363417 | 2614.06 | 683 | 669 | 138.8 |
| A | 10 | 83 | 50890 | 361.91 | 683 | 669 | 138.8 |
| A | 9 | 143 | 31490 | 222.1 | 683 | 669 | 138.8 |
| B | 5 | 172 | 961174 | 7598.03 | 666 | 649 | 126.4 |
| B | 5 | 255 | 251487 | 1984.2 | 666 | 649 | 126.4 |
| B | 0 | 190 | 57445 | 449.27 | 666 | 649 | 126.4 |
| C | 15 | 214 | 253215 | 1646.1 | 660 | 664 | 153.4 |
| C | 14 | 67 | 158264 | 1027.22 | 660 | 664 | 153.4 |
| C | 0 | 10 | 153932 | 998.99 | 660 | 664 | 153.4 |
| D | 8 | 195 | 1944539 | 11768.14 | 614 | 600 | 165.2 |
| D | 7 | 38 | 1528844 | 9251.63 | 614 | 600 | 165.2 |
| D | 2 | 249 | 248637 | 1501.56 | 614 | 600 | 165.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

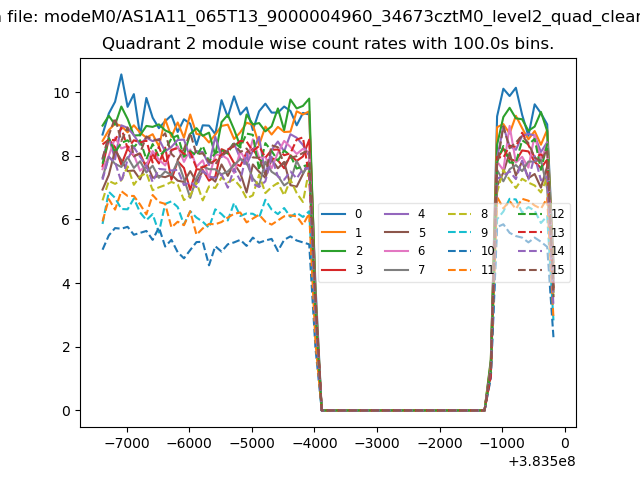

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

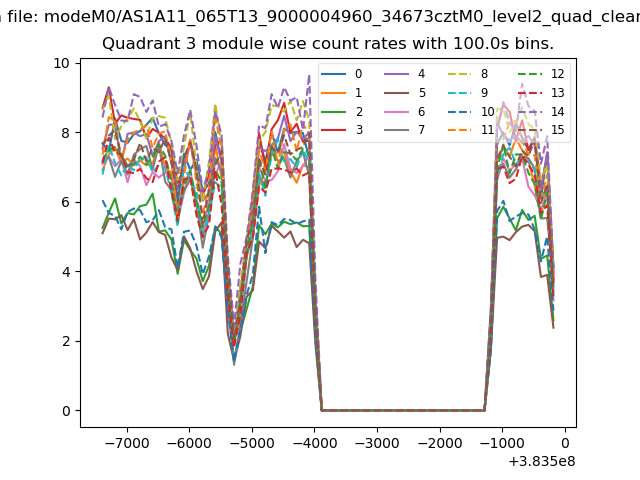

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

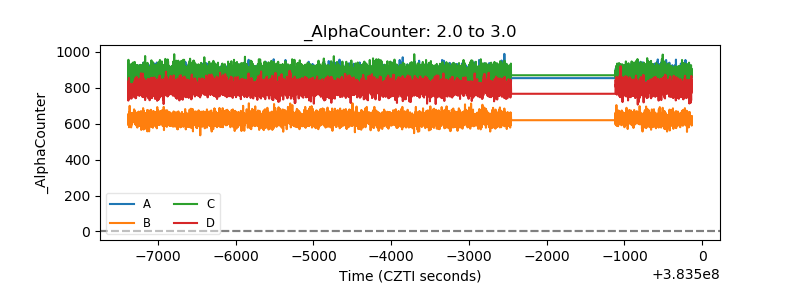

| Alpha Counter |  |
| _CPM_Rate |  |

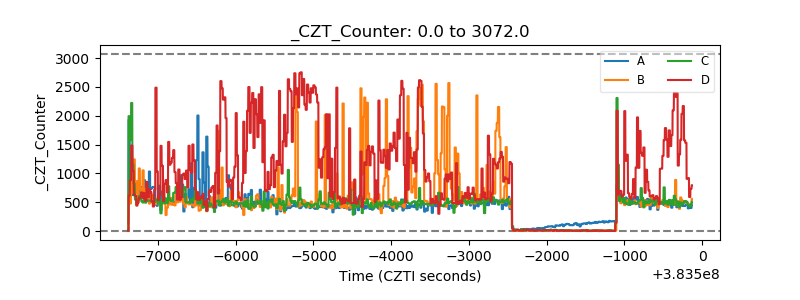

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

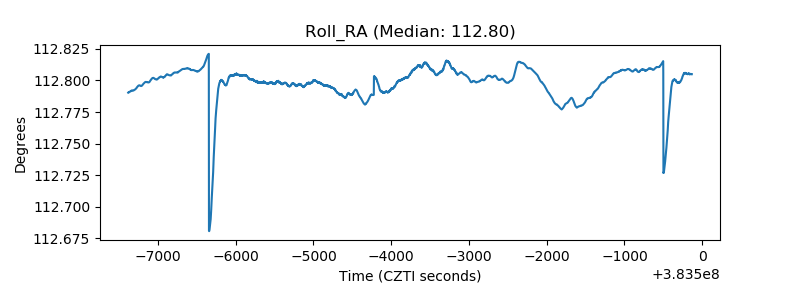

| _Roll_RA |  |

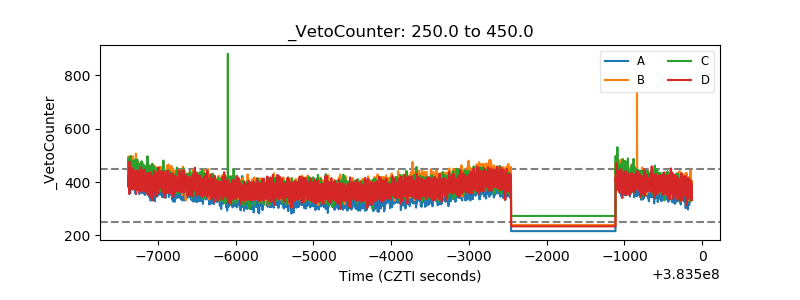

| Veto Counter |  |
