| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T13_9000004960_34674cztM0_level2.evt | modeM0/AS1A11_065T13_9000004960_34674cztM0_level2_quad_clean.evt |
| Size (bytes) | 592,488,000 | 76,233,600 |
| Size | 565.0 MB | 72.7 MB |
| Events in quadrant A | 3,304,627 | 497,157 |
| Events in quadrant B | 4,151,508 | 497,561 |
| Events in quadrant C | 3,087,793 | 483,560 |
| Events in quadrant D | 6,997,867 | 415,032 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13653 | 3 |
| B | 0 | 16267 | 2 |
| C | 0 | 12648 | 2 |
| D | 0 | 24970 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5932 | 164 | 2.764666% |
| B | 5932 | 360 | 6.068780% |
| C | 5932 | 64 | 1.078894% |
| D | 5932 | 861 | 14.514498% |

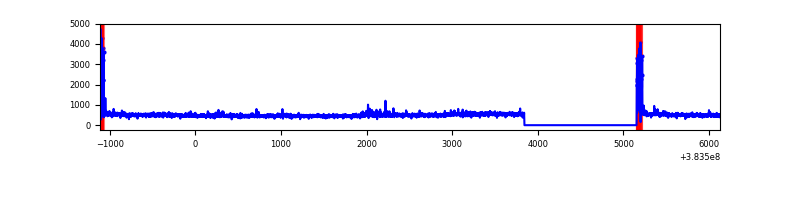

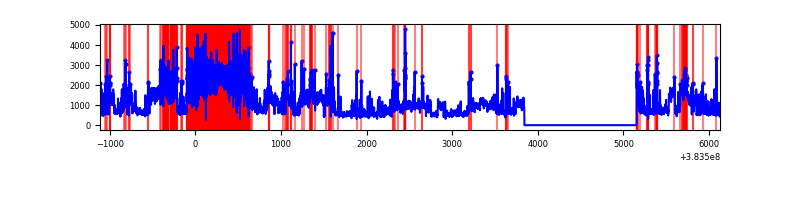

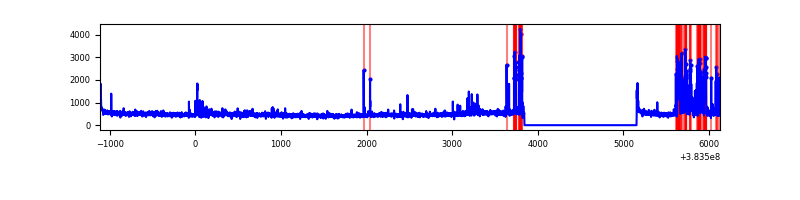

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7244 | 5933 | 101 | 101 | 1.39% | 1.70% |  |
| B | 7244 | 5933 | 186 | 186 | 2.57% | 3.14% |  |
| C | 7244 | 5933 | 40 | 40 | 0.55% | 0.67% |  |
| D | 7244 | 5933 | 745 | 745 | 10.28% | 12.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 541050 | 3943.41 | 679 | 667 | 137.0 |
| A | 10 | 83 | 52025 | 374.78 | 679 | 667 | 137.0 |
| A | 7 | 48 | 39538 | 283.66 | 679 | 667 | 137.0 |
| B | 5 | 172 | 948663 | 7481.02 | 666 | 648 | 126.7 |
| B | 5 | 255 | 387172 | 3050.16 | 666 | 648 | 126.7 |
| B | 0 | 190 | 97939 | 767.75 | 666 | 648 | 126.7 |
| C | 15 | 214 | 256223 | 1660.2 | 661 | 664 | 153.9 |
| C | 0 | 10 | 164649 | 1065.3 | 661 | 664 | 153.9 |
| C | 14 | 67 | 65635 | 422.07 | 661 | 664 | 153.9 |
| D | 8 | 195 | 2205110 | 13402.08 | 625 | 609 | 164.5 |
| D | 7 | 38 | 1400406 | 8509.95 | 625 | 609 | 164.5 |
| D | 2 | 249 | 265459 | 1610.13 | 625 | 609 | 164.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

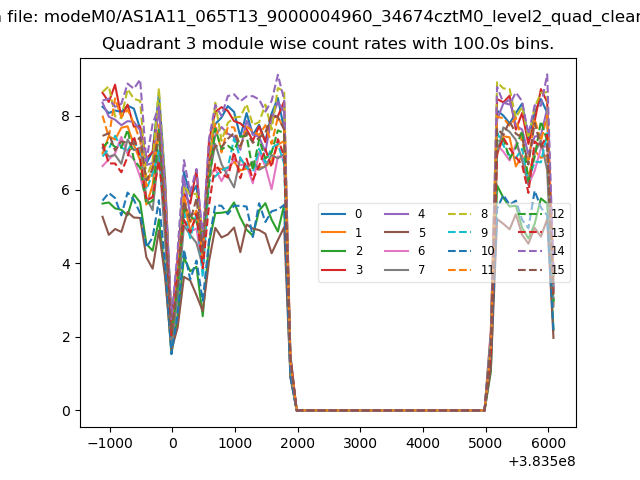

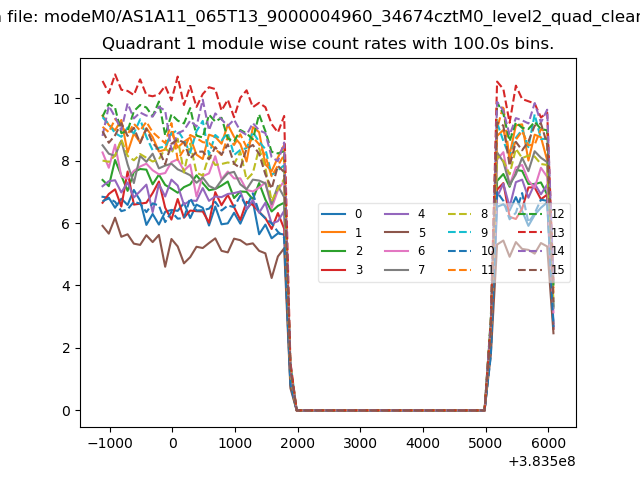

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

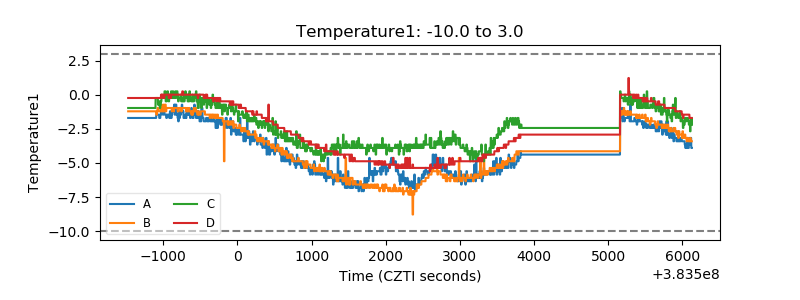

| Temperature 1 |  |
| Veto HV Monitor |  |

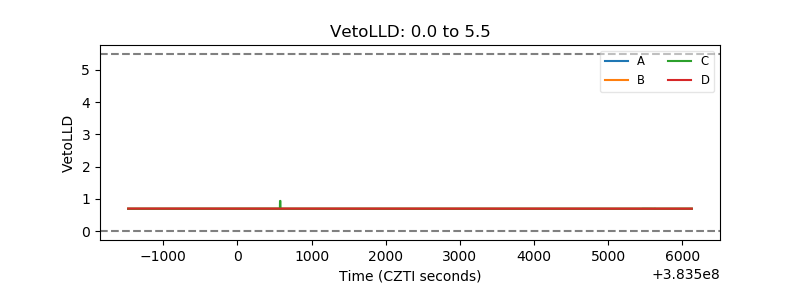

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

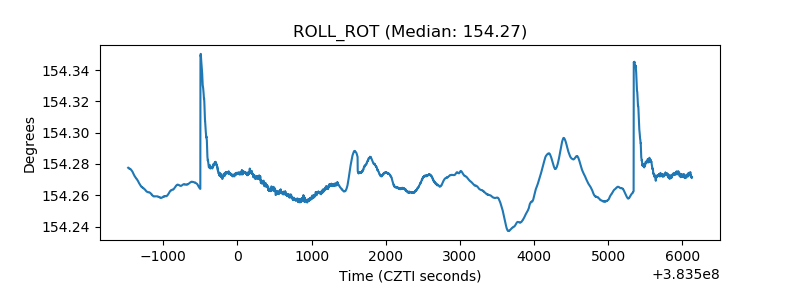

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
