| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_078T01_9000004962_34676cztM0_level2.evt | modeM0/AS1T04_078T01_9000004962_34676cztM0_level2_quad_clean.evt |
| Size (bytes) | 341,651,520 | 47,681,280 |
| Size | 325.8 MB | 45.5 MB |
| Events in quadrant A | 1,847,804 | 299,661 |
| Events in quadrant B | 2,722,765 | 294,121 |
| Events in quadrant C | 2,043,035 | 301,744 |
| Events in quadrant D | 3,476,814 | 281,494 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7945 | 2 |
| B | 0 | 10569 | 1 |
| C | 0 | 8335 | 1 |
| D | 0 | 12984 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3765 | 18 | 0.478088% |
| B | 3765 | 285 | 7.569721% |
| C | 3765 | 27 | 0.717131% |
| D | 3765 | 146 | 3.877822% |

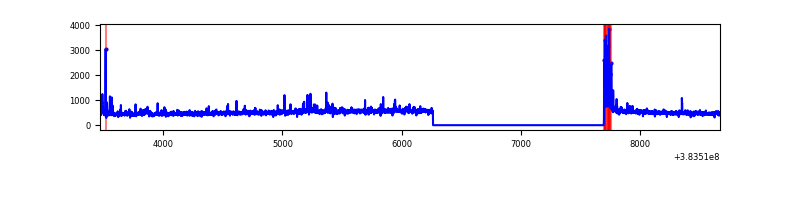

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5198 | 3766 | 4 | 4 | 0.08% | 0.11% |  |
| B | 5198 | 3766 | 182 | 182 | 3.50% | 4.83% |  |
| C | 5198 | 3766 | 19 | 19 | 0.37% | 0.50% |  |
| D | 5198 | 3766 | 94 | 94 | 1.81% | 2.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 45834 | 498.35 | 447 | 439 | 91.1 |
| A | 10 | 83 | 25768 | 278.06 | 447 | 439 | 91.1 |
| A | 9 | 143 | 18056 | 193.4 | 447 | 439 | 91.1 |
| B | 5 | 172 | 744101 | 8824.35 | 430 | 419 | 84.3 |
| B | 5 | 255 | 158392 | 1874.47 | 430 | 419 | 84.3 |
| B | 0 | 190 | 62561 | 737.36 | 430 | 419 | 84.3 |
| C | 15 | 214 | 158585 | 1554.78 | 431 | 434 | 101.7 |
| C | 14 | 67 | 110216 | 1079.27 | 431 | 434 | 101.7 |
| C | 0 | 10 | 75591 | 738.87 | 431 | 434 | 101.7 |
| D | 8 | 195 | 1101578 | 10475.61 | 428 | 417 | 105.1 |
| D | 7 | 223 | 141619 | 1343.29 | 428 | 417 | 105.1 |
| D | 13 | 249 | 118050 | 1119.07 | 428 | 417 | 105.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

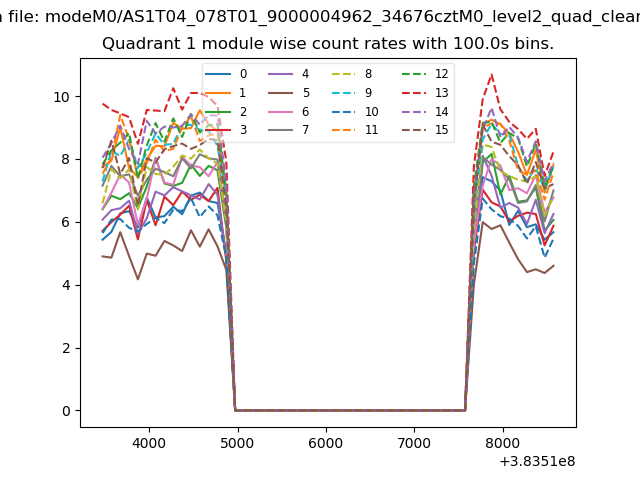

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

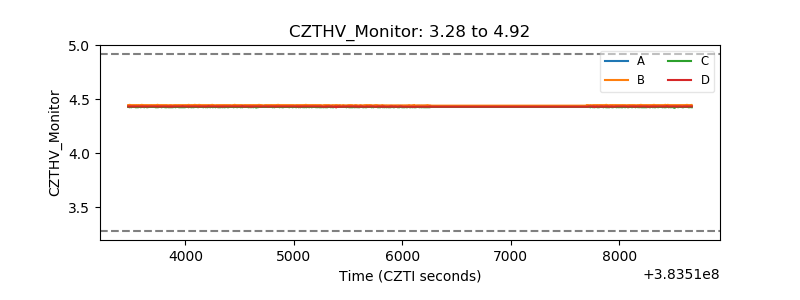

| CZT HV Monitor |  |
| D_VDD |  |

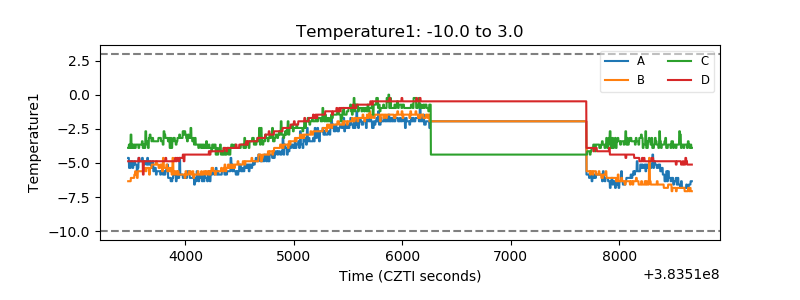

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

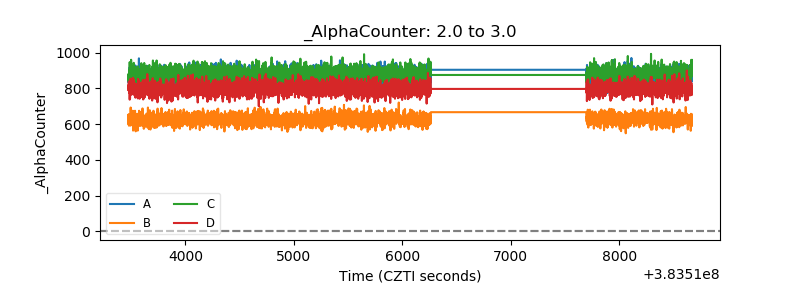

| Alpha Counter |  |
| _CPM_Rate |  |

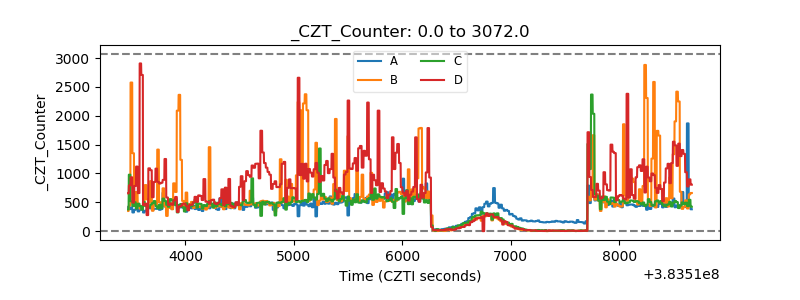

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

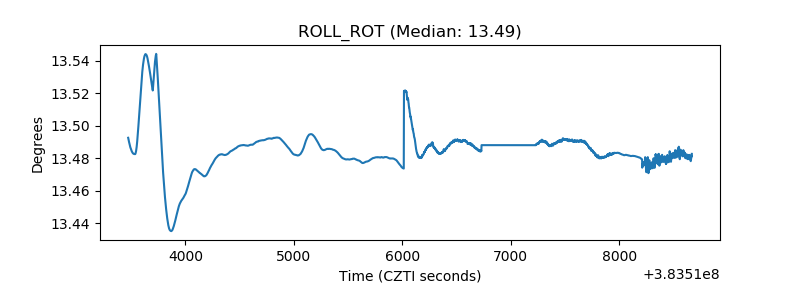

| _ROLL_ROT |  |

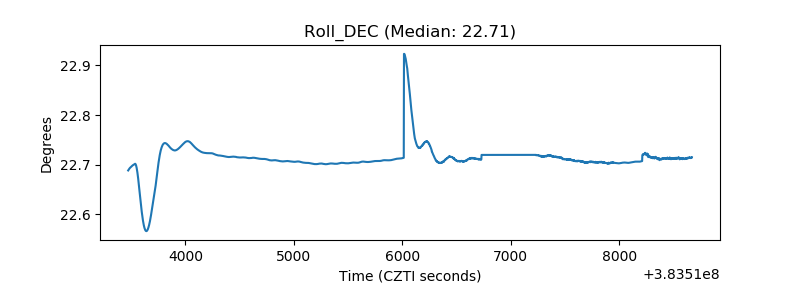

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
