| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_093T29_9000004968_34694cztM0_level2.evt | modeM0/AS1A07_093T29_9000004968_34694cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,591,680 | 68,149,440 |
| Size | 445.0 MB | 65.0 MB |
| Events in quadrant A | 2,684,965 | 436,086 |
| Events in quadrant B | 4,528,632 | 405,747 |
| Events in quadrant C | 2,740,724 | 440,107 |
| Events in quadrant D | 3,822,568 | 416,054 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11498 | 2 |
| B | 0 | 16873 | 2 |
| C | 0 | 11308 | 2 |
| D | 0 | 14938 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5215 | 22 | 0.421860% |
| B | 5215 | 681 | 13.058485% |
| C | 5215 | 67 | 1.284756% |
| D | 5215 | 94 | 1.802493% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6827 | 5216 | 6 | 6 | 0.09% | 0.12% |  |
| B | 6827 | 5216 | 453 | 453 | 6.64% | 8.68% |  |
| C | 6827 | 5216 | 51 | 51 | 0.75% | 0.98% |  |
| D | 6827 | 5216 | 47 | 47 | 0.69% | 0.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 299207 | 2479.65 | 596 | 584 | 120.4 |
| A | 10 | 83 | 45643 | 374.15 | 596 | 584 | 120.4 |
| A | 13 | 6 | 10517 | 82.48 | 596 | 584 | 120.4 |
| B | 5 | 172 | 2003507 | 18434.48 | 561 | 548 | 108.7 |
| B | 5 | 255 | 253626 | 2329.23 | 561 | 548 | 108.7 |
| B | 4 | 171 | 15529 | 137.88 | 561 | 548 | 108.7 |
| C | 15 | 214 | 221397 | 1619.79 | 581 | 583 | 136.3 |
| C | 0 | 10 | 185494 | 1356.42 | 581 | 583 | 136.3 |
| C | 14 | 67 | 51626 | 374.43 | 581 | 583 | 136.3 |
| D | 8 | 195 | 1215289 | 8613.74 | 575 | 558 | 141.0 |
| D | 2 | 250 | 118847 | 838.8 | 575 | 558 | 141.0 |
| D | 2 | 249 | 71351 | 502.0 | 575 | 558 | 141.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

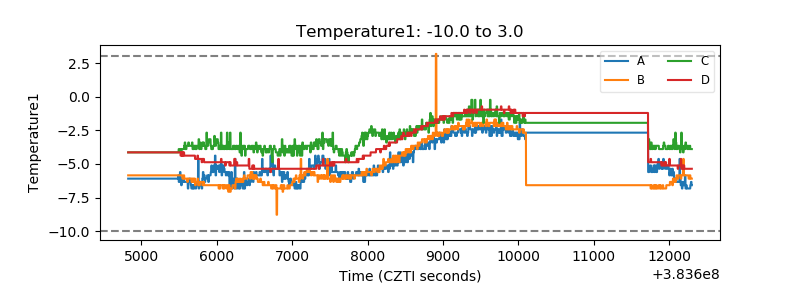

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

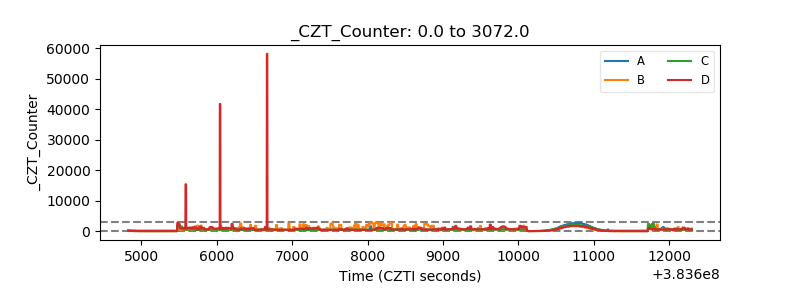

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

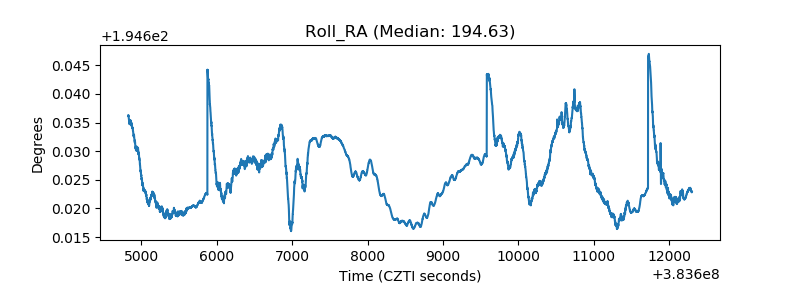

| _Roll_RA |  |
| Veto Counter |  |
