| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_038T36_9000004976_34711cztM0_level2.evt | modeM0/AS1A09_038T36_9000004976_34711cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,665,280 | 116,406,720 |
| Size | 481.3 MB | 111.0 MB |
| Events in quadrant A | 3,901,277 | 776,646 |
| Events in quadrant B | 3,150,692 | 823,412 |
| Events in quadrant C | 3,089,889 | 809,450 |
| Events in quadrant D | 4,791,938 | 753,850 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14668 | 3 |
| B | 0 | 12443 | 2 |
| C | 0 | 12192 | 2 |
| D | 0 | 18028 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5168 | 507 | 9.810372% |
| B | 5168 | 104 | 2.012384% |
| C | 5168 | 93 | 1.799536% |
| D | 5168 | 112 | 2.167183% |

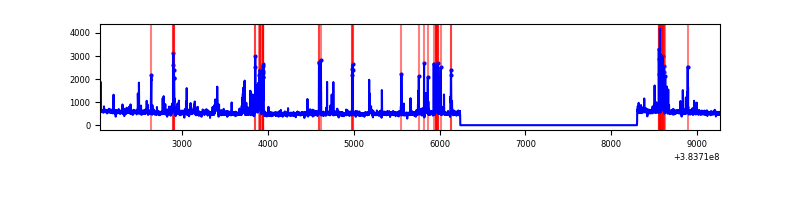

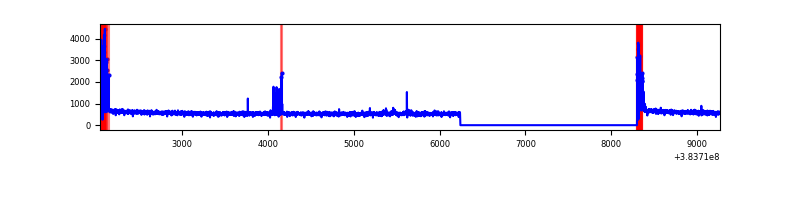

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7231 | 5169 | 474 | 474 | 6.56% | 9.17% |  |
| B | 7231 | 5169 | 64 | 64 | 0.89% | 1.24% |  |
| C | 7231 | 5169 | 66 | 66 | 0.91% | 1.28% |  |
| D | 7231 | 5169 | 97 | 97 | 1.34% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1291605 | 10108.57 | 657 | 647 | 127.7 |
| A | 10 | 83 | 42537 | 328.01 | 657 | 647 | 127.7 |
| A | 9 | 143 | 11539 | 85.28 | 657 | 647 | 127.7 |
| B | 5 | 172 | 279600 | 2265.0 | 671 | 656 | 123.2 |
| B | 0 | 189 | 104685 | 844.71 | 671 | 656 | 123.2 |
| B | 4 | 171 | 69791 | 561.37 | 671 | 656 | 123.2 |
| C | 15 | 214 | 220506 | 1444.56 | 665 | 672 | 152.2 |
| C | 0 | 10 | 211158 | 1383.13 | 665 | 672 | 152.2 |
| C | 15 | 159 | 22947 | 146.37 | 665 | 672 | 152.2 |
| D | 8 | 195 | 1537401 | 8779.37 | 656 | 644 | 175.0 |
| D | 13 | 249 | 209726 | 1194.47 | 656 | 644 | 175.0 |
| D | 12 | 227 | 169202 | 962.96 | 656 | 644 | 175.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

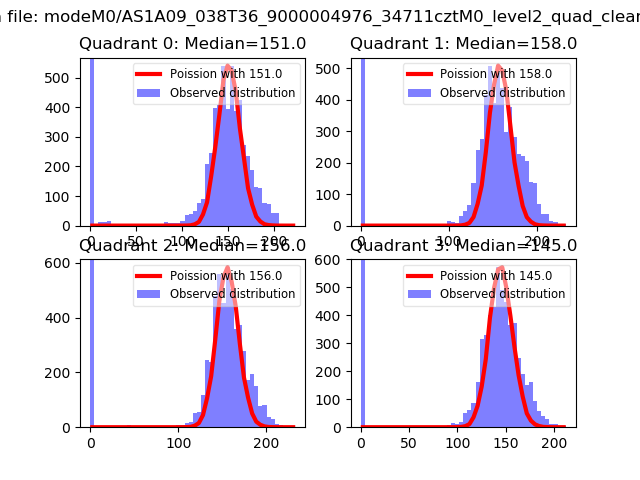

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

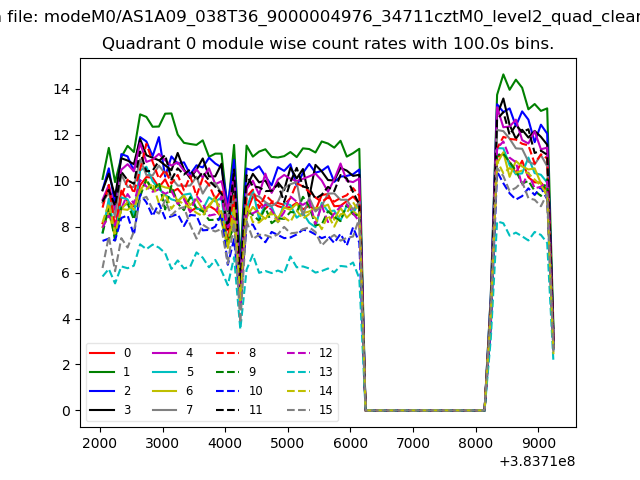

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

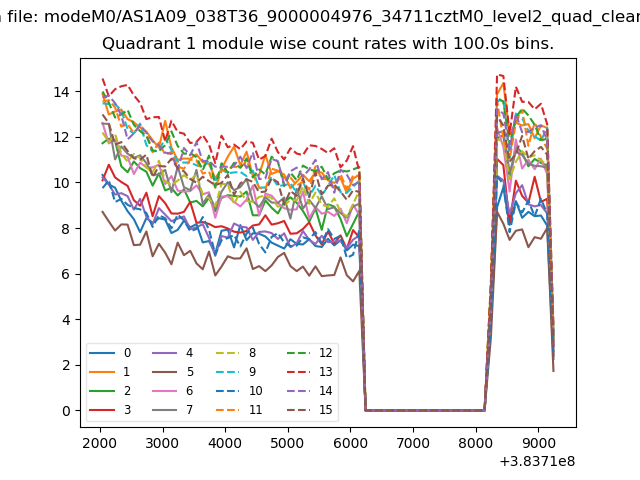

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

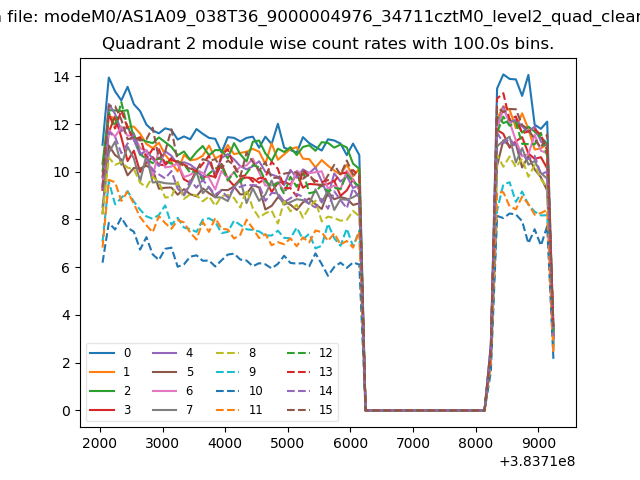

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

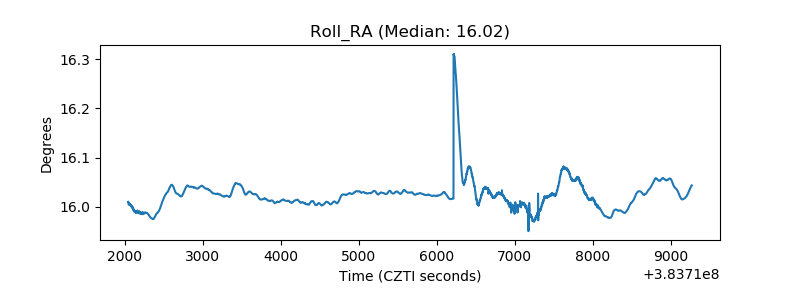

| _Roll_RA |  |

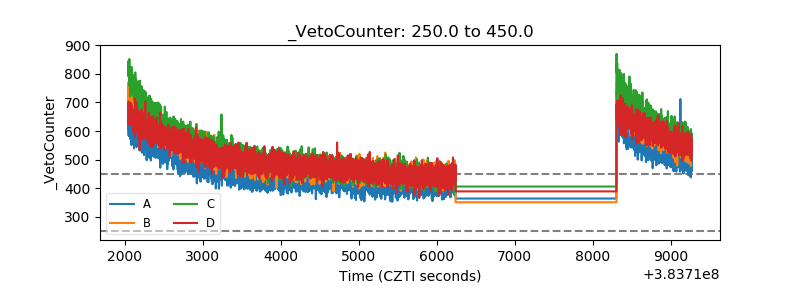

| Veto Counter |  |
