| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000004982_34720cztM0_level2.evt | modeM0/AS1C07_001T01_9000004982_34720cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,338,857,280 | 266,811,840 |
| Size | 1.2 GB | 254.5 MB |
| Events in quadrant A | 9,197,759 | 1,770,419 |
| Events in quadrant B | 8,590,298 | 1,773,875 |
| Events in quadrant C | 7,840,726 | 1,793,138 |
| Events in quadrant D | 13,869,505 | 1,670,010 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37821 | 4 |
| B | 0 | 35803 | 3 |
| C | 0 | 32594 | 3 |
| D | 0 | 52321 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 316 | 0 |
| B | 0 | 316 | 0 |
| C | 0 | 316 | 0 |
| D | 0 | 316 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 0 |
| B | 0 | 50 | 0 |
| C | 0 | 50 | 0 |
| D | 0 | 51 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15571 | 320 | 2.055102% |
| B | 15571 | 334 | 2.145013% |
| C | 15571 | 98 | 0.629375% |
| D | 15571 | 881 | 5.657954% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

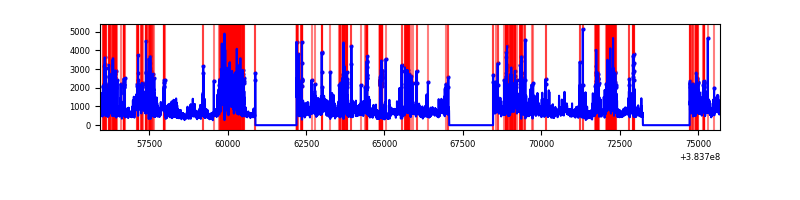

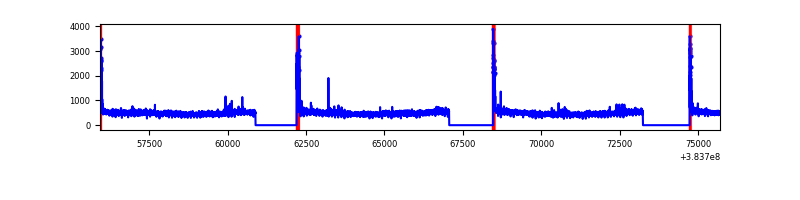

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19779 | 15574 | 172 | 172 | 0.87% | 1.10% |  |
| B | 19779 | 15574 | 242 | 242 | 1.22% | 1.55% |  |
| C | 19779 | 15574 | 61 | 61 | 0.31% | 0.39% |  |
| D | 19779 | 15574 | 799 | 799 | 4.04% | 5.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2027914 | 5789.67 | 1758 | 1725 | 350.0 |
| A | 9 | 143 | 166795 | 471.67 | 1758 | 1725 | 350.0 |
| A | 10 | 83 | 110798 | 311.67 | 1758 | 1725 | 350.0 |
| B | 5 | 172 | 977793 | 2945.48 | 1755 | 1710 | 331.4 |
| B | 4 | 171 | 215284 | 644.49 | 1755 | 1710 | 331.4 |
| B | 4 | 232 | 137429 | 409.55 | 1755 | 1710 | 331.4 |
| C | 15 | 214 | 652909 | 1634.8 | 1733 | 1743 | 398.3 |
| C | 0 | 10 | 271793 | 677.98 | 1733 | 1743 | 398.3 |
| C | 14 | 67 | 103499 | 255.47 | 1733 | 1743 | 398.3 |
| D | 8 | 195 | 2614749 | 5915.4 | 1688 | 1652 | 441.7 |
| D | 2 | 250 | 1839699 | 4160.88 | 1688 | 1652 | 441.7 |
| D | 1 | 20 | 812372 | 1835.27 | 1688 | 1652 | 441.7 |

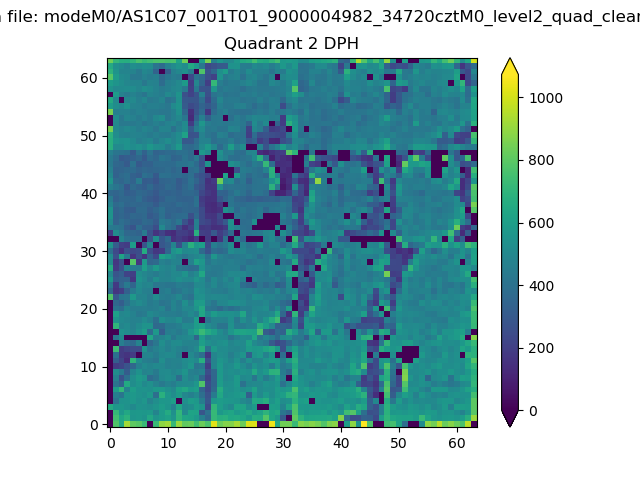

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

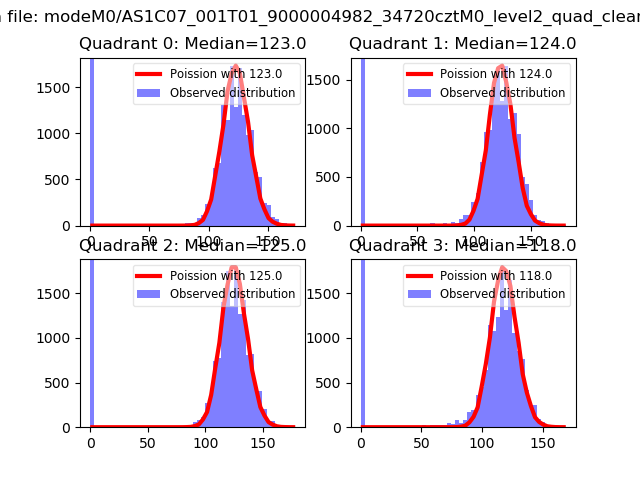

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

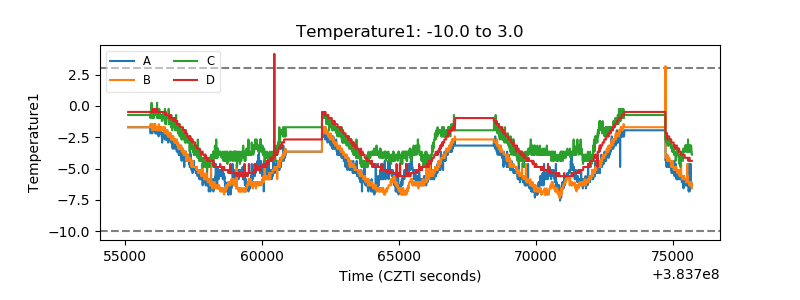

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

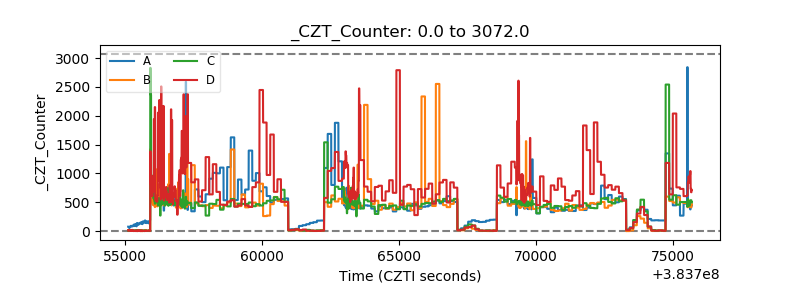

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

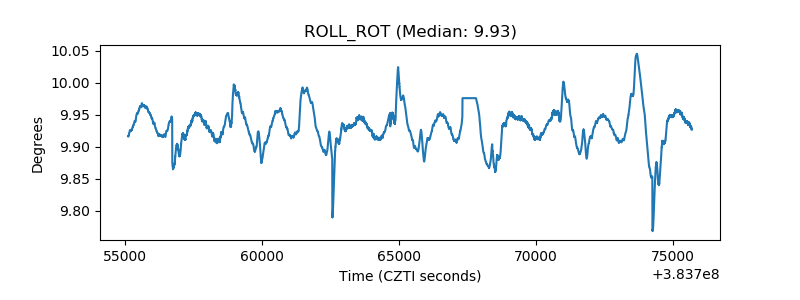

| _ROLL_ROT |  |

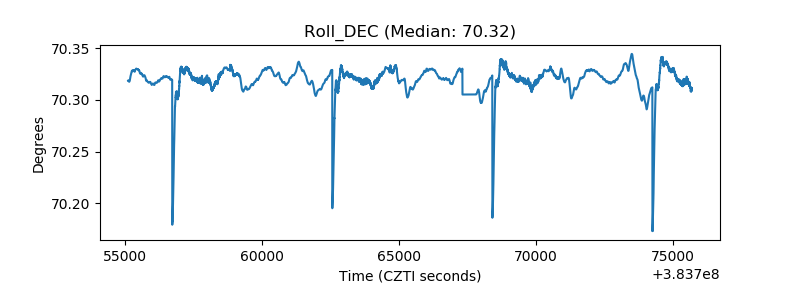

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
