| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_006T02_9000004980_34715cztM0_level2.evt | modeM0/AS1C07_006T02_9000004980_34715cztM0_level2_quad_clean.evt |
| Size (bytes) | 316,866,240 | 39,444,480 |
| Size | 302.2 MB | 37.6 MB |
| Events in quadrant A | 2,093,340 | 233,577 |
| Events in quadrant B | 2,203,185 | 234,752 |
| Events in quadrant C | 2,035,835 | 232,256 |
| Events in quadrant D | 3,001,203 | 220,804 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8584 | 1 |
| B | 0 | 8928 | 1 |
| C | 0 | 8175 | 1 |
| D | 0 | 11520 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3854 | 2 | 0.051894% |
| B | 3854 | 78 | 2.023871% |
| C | 3854 | 26 | 0.674624% |
| D | 3854 | 32 | 0.830306% |

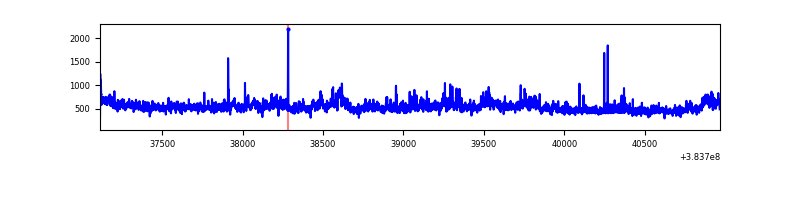

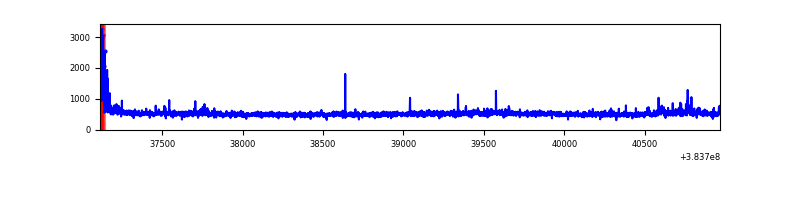

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3854 | 3854 | 1 | 1 | 0.03% | 0.03% |  |
| B | 3854 | 3854 | 51 | 51 | 1.32% | 1.32% |  |
| C | 3854 | 3854 | 16 | 16 | 0.42% | 0.42% |  |
| D | 3854 | 3854 | 32 | 32 | 0.83% | 0.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 225087 | 2439.06 | 456 | 448 | 92.1 |
| A | 7 | 48 | 38458 | 412.7 | 456 | 448 | 92.1 |
| A | 10 | 83 | 28661 | 306.33 | 456 | 448 | 92.1 |
| B | 5 | 172 | 131250 | 1514.71 | 448 | 436 | 86.4 |
| B | 5 | 255 | 106525 | 1228.41 | 448 | 436 | 86.4 |
| B | 4 | 81 | 59317 | 681.79 | 448 | 436 | 86.4 |
| C | 15 | 214 | 165384 | 1608.6 | 442 | 445 | 102.5 |
| C | 0 | 10 | 65891 | 638.28 | 442 | 445 | 102.5 |
| C | 15 | 159 | 52457 | 507.26 | 442 | 445 | 102.5 |
| D | 8 | 195 | 812461 | 7125.4 | 440 | 429 | 114.0 |
| D | 2 | 250 | 112121 | 980.07 | 440 | 429 | 114.0 |
| D | 12 | 233 | 55545 | 483.63 | 440 | 429 | 114.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

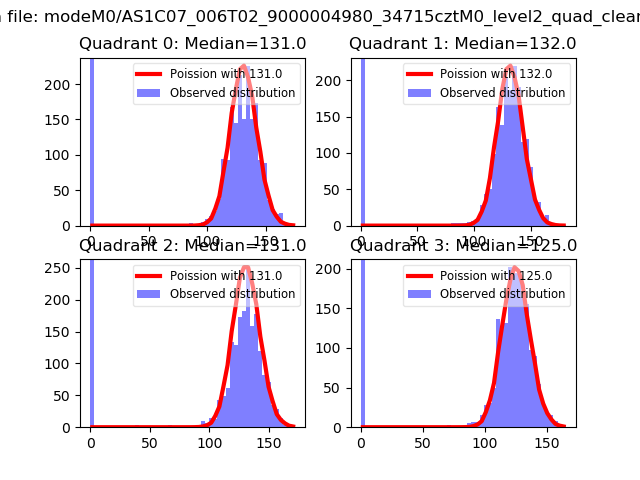

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

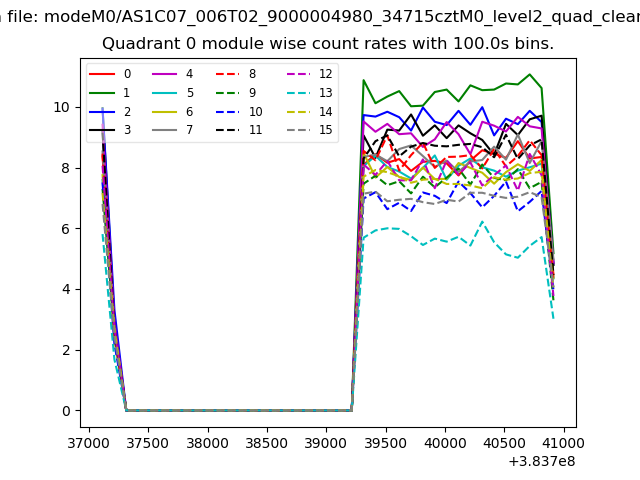

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

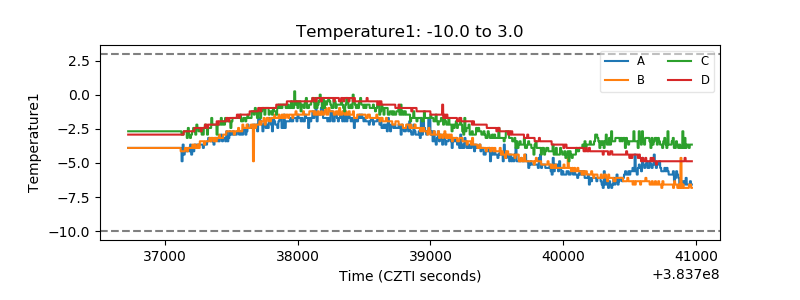

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

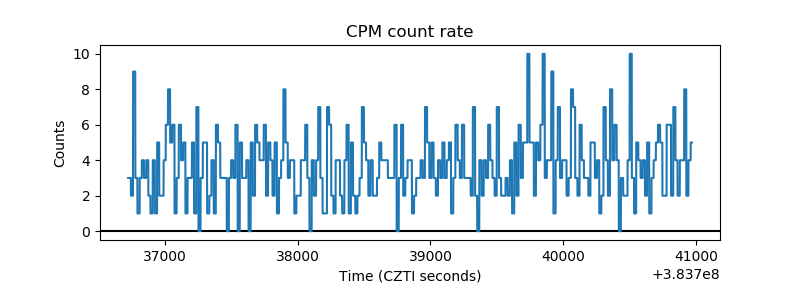

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

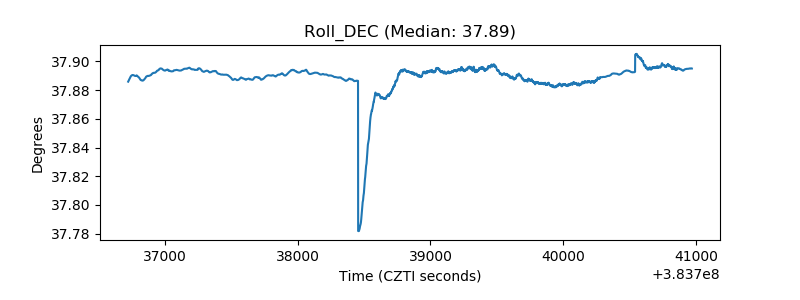

| _Roll_DEC |  |
| _Roll_RA |  |

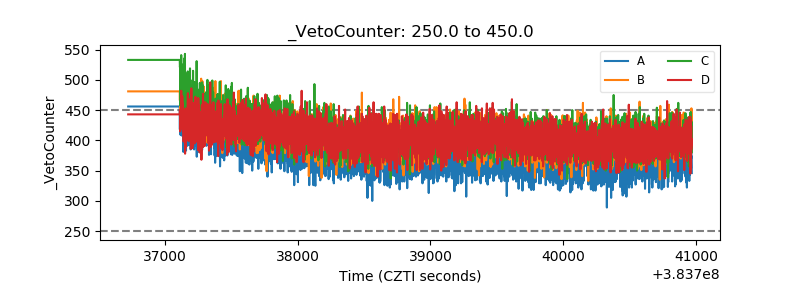

| Veto Counter |  |
