| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T38_9000004988_34749cztM0_level2.evt | modeM0/AS1A10_094T38_9000004988_34749cztM0_level2_quad_clean.evt |
| Size (bytes) | 321,972,480 | 55,529,280 |
| Size | 307.1 MB | 53.0 MB |
| Events in quadrant A | 1,715,881 | 367,299 |
| Events in quadrant B | 2,163,809 | 361,705 |
| Events in quadrant C | 1,861,854 | 359,240 |
| Events in quadrant D | 3,759,394 | 333,663 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7547 | 1 |
| B | 0 | 8848 | 1 |
| C | 0 | 7858 | 1 |
| D | 0 | 13698 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 74 | 0 |
| B | 0 | 74 | 0 |
| C | 0 | 74 | 0 |
| D | 0 | 74 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3669 | 6 | 0.163532% |
| B | 3669 | 150 | 4.088307% |
| C | 3669 | 28 | 0.763151% |
| D | 3669 | 451 | 12.292178% |

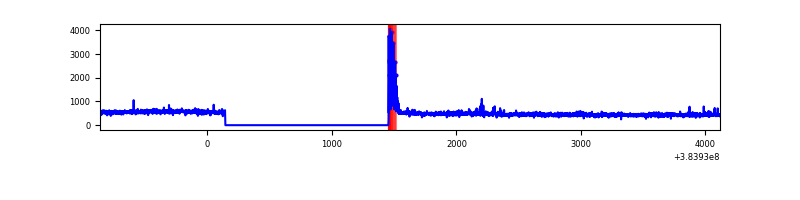

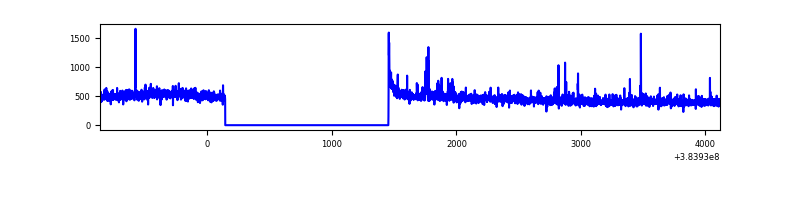

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4981 | 3670 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4981 | 3670 | 91 | 91 | 1.83% | 2.48% |  |
| C | 4981 | 3670 | 18 | 18 | 0.36% | 0.49% |  |
| D | 4981 | 3670 | 344 | 344 | 6.91% | 9.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 36919 | 427.85 | 418 | 408 | 85.3 |
| A | 10 | 83 | 29193 | 337.31 | 418 | 408 | 85.3 |
| A | 9 | 143 | 17951 | 205.58 | 418 | 408 | 85.3 |
| B | 5 | 172 | 254418 | 3181.38 | 411 | 400 | 79.8 |
| B | 5 | 255 | 121342 | 1514.7 | 411 | 400 | 79.8 |
| B | 0 | 190 | 88771 | 1106.78 | 411 | 400 | 79.8 |
| C | 15 | 214 | 156073 | 1628.7 | 402 | 404 | 95.6 |
| C | 0 | 10 | 82580 | 859.77 | 402 | 404 | 95.6 |
| C | 14 | 67 | 38321 | 396.71 | 402 | 404 | 95.6 |
| D | 2 | 250 | 727480 | 7348.89 | 378 | 368 | 98.9 |
| D | 8 | 195 | 669442 | 6762.31 | 378 | 368 | 98.9 |
| D | 1 | 52 | 351434 | 3548.21 | 378 | 368 | 98.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

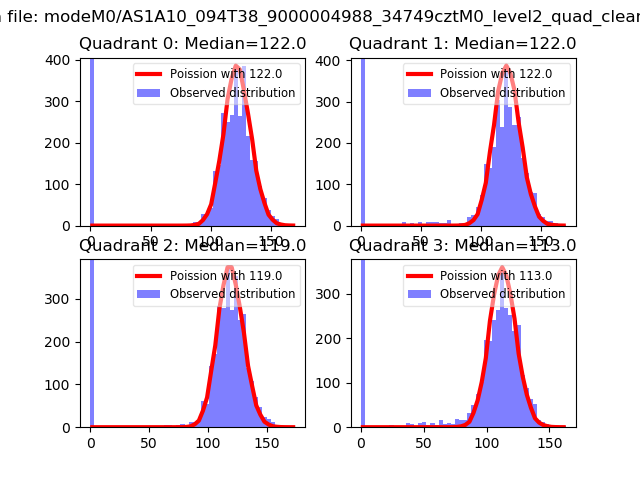

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

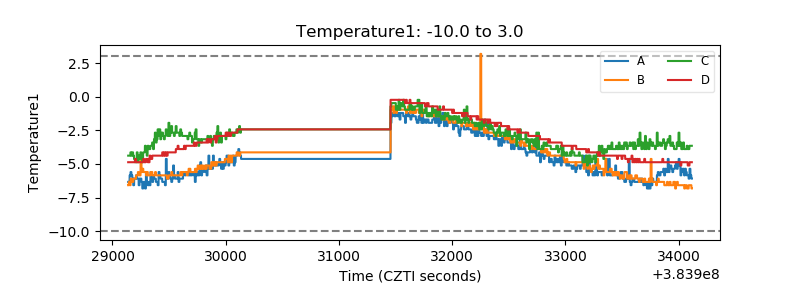

| Temperature 1 |  |
| Veto HV Monitor |  |

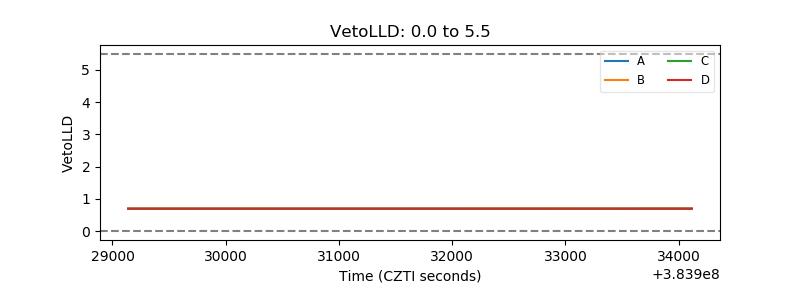

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

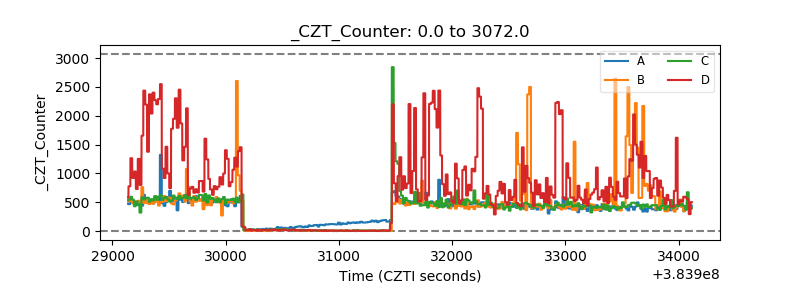

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

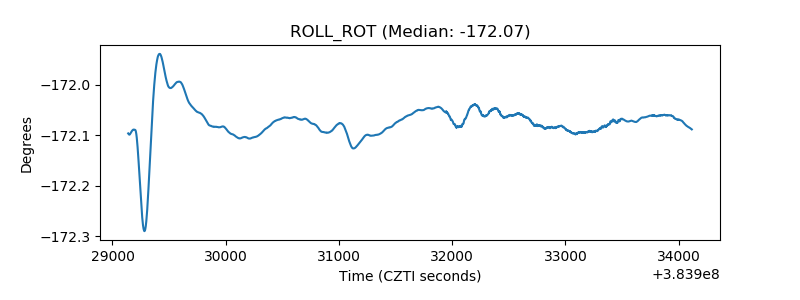

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
