| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34753cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34753cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,484,160 | 64,419,840 |
| Size | 536.4 MB | 61.4 MB |
| Events in quadrant A | 2,836,798 | 411,766 |
| Events in quadrant B | 3,024,732 | 429,758 |
| Events in quadrant C | 2,968,899 | 419,488 |
| Events in quadrant D | 7,833,076 | 304,628 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11686 | 3 |
| B | 0 | 12315 | 2 |
| C | 0 | 11806 | 2 |
| D | 0 | 27139 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5497 | 29 | 0.527560% |
| B | 5497 | 28 | 0.509369% |
| C | 5497 | 25 | 0.454794% |
| D | 5497 | 1140 | 20.738585% |

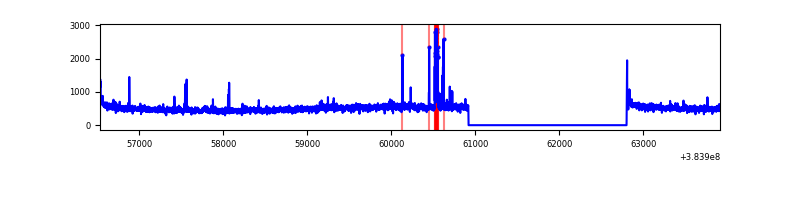

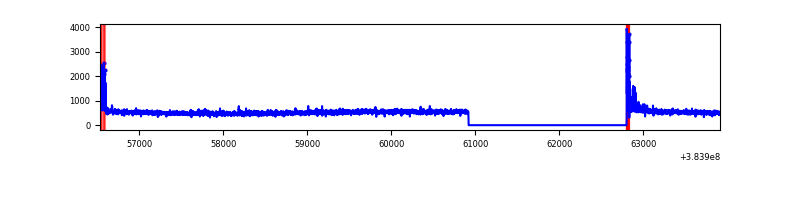

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7380 | 5498 | 20 | 20 | 0.27% | 0.36% |  |
| B | 7380 | 5498 | 16 | 16 | 0.22% | 0.29% |  |
| C | 7380 | 5498 | 19 | 19 | 0.26% | 0.35% |  |
| D | 7380 | 5498 | 1114 | 1114 | 15.09% | 20.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 97832 | 722.33 | 669 | 658 | 134.5 |
| A | 15 | 223 | 59776 | 439.44 | 669 | 658 | 134.5 |
| A | 10 | 83 | 48052 | 352.3 | 669 | 658 | 134.5 |
| B | 0 | 190 | 126898 | 981.37 | 677 | 659 | 128.6 |
| B | 5 | 255 | 81081 | 625.19 | 677 | 659 | 128.6 |
| B | 5 | 172 | 71995 | 554.56 | 677 | 659 | 128.6 |
| C | 15 | 214 | 233605 | 1521.96 | 663 | 668 | 153.1 |
| C | 0 | 10 | 113327 | 736.09 | 663 | 668 | 153.1 |
| C | 14 | 67 | 23083 | 146.45 | 663 | 668 | 153.1 |
| D | 1 | 52 | 3819562 | 26571.81 | 590 | 574 | 143.7 |
| D | 8 | 195 | 482871 | 3355.73 | 590 | 574 | 143.7 |
| D | 7 | 223 | 414554 | 2880.4 | 590 | 574 | 143.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

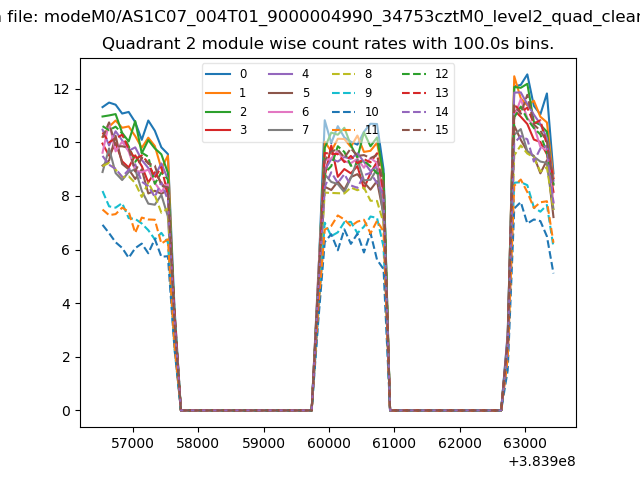

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

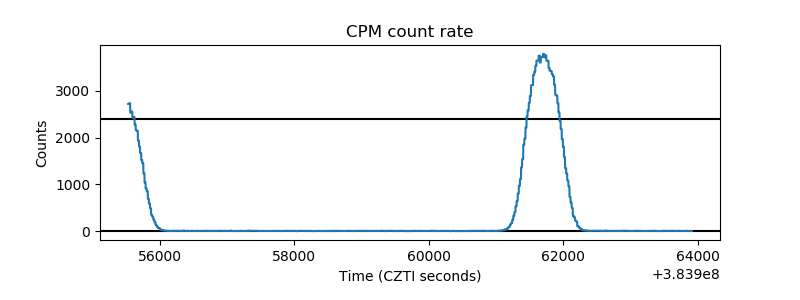

| _CPM_Rate |  |

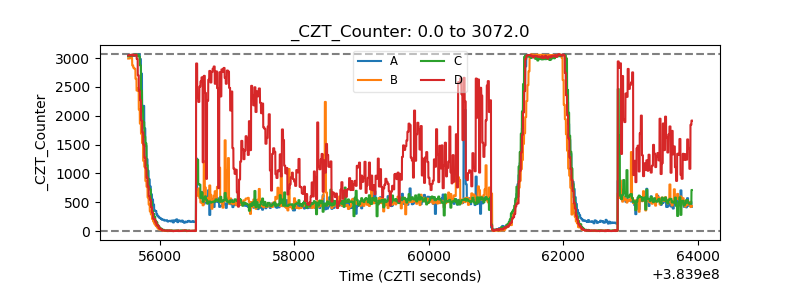

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

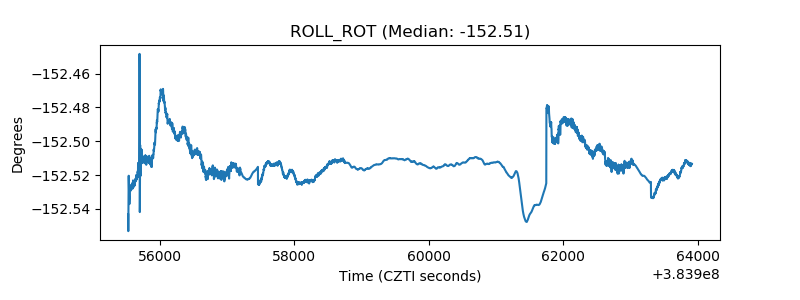

| _ROLL_ROT |  |

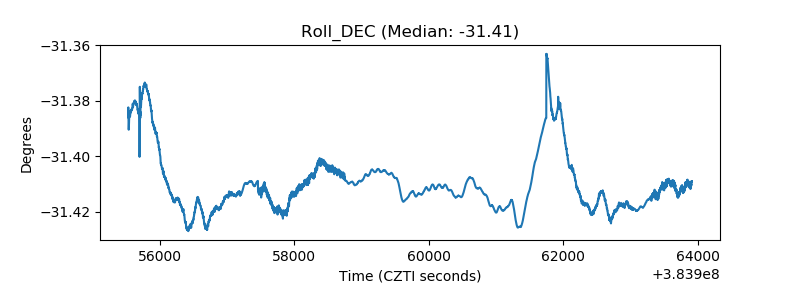

| _Roll_DEC |  |
| _Roll_RA |  |

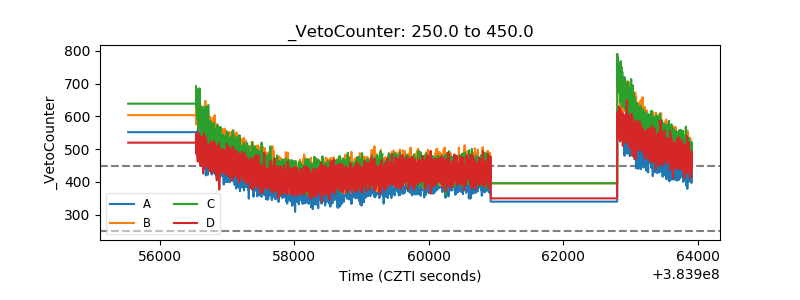

| Veto Counter |  |
