| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34759cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34759cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,857,920 | 82,031,040 |
| Size | 443.3 MB | 78.2 MB |
| Events in quadrant A | 2,692,996 | 526,626 |
| Events in quadrant B | 2,930,644 | 537,818 |
| Events in quadrant C | 2,993,609 | 540,092 |
| Events in quadrant D | 5,081,270 | 487,947 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11586 | 2 |
| B | 0 | 12042 | 1 |
| C | 0 | 12105 | 1 |
| D | 0 | 19110 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5603 | 33 | 0.588970% |
| B | 5603 | 47 | 0.838836% |
| C | 5603 | 46 | 0.820989% |
| D | 5603 | 367 | 6.550062% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7156 | 5604 | 19 | 19 | 0.27% | 0.34% |  |
| B | 7156 | 5604 | 25 | 25 | 0.35% | 0.45% |  |
| C | 7156 | 5604 | 27 | 27 | 0.38% | 0.48% |  |
| D | 7156 | 5604 | 326 | 326 | 4.56% | 5.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 49697 | 363.79 | 658 | 646 | 134.8 |
| A | 15 | 169 | 48017 | 351.33 | 658 | 646 | 134.8 |
| A | 15 | 174 | 18340 | 131.23 | 658 | 646 | 134.8 |
| B | 0 | 190 | 124547 | 983.5 | 658 | 641 | 126.0 |
| B | 5 | 172 | 74412 | 585.55 | 658 | 641 | 126.0 |
| B | 5 | 255 | 56283 | 441.65 | 658 | 641 | 126.0 |
| C | 15 | 214 | 241164 | 1602.73 | 643 | 647 | 150.1 |
| C | 0 | 10 | 174316 | 1157.28 | 643 | 647 | 150.1 |
| C | 14 | 67 | 52285 | 344.1 | 643 | 647 | 150.1 |
| D | 2 | 250 | 1404241 | 9138.25 | 627 | 609 | 153.6 |
| D | 8 | 195 | 809282 | 5264.81 | 627 | 609 | 153.6 |
| D | 2 | 249 | 131242 | 850.47 | 627 | 609 | 153.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

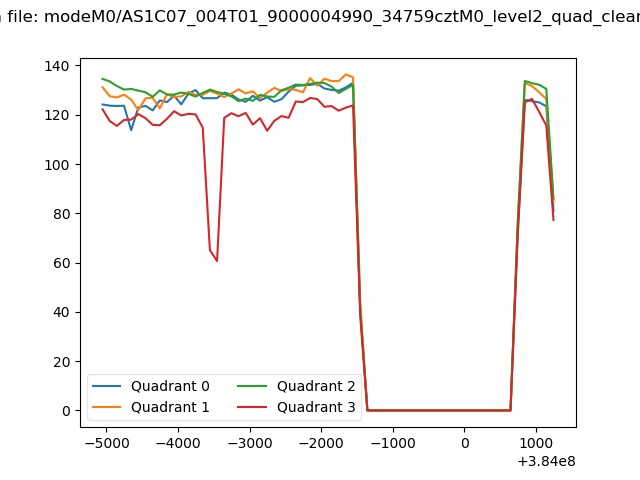

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

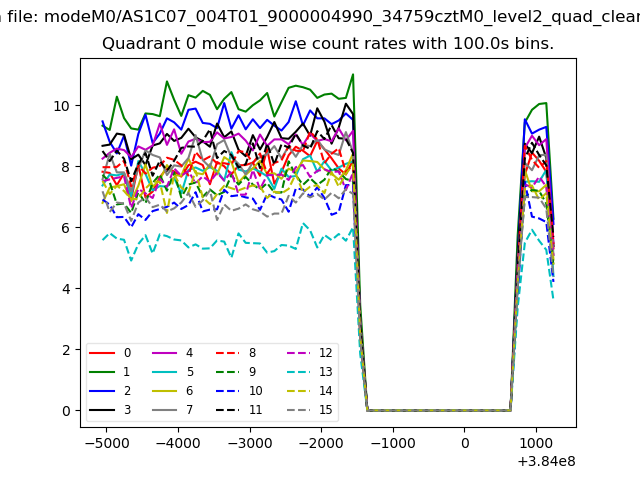

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

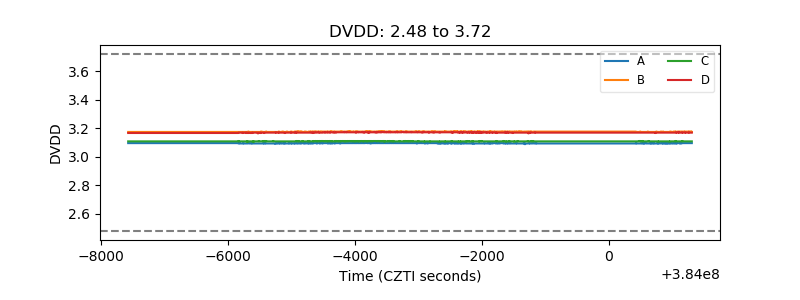

| D_VDD |  |

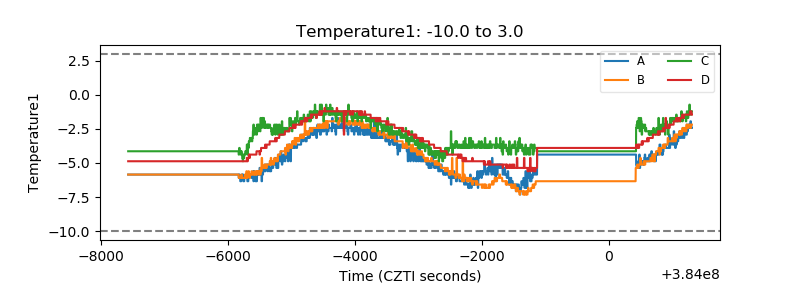

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

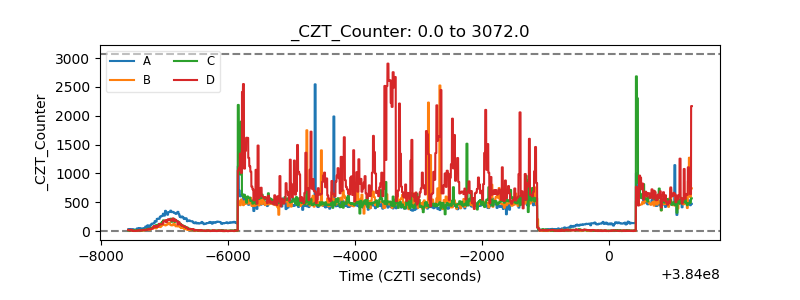

| CZT Counter |  |
| +2.5 Volts monitor |  |

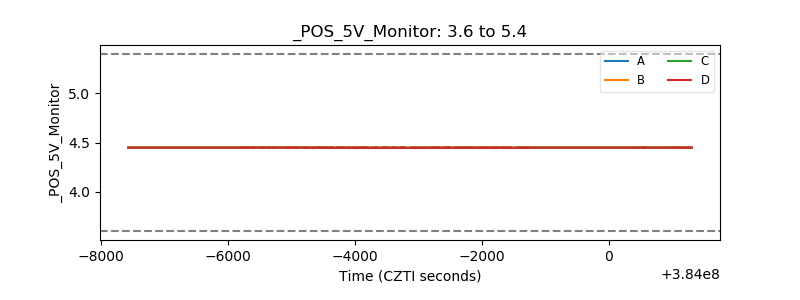

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

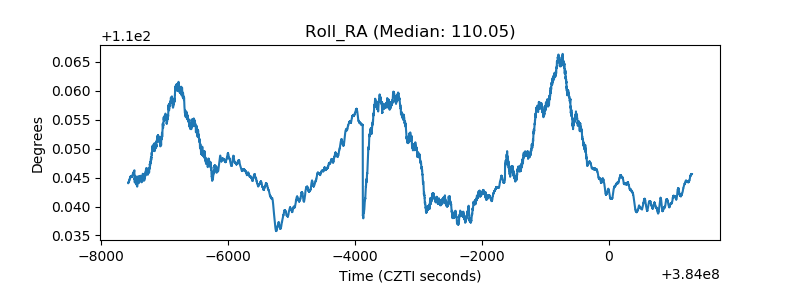

| _Roll_RA |  |

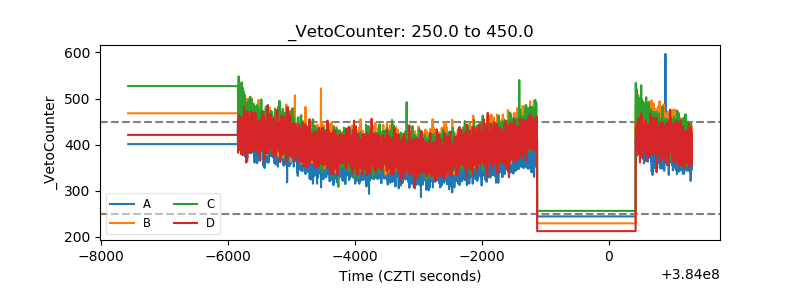

| Veto Counter |  |
