| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34772cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34772cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,876,800 | 59,950,080 |
| Size | 453.8 MB | 57.2 MB |
| Events in quadrant A | 2,475,727 | 368,485 |
| Events in quadrant B | 2,640,457 | 380,956 |
| Events in quadrant C | 2,833,911 | 380,894 |
| Events in quadrant D | 6,118,185 | 329,169 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10355 | 14 |
| B | 0 | 10795 | 16 |
| C | 0 | 11118 | 7 |
| D | 0 | 21827 | 90 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5068 | 9 | 0.177585% |
| B | 5066 | 18 | 0.355310% |
| C | 5072 | 36 | 0.709779% |
| D | 5059 | 793 | 15.675035% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7078 | 5074 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7078 | 5074 | 5 | 5 | 0.07% | 0.10% |  |
| C | 7078 | 5075 | 23 | 23 | 0.32% | 0.45% |  |
| D | 7078 | 5072 | 714 | 714 | 10.09% | 14.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 47847 | 378.33 | 623 | 611 | 124.9 |
| A | 13 | 6 | 14352 | 110.06 | 623 | 611 | 124.9 |
| A | 15 | 174 | 9125 | 68.19 | 623 | 611 | 124.9 |
| B | 5 | 255 | 94149 | 785.82 | 621 | 606 | 119.0 |
| B | 0 | 190 | 52789 | 438.37 | 621 | 606 | 119.0 |
| B | 12 | 111 | 14423 | 116.07 | 621 | 606 | 119.0 |
| C | 15 | 214 | 219819 | 1551.22 | 610 | 617 | 141.3 |
| C | 0 | 10 | 107422 | 755.82 | 610 | 617 | 141.3 |
| C | 14 | 67 | 96296 | 677.09 | 610 | 617 | 141.3 |
| D | 8 | 195 | 1216546 | 8660.74 | 578 | 563 | 140.4 |
| D | 10 | 118 | 1196405 | 8517.29 | 578 | 563 | 140.4 |
| D | 2 | 250 | 1005687 | 7158.91 | 578 | 563 | 140.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

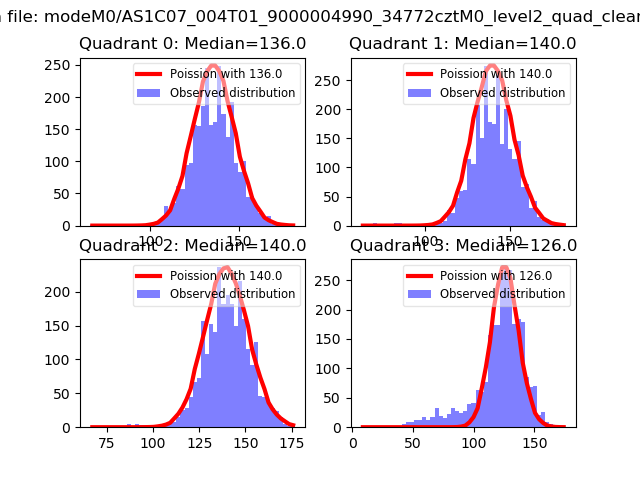

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

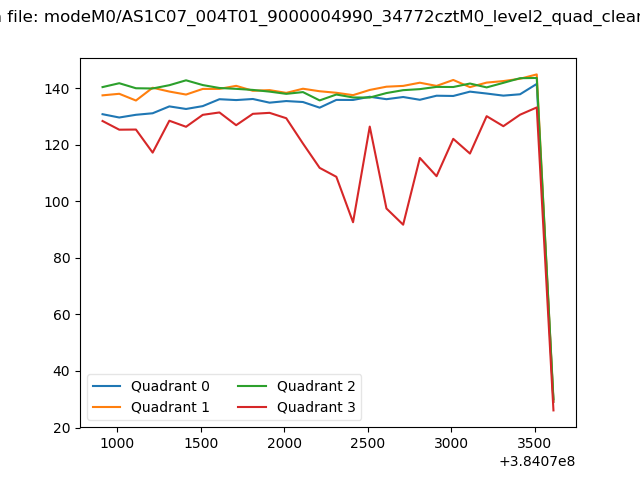

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

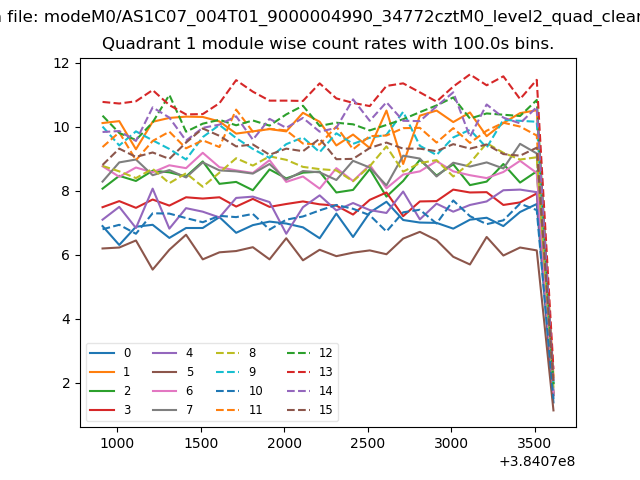

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

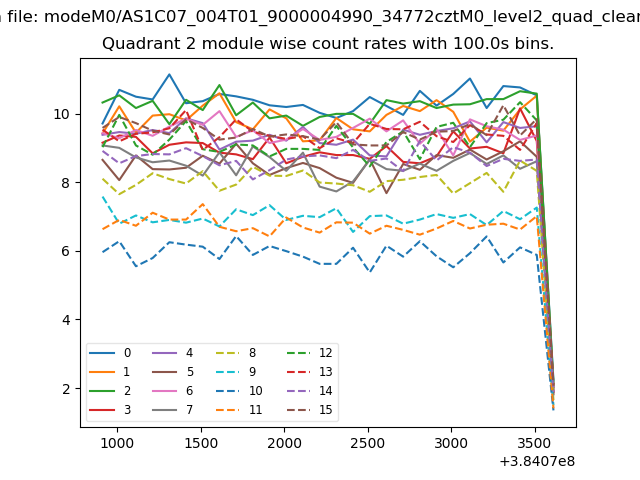

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

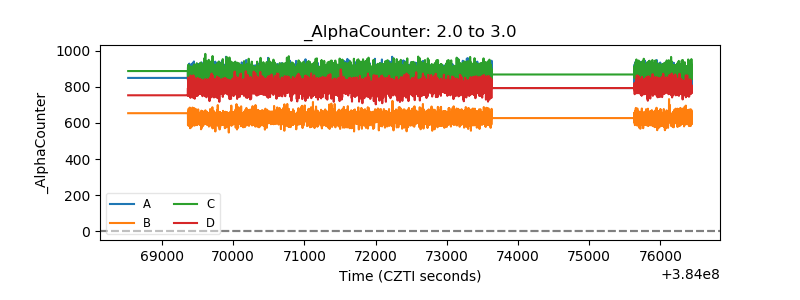

| Alpha Counter |  |

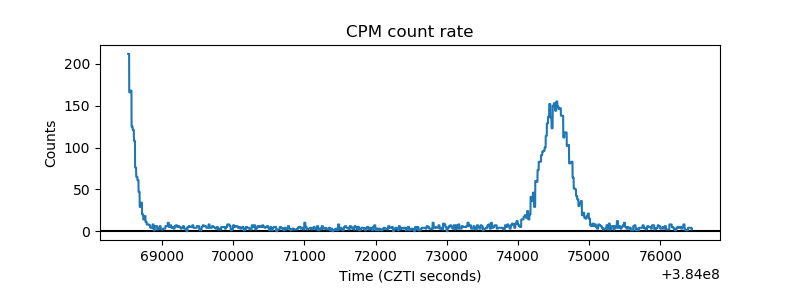

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

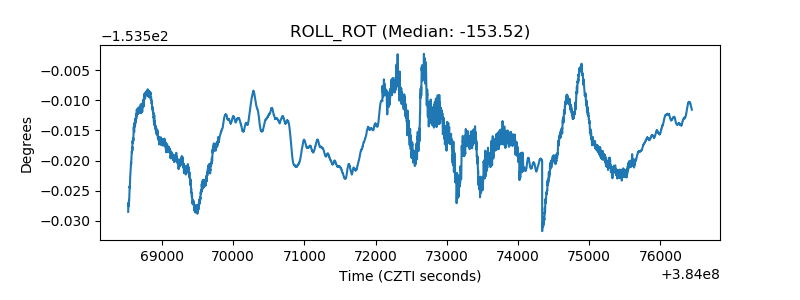

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

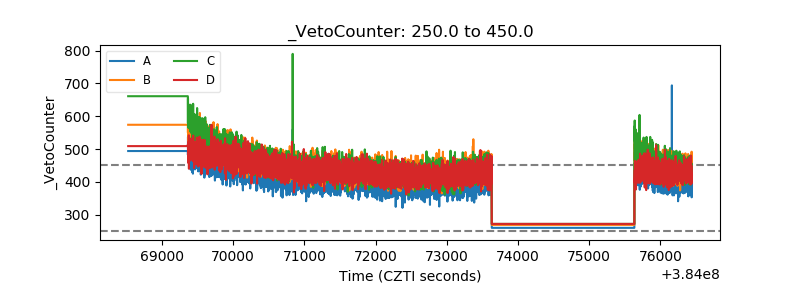

| Veto Counter |  |
