| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34782cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34782cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,788,160 | 67,345,920 |
| Size | 401.3 MB | 64.2 MB |
| Events in quadrant A | 2,546,697 | 420,993 |
| Events in quadrant B | 3,199,227 | 435,141 |
| Events in quadrant C | 2,848,738 | 427,626 |
| Events in quadrant D | 3,797,086 | 392,344 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10691 | 3 |
| B | 0 | 12634 | 2 |
| C | 0 | 11393 | 2 |
| D | 0 | 14913 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5182 | 6 | 0.115785% |
| B | 5182 | 117 | 2.257816% |
| C | 5182 | 31 | 0.598225% |
| D | 5182 | 84 | 1.620996% |

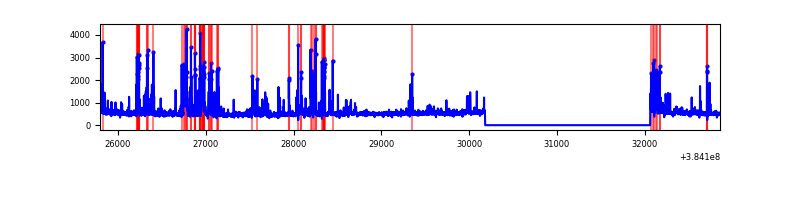

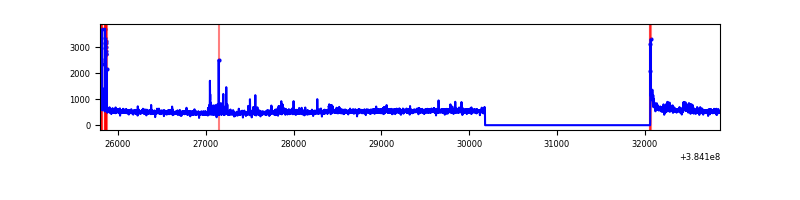

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7064 | 5183 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7064 | 5183 | 88 | 88 | 1.25% | 1.70% |  |
| C | 7064 | 5183 | 23 | 23 | 0.33% | 0.44% |  |
| D | 7064 | 5183 | 70 | 70 | 0.99% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 47465 | 372.39 | 628 | 617 | 125.8 |
| A | 15 | 169 | 40162 | 314.34 | 628 | 617 | 125.8 |
| A | 7 | 16 | 17305 | 132.65 | 628 | 617 | 125.8 |
| B | 5 | 172 | 562540 | 4623.98 | 633 | 616 | 121.5 |
| B | 5 | 255 | 61290 | 499.28 | 633 | 616 | 121.5 |
| B | 0 | 190 | 41079 | 332.96 | 633 | 616 | 121.5 |
| C | 15 | 214 | 223433 | 1542.32 | 620 | 626 | 144.5 |
| C | 0 | 10 | 100984 | 694.7 | 620 | 626 | 144.5 |
| C | 0 | 207 | 41690 | 284.25 | 620 | 626 | 144.5 |
| D | 8 | 195 | 939674 | 6331.56 | 608 | 590 | 148.3 |
| D | 1 | 52 | 165691 | 1113.16 | 608 | 590 | 148.3 |
| D | 2 | 250 | 152513 | 1024.31 | 608 | 590 | 148.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

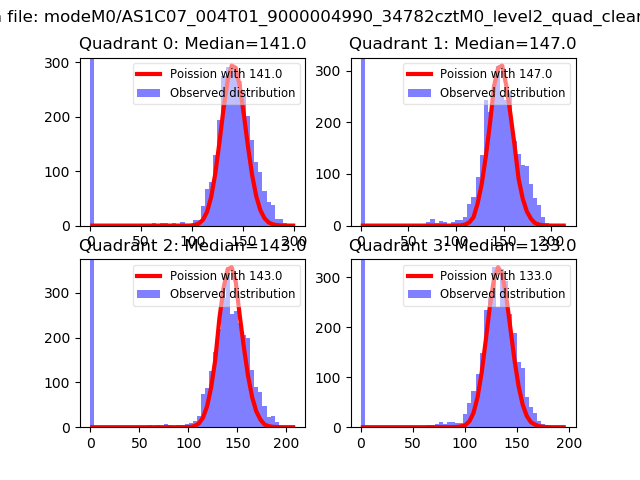

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

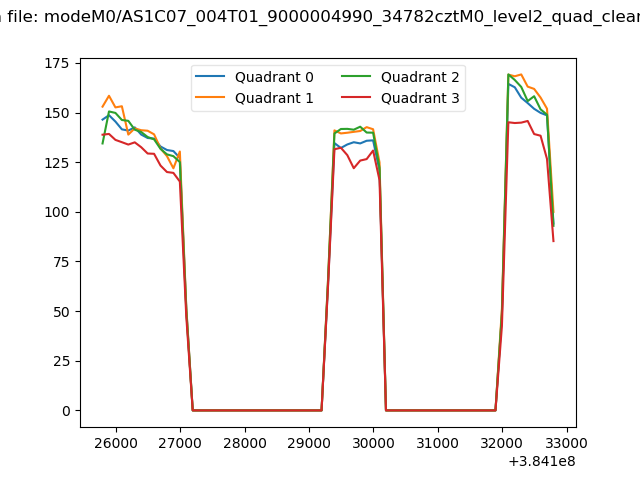

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

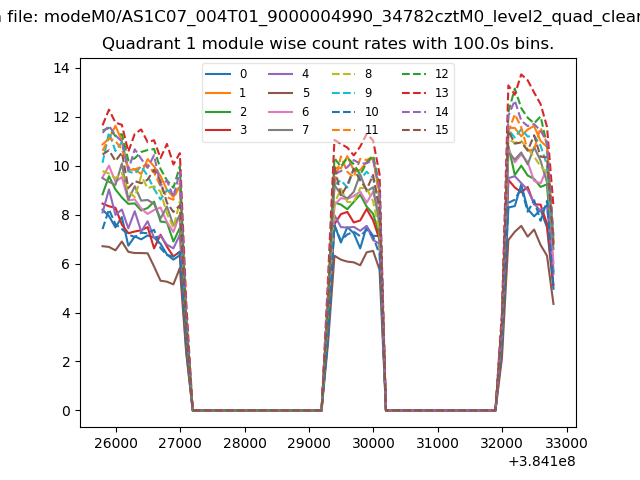

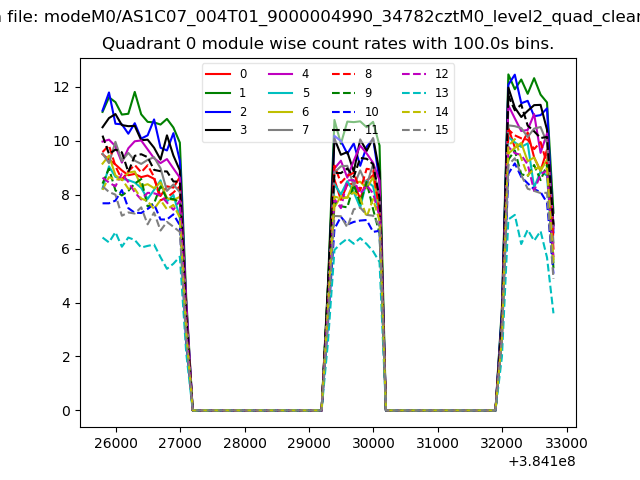

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

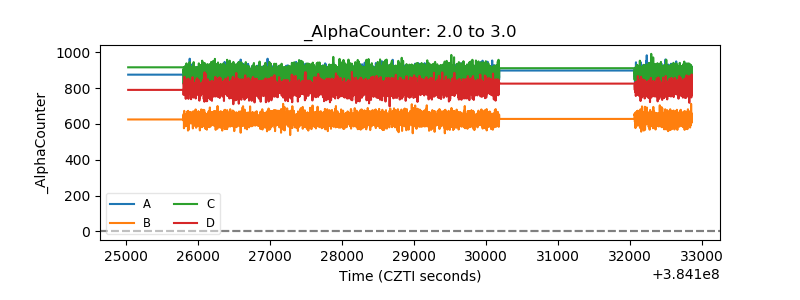

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

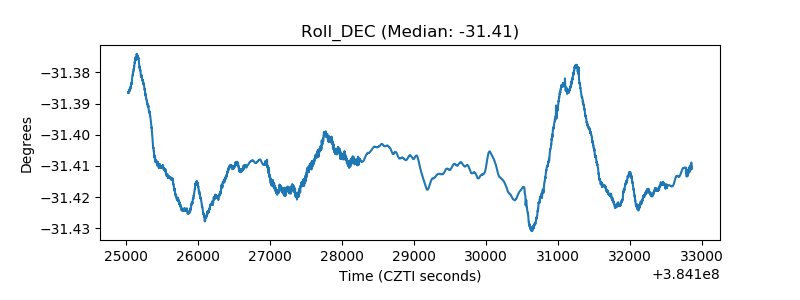

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
