| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34784cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34784cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,609,600 | 51,482,880 |
| Size | 409.7 MB | 49.1 MB |
| Events in quadrant A | 2,698,612 | 299,410 |
| Events in quadrant B | 3,501,318 | 303,374 |
| Events in quadrant C | 2,990,695 | 308,199 |
| Events in quadrant D | 3,471,181 | 287,131 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10840 | 3 |
| B | 0 | 13460 | 2 |
| C | 0 | 11733 | 2 |
| D | 0 | 13966 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5144 | 25 | 0.486003% |
| B | 5144 | 234 | 4.548989% |
| C | 5144 | 38 | 0.738725% |
| D | 5144 | 18 | 0.349922% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

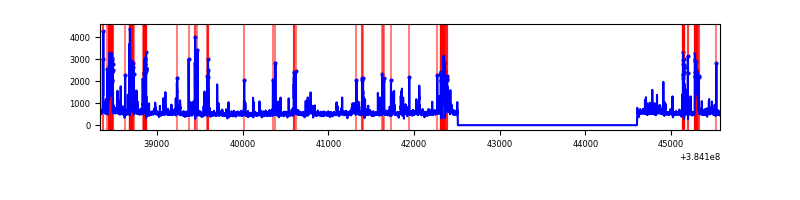

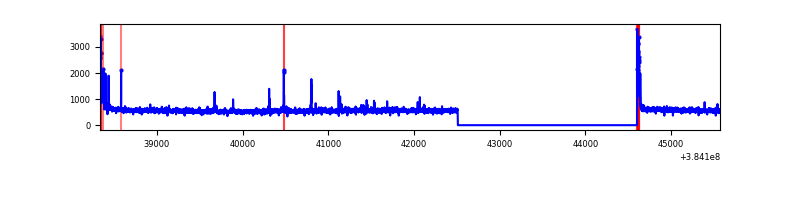

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7237 | 5145 | 17 | 17 | 0.23% | 0.33% |  |
| B | 7237 | 5145 | 176 | 176 | 2.43% | 3.42% |  |
| C | 7237 | 5145 | 24 | 24 | 0.33% | 0.47% |  |
| D | 7237 | 5145 | 12 | 12 | 0.17% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 45703 | 341.75 | 663 | 652 | 131.8 |
| A | 8 | 192 | 38506 | 287.16 | 663 | 652 | 131.8 |
| A | 15 | 169 | 22400 | 164.98 | 663 | 652 | 131.8 |
| B | 5 | 172 | 418630 | 3392.44 | 659 | 644 | 123.2 |
| B | 5 | 255 | 392503 | 3180.39 | 659 | 644 | 123.2 |
| B | 0 | 190 | 31428 | 249.85 | 659 | 644 | 123.2 |
| C | 15 | 214 | 222954 | 1468.91 | 661 | 669 | 151.3 |
| C | 0 | 10 | 112188 | 736.94 | 661 | 669 | 151.3 |
| C | 14 | 67 | 29239 | 188.8 | 661 | 669 | 151.3 |
| D | 8 | 195 | 794713 | 5017.25 | 652 | 636 | 158.3 |
| D | 2 | 249 | 54715 | 341.69 | 652 | 636 | 158.3 |
| D | 12 | 6 | 26245 | 161.81 | 652 | 636 | 158.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

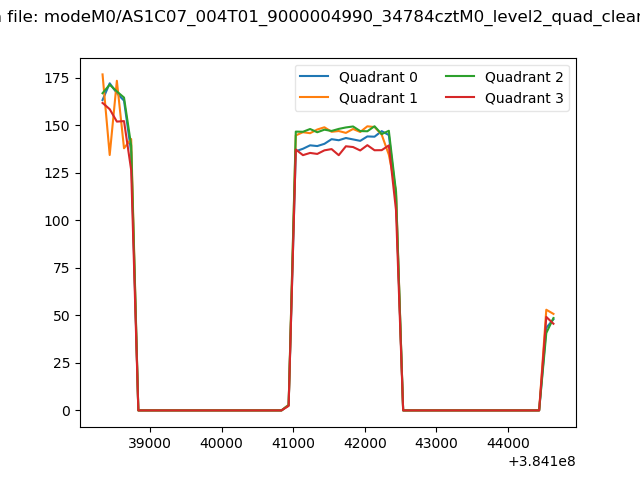

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

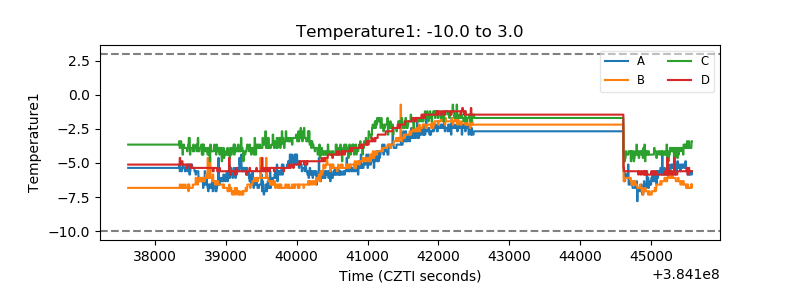

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

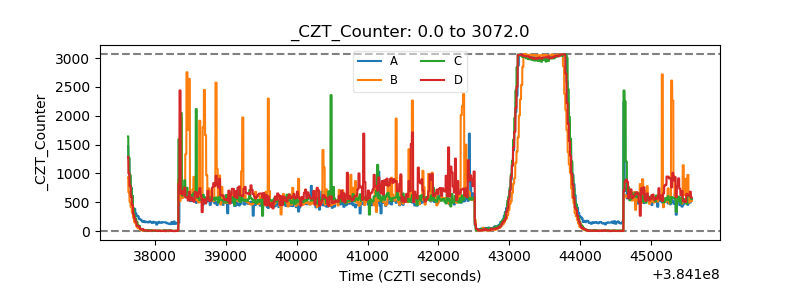

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

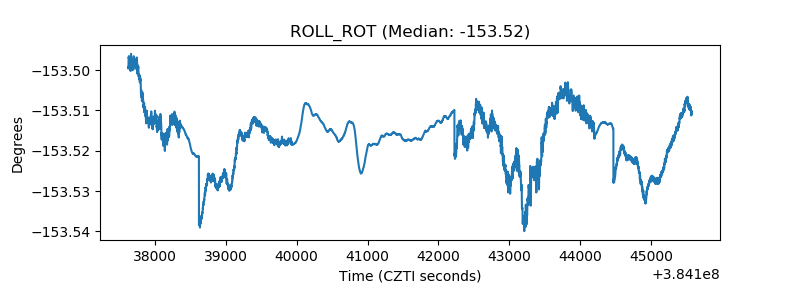

| _ROLL_ROT |  |

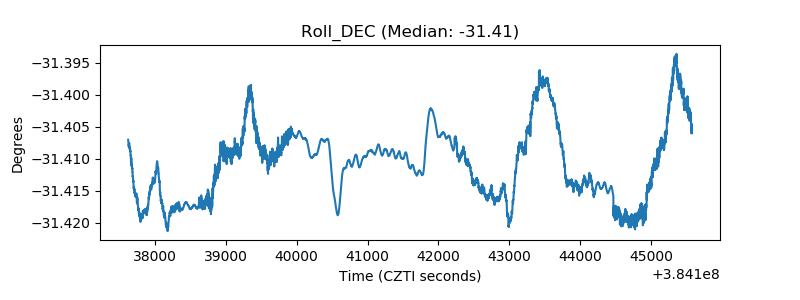

| _Roll_DEC |  |
| _Roll_RA |  |

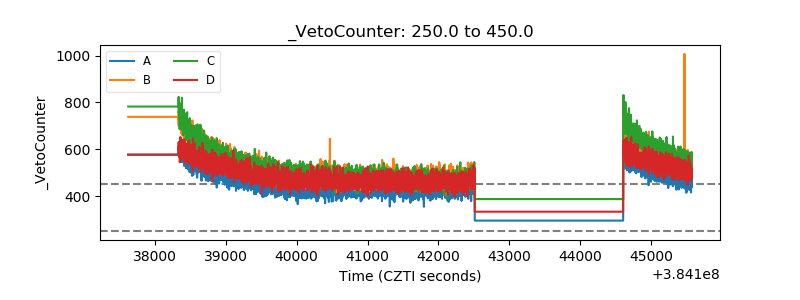

| Veto Counter |  |
