| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34801cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34801cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,956,160 | 56,655,360 |
| Size | 387.1 MB | 54.0 MB |
| Events in quadrant A | 2,449,459 | 340,416 |
| Events in quadrant B | 3,057,611 | 349,343 |
| Events in quadrant C | 2,690,703 | 351,706 |
| Events in quadrant D | 3,753,989 | 320,384 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10306 | 3 |
| B | 0 | 12092 | 2 |
| C | 0 | 10654 | 2 |
| D | 0 | 14401 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5043 | 15 | 0.297442% |
| B | 5043 | 192 | 3.807258% |
| C | 5043 | 27 | 0.535396% |
| D | 5043 | 184 | 3.648622% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7045 | 5044 | 7 | 7 | 0.10% | 0.14% |  |
| B | 7045 | 5044 | 120 | 120 | 1.70% | 2.38% |  |
| C | 7045 | 5044 | 18 | 18 | 0.26% | 0.36% |  |
| D | 7045 | 5044 | 178 | 178 | 2.53% | 3.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 49005 | 398.67 | 608 | 596 | 121.4 |
| A | 15 | 174 | 25220 | 202.79 | 608 | 596 | 121.4 |
| A | 13 | 6 | 18132 | 144.42 | 608 | 596 | 121.4 |
| B | 5 | 172 | 391856 | 3387.53 | 604 | 589 | 115.5 |
| B | 5 | 255 | 103904 | 894.48 | 604 | 589 | 115.5 |
| B | 4 | 171 | 87194 | 749.81 | 604 | 589 | 115.5 |
| C | 15 | 214 | 219023 | 1580.14 | 598 | 604 | 138.2 |
| C | 0 | 10 | 89318 | 641.79 | 598 | 604 | 138.2 |
| C | 14 | 67 | 30537 | 216.55 | 598 | 604 | 138.2 |
| D | 2 | 250 | 705212 | 4926.67 | 586 | 571 | 143.0 |
| D | 8 | 195 | 348384 | 2431.82 | 586 | 571 | 143.0 |
| D | 2 | 249 | 153324 | 1068.01 | 586 | 571 | 143.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

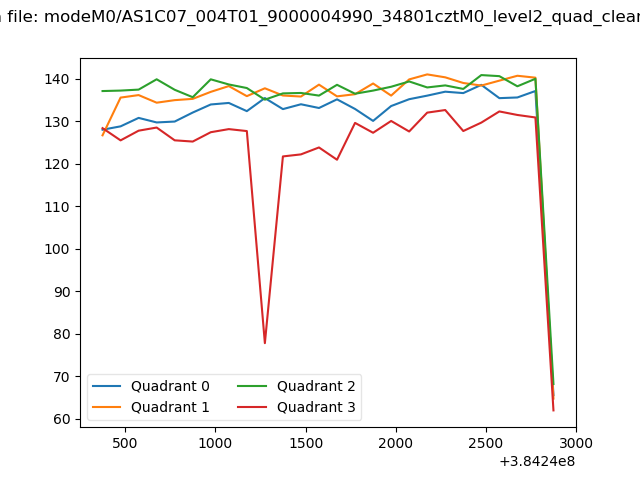

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

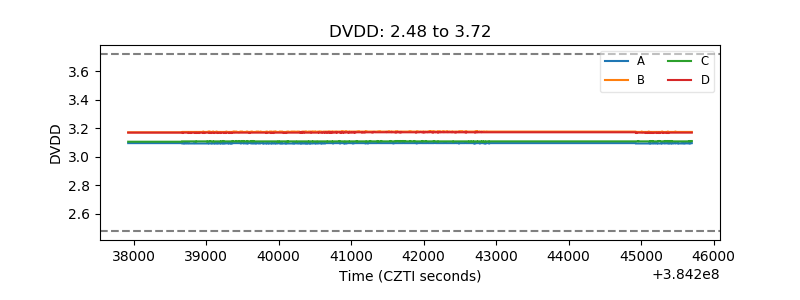

| D_VDD |  |

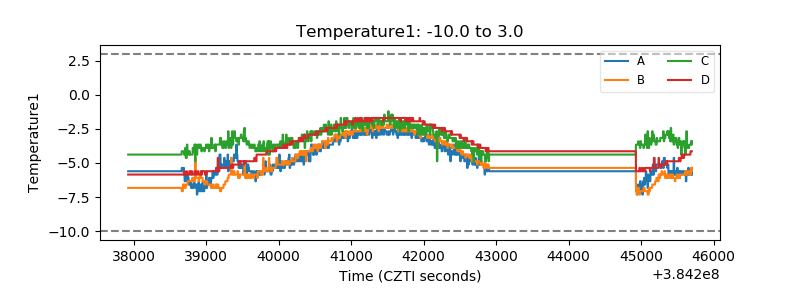

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

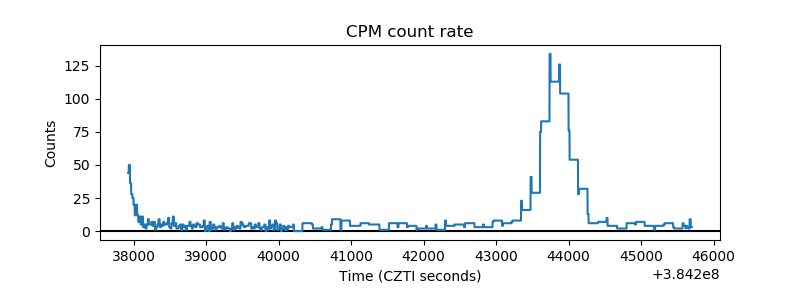

| _CPM_Rate |  |

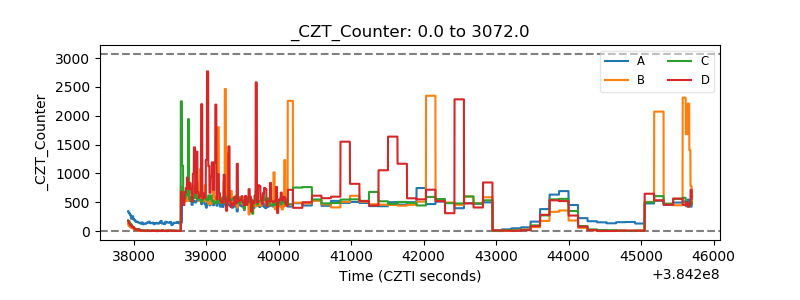

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

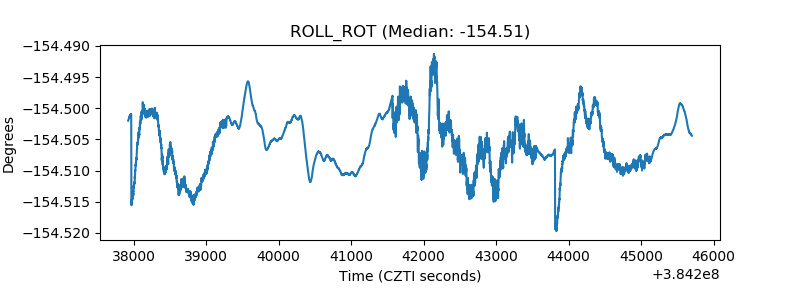

| _ROLL_ROT |  |

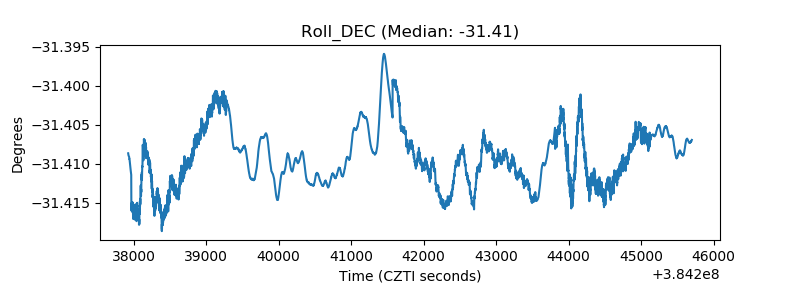

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
