| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_004T01_9000004990_34803cztM0_level2.evt | modeM0/AS1C07_004T01_9000004990_34803cztM0_level2_quad_clean.evt |
| Size (bytes) | 548,501,760 | 99,780,480 |
| Size | 523.1 MB | 95.2 MB |
| Events in quadrant A | 3,168,983 | 645,858 |
| Events in quadrant B | 3,818,448 | 650,375 |
| Events in quadrant C | 3,606,395 | 658,619 |
| Events in quadrant D | 5,556,077 | 592,431 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13829 | 3 |
| B | 0 | 15544 | 2 |
| C | 0 | 14559 | 2 |
| D | 0 | 21005 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6808 | 11 | 0.161575% |
| B | 6808 | 128 | 1.880141% |
| C | 6808 | 50 | 0.734430% |
| D | 6808 | 461 | 6.771445% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

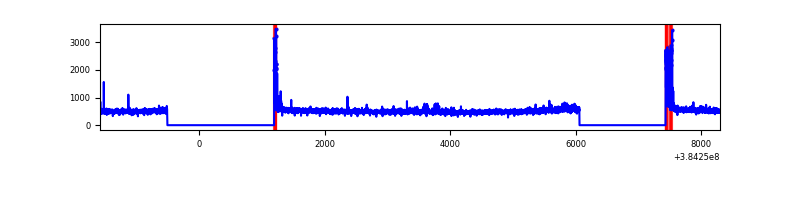

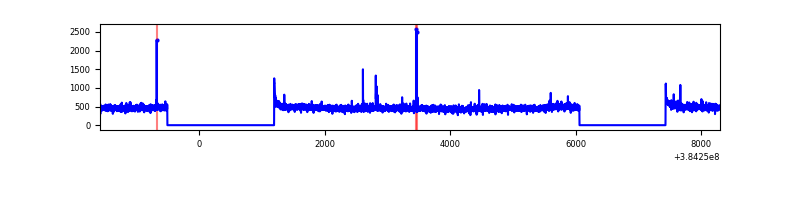

| A | 9884 | 6810 | 3 | 3 | 0.03% | 0.04% |  |
| B | 9884 | 6810 | 97 | 97 | 0.98% | 1.42% |  |
| C | 9884 | 6810 | 37 | 37 | 0.37% | 0.54% |  |

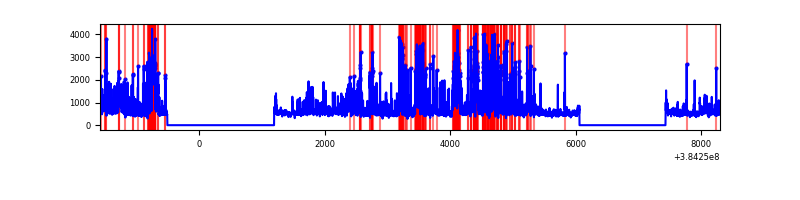

| D | 9884 | 6810 | 394 | 394 | 3.99% | 5.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 52786 | 321.17 | 795 | 781 | 161.9 |
| A | 15 | 174 | 18896 | 111.87 | 795 | 781 | 161.9 |
| A | 13 | 254 | 12158 | 70.26 | 795 | 781 | 161.9 |
| B | 5 | 172 | 365685 | 2393.12 | 788 | 767 | 152.5 |
| B | 5 | 255 | 239527 | 1565.78 | 788 | 767 | 152.5 |
| B | 4 | 171 | 43218 | 278.39 | 788 | 767 | 152.5 |
| C | 15 | 214 | 305124 | 1698.77 | 776 | 783 | 179.2 |
| C | 0 | 10 | 164058 | 911.37 | 776 | 783 | 179.2 |
| C | 14 | 67 | 88434 | 489.25 | 776 | 783 | 179.2 |
| D | 2 | 249 | 1000348 | 5382.71 | 753 | 731 | 185.7 |
| D | 8 | 195 | 799147 | 4299.29 | 753 | 731 | 185.7 |
| D | 10 | 118 | 319595 | 1717.01 | 753 | 731 | 185.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

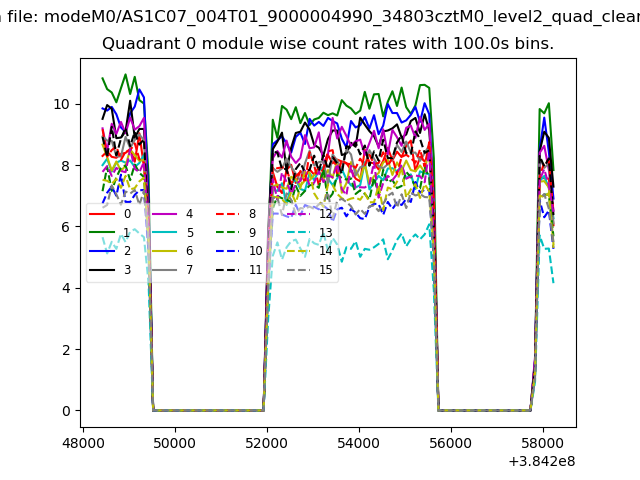

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

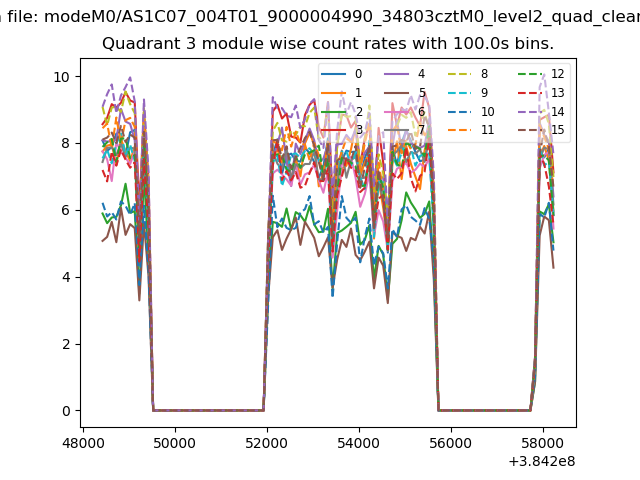

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

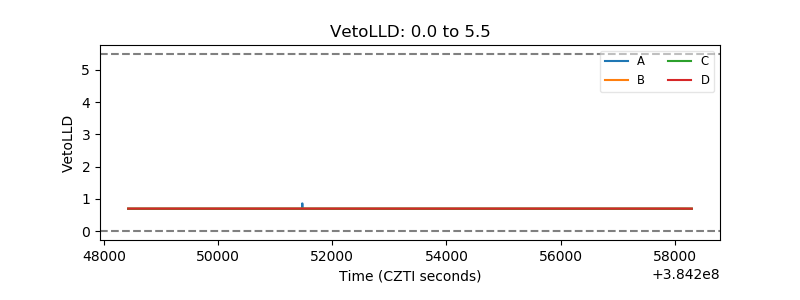

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

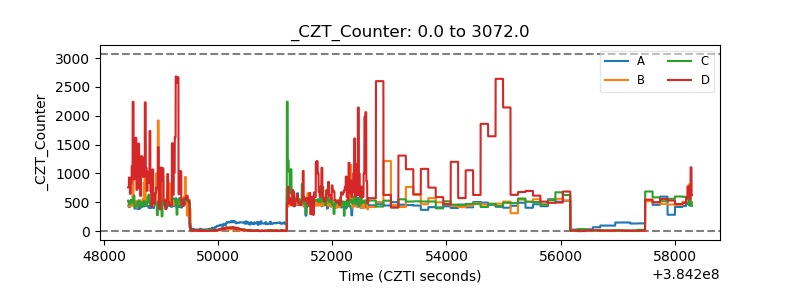

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

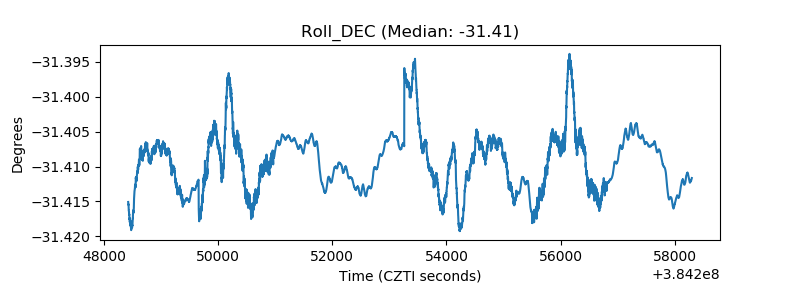

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
