| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004992_34813cztM0_level2.evt | modeM0/AS1C07_005T01_9000004992_34813cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,581,760 | 105,454,080 |
| Size | 438.3 MB | 100.6 MB |
| Events in quadrant A | 3,499,500 | 713,617 |
| Events in quadrant B | 3,155,970 | 727,438 |
| Events in quadrant C | 3,106,092 | 717,352 |
| Events in quadrant D | 3,800,586 | 667,621 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13843 | 3 |
| B | 0 | 12446 | 2 |
| C | 0 | 12179 | 2 |
| D | 0 | 15071 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5250 | 14 | 0.266667% |
| B | 5250 | 130 | 2.476190% |
| C | 5250 | 68 | 1.295238% |
| D | 5250 | 128 | 2.438095% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

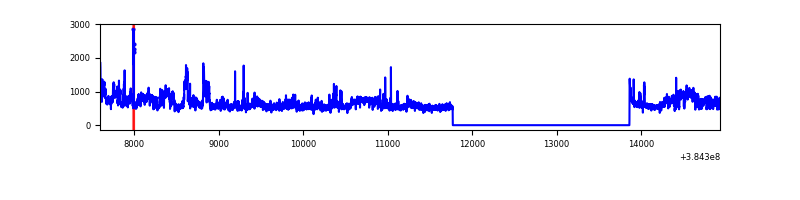

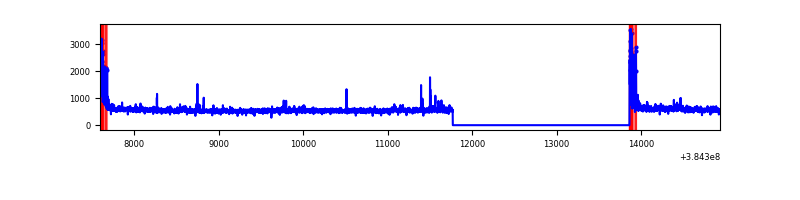

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7343 | 5251 | 4 | 4 | 0.05% | 0.08% |  |
| B | 7343 | 5251 | 95 | 95 | 1.29% | 1.81% |  |
| C | 7343 | 5251 | 54 | 54 | 0.74% | 1.03% |  |
| D | 7343 | 5251 | 93 | 93 | 1.27% | 1.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 247 | 588066 | 4448.35 | 665 | 655 | 132.1 |
| A | 15 | 169 | 185975 | 1403.39 | 665 | 655 | 132.1 |
| A | 10 | 83 | 48911 | 365.43 | 665 | 655 | 132.1 |
| B | 5 | 172 | 432567 | 3576.93 | 660 | 644 | 120.8 |
| B | 4 | 232 | 27776 | 224.69 | 660 | 644 | 120.8 |
| B | 5 | 200 | 21430 | 172.14 | 660 | 644 | 120.8 |
| C | 15 | 214 | 240169 | 1619.21 | 656 | 662 | 147.9 |
| C | 0 | 10 | 208418 | 1404.55 | 656 | 662 | 147.9 |
| C | 14 | 67 | 84013 | 563.5 | 656 | 662 | 147.9 |
| D | 8 | 195 | 721197 | 4635.69 | 648 | 631 | 155.4 |
| D | 2 | 249 | 338345 | 2172.65 | 648 | 631 | 155.4 |
| D | 13 | 249 | 69283 | 441.67 | 648 | 631 | 155.4 |

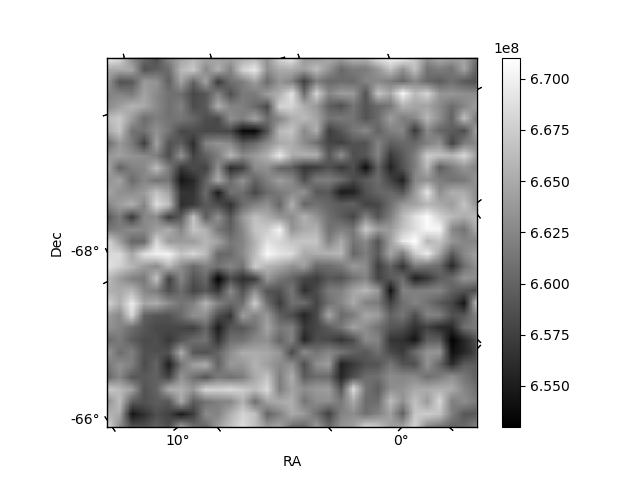

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

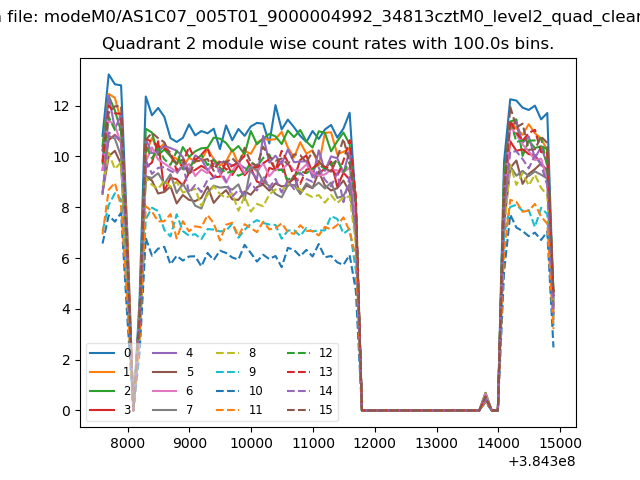

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

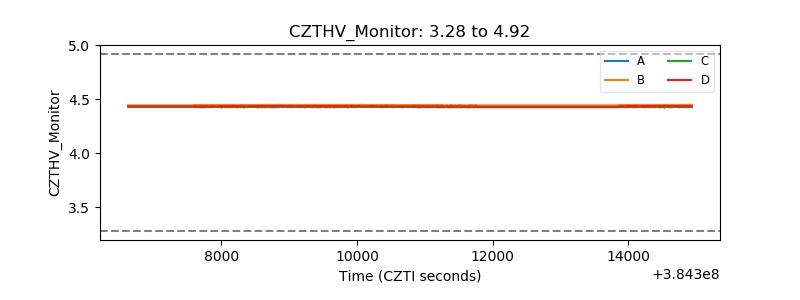

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

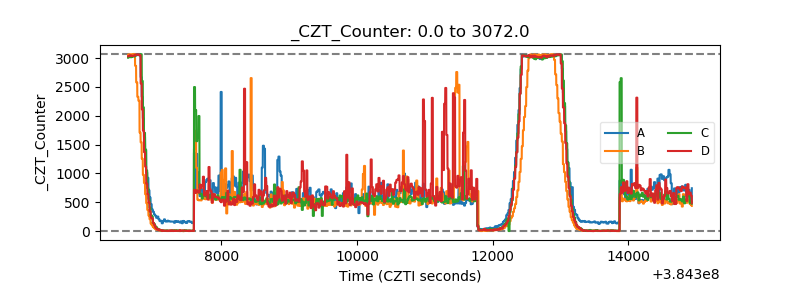

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

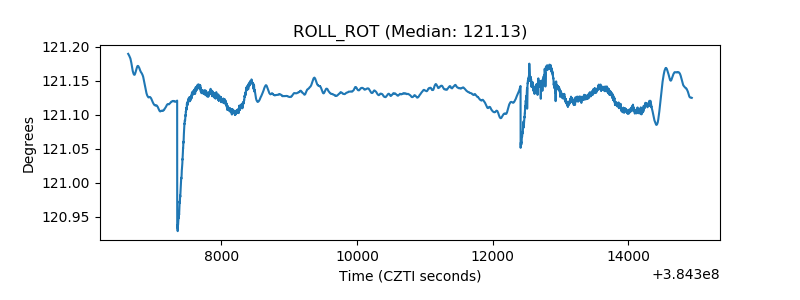

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

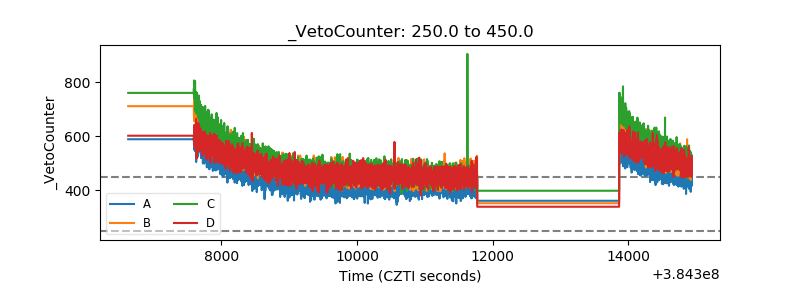

| Veto Counter |  |
