| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004992_34822cztM0_level2.evt | modeM0/AS1C07_005T01_9000004992_34822cztM0_level2_quad_clean.evt |
| Size (bytes) | 806,837,760 | 83,321,280 |
| Size | 769.5 MB | 79.5 MB |
| Events in quadrant A | 3,089,039 | 647,536 |
| Events in quadrant B | 14,372,206 | 226,611 |
| Events in quadrant C | 2,941,399 | 640,468 |
| Events in quadrant D | 3,651,025 | 611,898 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12992 | 2 |
| B | 0 | 46585 | 1 |
| C | 0 | 12231 | 1 |
| D | 0 | 14638 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5640 | 51 | 0.904255% |
| B | 5640 | 5640 | 100.000000% |
| C | 5640 | 43 | 0.762411% |
| D | 5640 | 114 | 2.021277% |

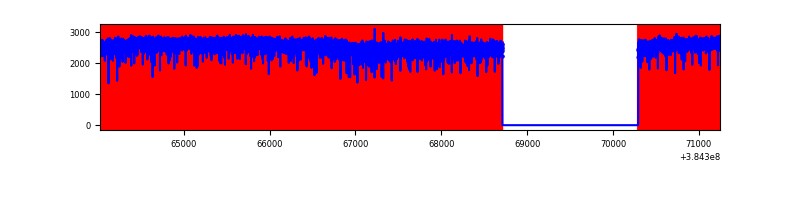

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7222 | 5641 | 32 | 32 | 0.44% | 0.57% |  |
| B | 7221 | 5639 | 5539 | 5539 | 76.71% | 98.23% |  |
| C | 7222 | 5641 | 31 | 31 | 0.43% | 0.55% |  |
| D | 7222 | 5641 | 99 | 99 | 1.37% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 500462 | 3843.05 | 641 | 629 | 130.1 |
| A | 10 | 83 | 55647 | 423.01 | 641 | 629 | 130.1 |
| A | 7 | 16 | 20102 | 149.72 | 641 | 629 | 130.1 |
| B | 5 | 14 | 3979137 | 78830.04 | 255 | 249 | 50.5 |
| B | 5 | 31 | 3881005 | 76885.84 | 255 | 249 | 50.5 |
| B | 5 | 15 | 3857031 | 76410.87 | 255 | 249 | 50.5 |
| C | 15 | 214 | 259718 | 1816.84 | 616 | 619 | 142.6 |
| C | 0 | 10 | 137918 | 962.76 | 616 | 619 | 142.6 |
| C | 14 | 67 | 92120 | 641.62 | 616 | 619 | 142.6 |
| D | 8 | 195 | 554033 | 3333.44 | 609 | 594 | 166.0 |
| D | 10 | 118 | 206014 | 1237.27 | 609 | 594 | 166.0 |
| D | 2 | 250 | 135916 | 815.06 | 609 | 594 | 166.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

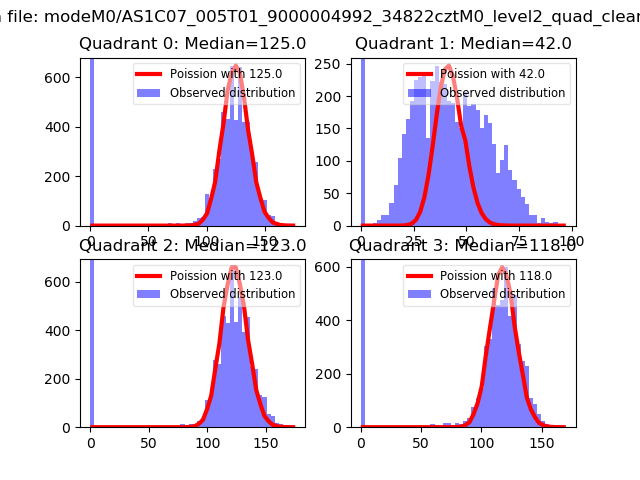

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

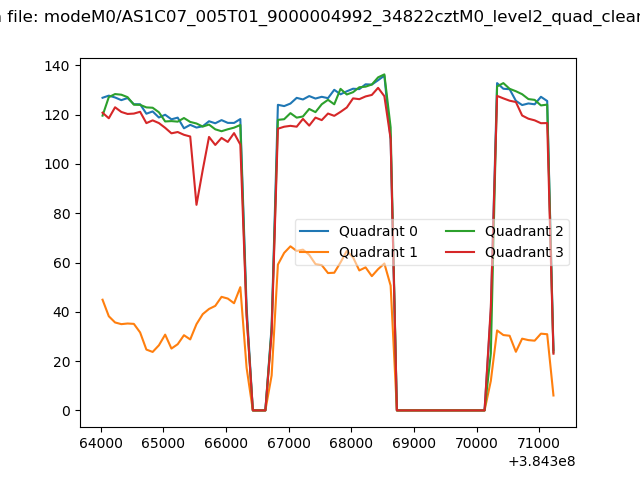

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

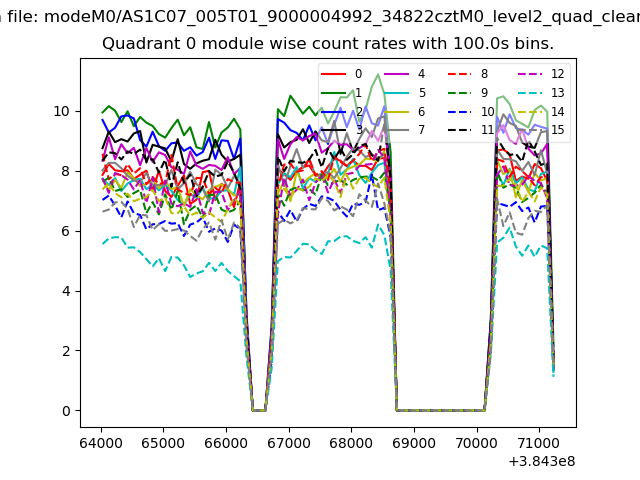

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

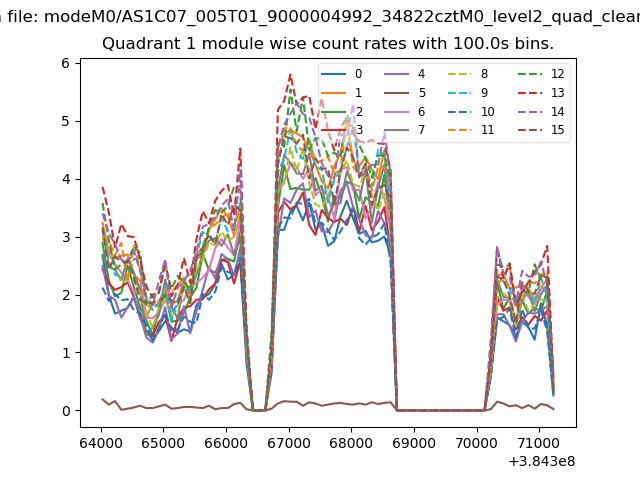

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

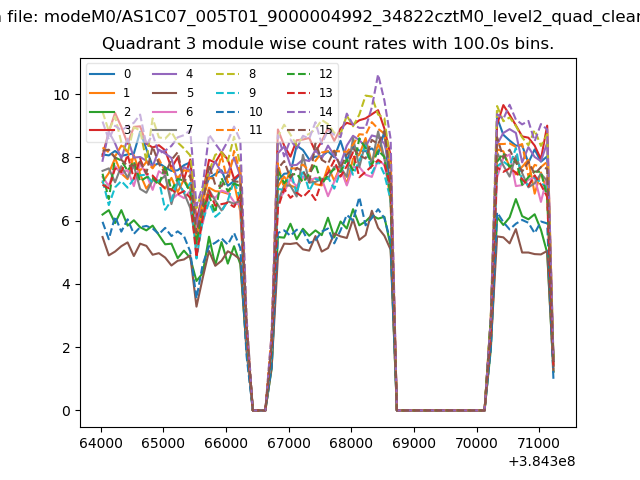

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

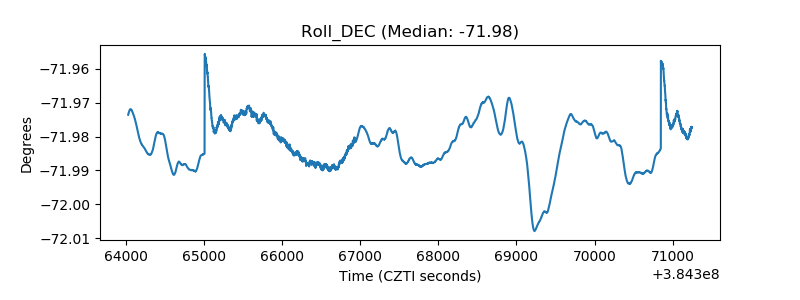

| _Roll_DEC |  |
| _Roll_RA |  |

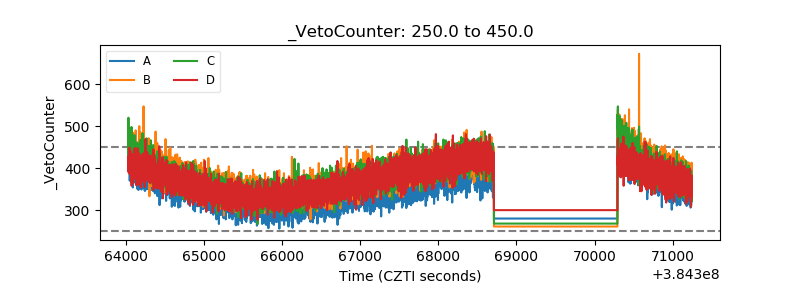

| Veto Counter |  |
