| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004992_34856cztM0_level2.evt | modeM0/AS1C07_005T01_9000004992_34856cztM0_level2_quad_clean.evt |
| Size (bytes) | 675,106,560 | 77,391,360 |
| Size | 643.8 MB | 73.8 MB |
| Events in quadrant A | 7,162,376 | 489,577 |
| Events in quadrant B | 4,929,620 | 512,980 |
| Events in quadrant C | 3,418,609 | 512,940 |
| Events in quadrant D | 4,606,173 | 484,469 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24763 | 3 |
| B | 0 | 17849 | 2 |
| C | 0 | 13015 | 2 |
| D | 0 | 17185 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4894 | 902 | 18.430732% |
| B | 4894 | 875 | 17.879036% |
| C | 4894 | 189 | 3.861872% |
| D | 4894 | 259 | 5.292195% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6956 | 4895 | 789 | 789 | 11.34% | 16.12% |  |
| B | 6956 | 4895 | 663 | 663 | 9.53% | 13.54% |  |
| C | 6956 | 4895 | 175 | 175 | 2.52% | 3.58% |  |
| D | 6956 | 4895 | 282 | 282 | 4.05% | 5.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 4845328 | 41723.77 | 584 | 575 | 116.1 |
| A | 10 | 83 | 45576 | 387.55 | 584 | 575 | 116.1 |
| A | 13 | 6 | 8696 | 69.94 | 584 | 575 | 116.1 |
| B | 5 | 172 | 682466 | 6345.99 | 580 | 569 | 107.5 |
| B | 5 | 14 | 567635 | 5277.33 | 580 | 569 | 107.5 |
| B | 5 | 31 | 566548 | 5267.21 | 580 | 569 | 107.5 |
| C | 0 | 207 | 628045 | 4717.97 | 587 | 593 | 133.0 |
| C | 0 | 10 | 239732 | 1798.15 | 587 | 593 | 133.0 |
| C | 15 | 214 | 220735 | 1655.3 | 587 | 593 | 133.0 |
| D | 12 | 227 | 1007312 | 7199.46 | 584 | 568 | 139.8 |
| D | 1 | 52 | 661148 | 4723.96 | 584 | 568 | 139.8 |
| D | 8 | 195 | 386256 | 2758.14 | 584 | 568 | 139.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

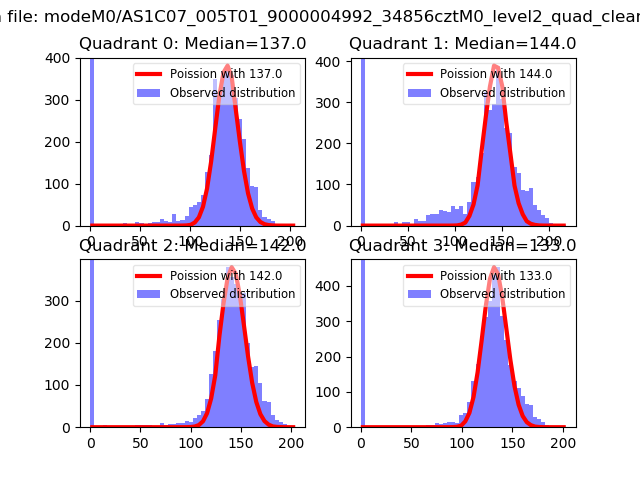

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
