| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004992_34857cztM0_level2.evt | modeM0/AS1C07_005T01_9000004992_34857cztM0_level2_quad_clean.evt |
| Size (bytes) | 718,441,920 | 74,776,320 |
| Size | 685.2 MB | 71.3 MB |
| Events in quadrant A | 7,036,348 | 484,117 |
| Events in quadrant B | 6,226,554 | 447,359 |
| Events in quadrant C | 3,359,072 | 511,298 |
| Events in quadrant D | 4,802,834 | 473,027 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24386 | 3 |
| B | 0 | 21684 | 2 |
| C | 0 | 12892 | 2 |
| D | 0 | 17665 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4959 | 860 | 17.342206% |
| B | 4959 | 1657 | 33.413995% |
| C | 4959 | 200 | 4.033071% |
| D | 4959 | 350 | 7.057875% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7082 | 4960 | 714 | 714 | 10.08% | 14.40% |  |
| B | 7081 | 4958 | 1551 | 1551 | 21.90% | 31.28% |  |
| C | 7082 | 4960 | 169 | 169 | 2.39% | 3.41% |  |
| D | 7082 | 4960 | 328 | 328 | 4.63% | 6.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 4702876 | 41009.34 | 585 | 574 | 114.7 |
| A | 10 | 83 | 44815 | 385.83 | 585 | 574 | 114.7 |
| A | 13 | 6 | 8805 | 71.78 | 585 | 574 | 114.7 |
| B | 5 | 31 | 1289765 | 13279.45 | 521 | 510 | 97.1 |
| B | 5 | 15 | 1282763 | 13207.33 | 521 | 510 | 97.1 |
| B | 5 | 14 | 1032556 | 10630.17 | 521 | 510 | 97.1 |
| C | 0 | 207 | 465728 | 3402.14 | 601 | 608 | 136.7 |
| C | 0 | 10 | 272441 | 1988.33 | 601 | 608 | 136.7 |
| C | 15 | 214 | 222264 | 1621.31 | 601 | 608 | 136.7 |
| D | 12 | 227 | 1592459 | 11123.32 | 598 | 582 | 143.1 |
| D | 8 | 195 | 407642 | 2844.35 | 598 | 582 | 143.1 |
| D | 13 | 249 | 198350 | 1381.91 | 598 | 582 | 143.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

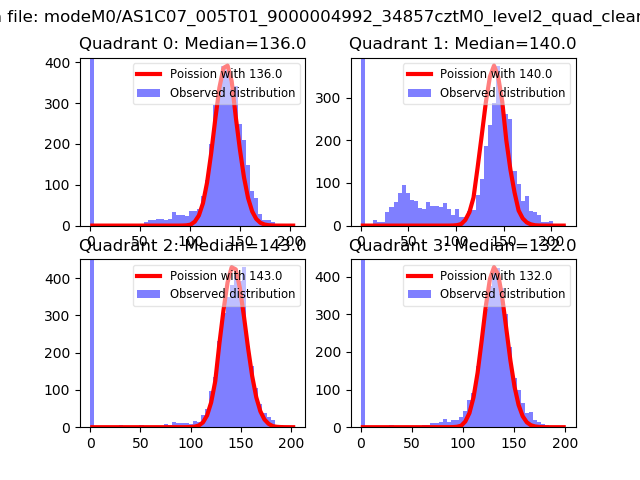

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

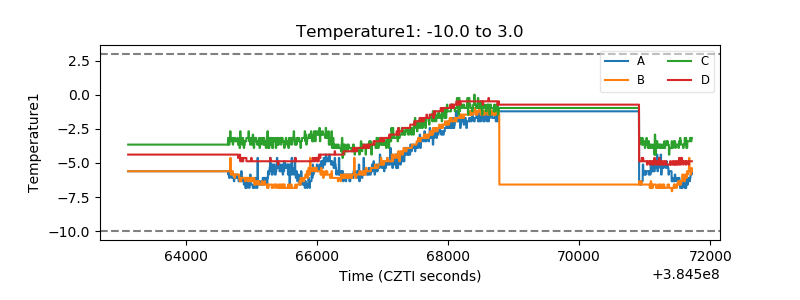

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

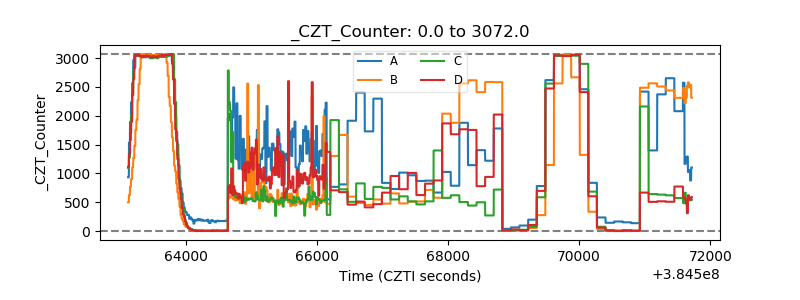

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

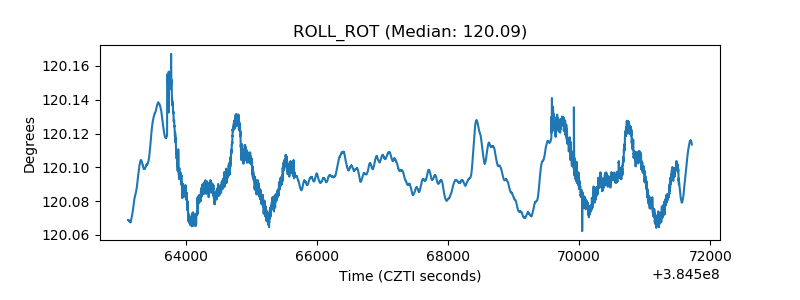

| _ROLL_ROT |  |

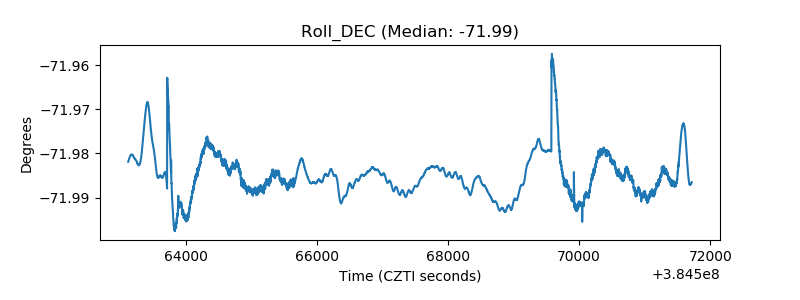

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
