| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004992_34865cztM0_level2.evt | modeM0/AS1C07_005T01_9000004992_34865cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,733,200,640 | 207,843,840 |
| Size | 2.5 GB | 198.2 MB |
| Events in quadrant A | 20,559,259 | 1,316,462 |
| Events in quadrant B | 31,889,646 | 1,006,767 |
| Events in quadrant C | 8,667,311 | 1,578,422 |
| Events in quadrant D | 20,631,669 | 1,323,443 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43 | 0 |
| B | 0 | 43 | 0 |
| C | 0 | 43 | 0 |
| D | 0 | 43 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 71620 | 4 |
| B | 0 | 105197 | 3 |
| C | 0 | 35426 | 3 |
| D | 0 | 71787 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 312 | 0 |
| B | 0 | 312 | 0 |
| C | 0 | 312 | 0 |
| D | 0 | 312 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15393 | 5167 | 33.567206% |
| B | 15393 | 11362 | 73.812772% |
| C | 15393 | 214 | 1.390242% |
| D | 15393 | 4711 | 30.604820% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

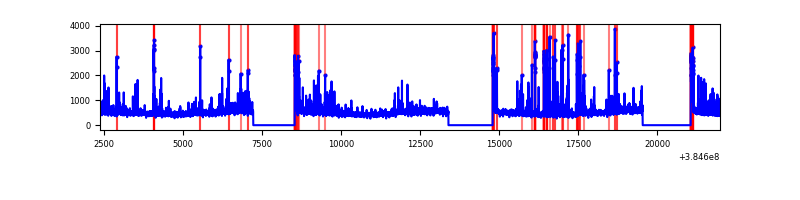

| A | 19631 | 15395 | 4336 | 4336 | 22.09% | 28.16% |  |

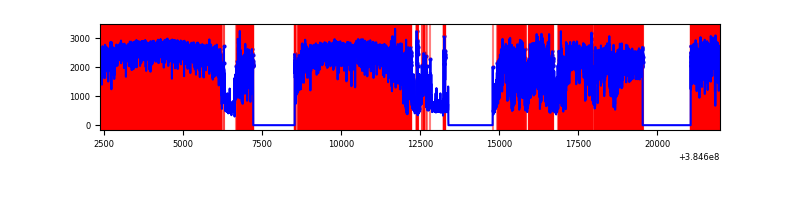

| B | 19630 | 15394 | 10324 | 10324 | 52.59% | 67.07% |  |
| C | 19631 | 15396 | 186 | 186 | 0.95% | 1.21% |  |
| D | 19631 | 15396 | 4704 | 4704 | 23.96% | 30.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 14724021 | 50458.0 | 1465 | 1433 | 291.8 |
| A | 10 | 83 | 87193 | 293.92 | 1465 | 1433 | 291.8 |
| A | 15 | 174 | 39001 | 128.75 | 1465 | 1433 | 291.8 |
| B | 5 | 31 | 12498229 | 53929.41 | 1221 | 1188 | 231.7 |
| B | 5 | 15 | 9563531 | 41265.09 | 1221 | 1188 | 231.7 |
| B | 5 | 14 | 2620623 | 11303.84 | 1221 | 1188 | 231.7 |
| C | 15 | 214 | 686798 | 1760.0 | 1694 | 1704 | 389.3 |
| C | 0 | 207 | 660141 | 1691.52 | 1694 | 1704 | 389.3 |
| C | 0 | 10 | 311144 | 794.95 | 1694 | 1704 | 389.3 |
| D | 12 | 227 | 9936772 | 26401.14 | 1532 | 1489 | 376.3 |
| D | 8 | 195 | 1218858 | 3234.93 | 1532 | 1489 | 376.3 |
| D | 12 | 233 | 1169423 | 3103.56 | 1532 | 1489 | 376.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

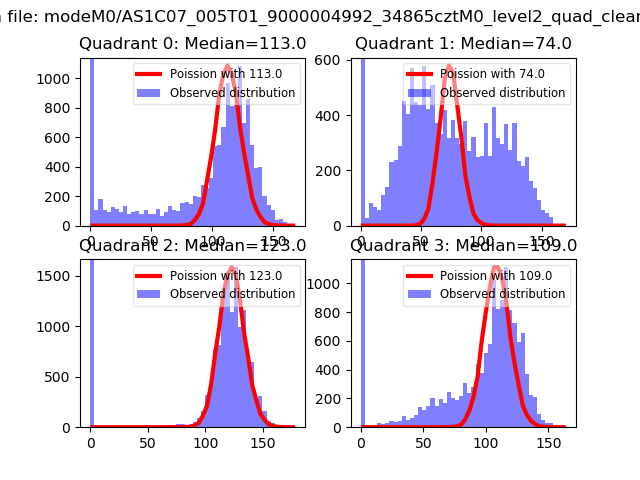

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

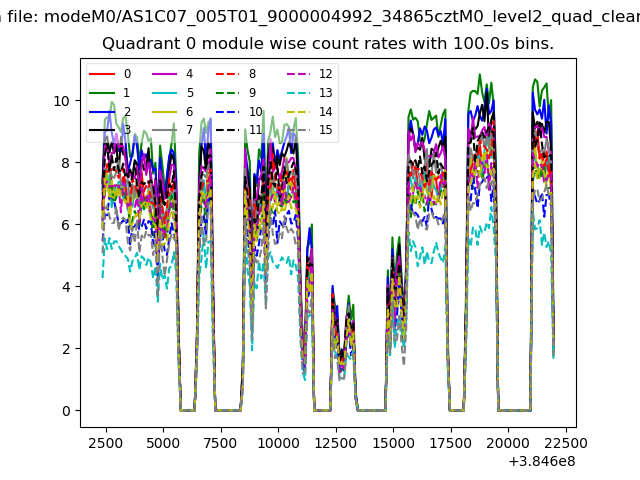

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

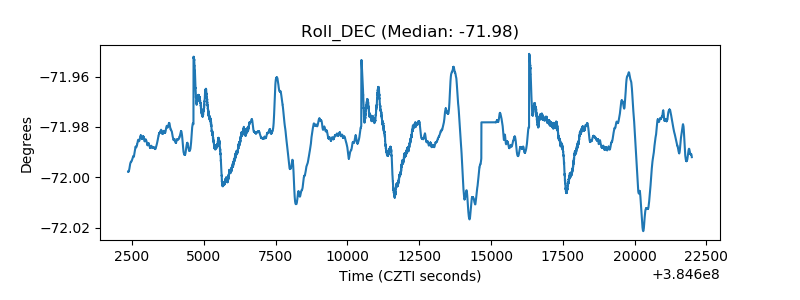

| _Roll_DEC |  |

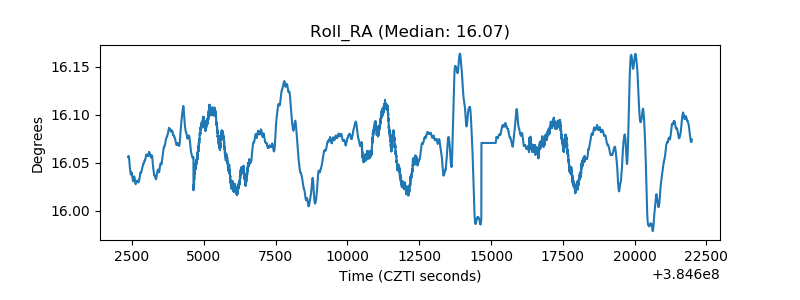

| _Roll_RA |  |

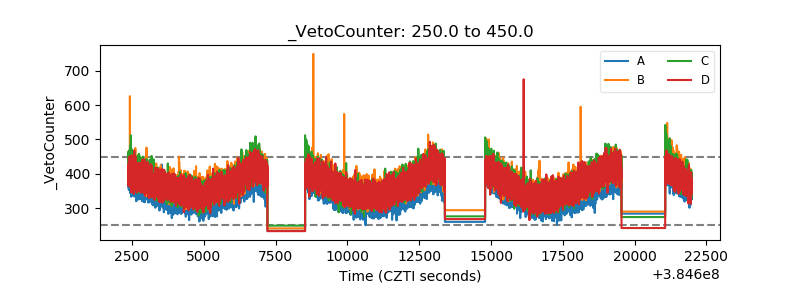

| Veto Counter |  |
