| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_005T01_9000004992_34887cztM0_level2.evt | modeM0/AS1C07_005T01_9000004992_34887cztM0_level2_quad_clean.evt |
| Size (bytes) | 422,881,920 | 69,796,800 |
| Size | 403.3 MB | 66.6 MB |
| Events in quadrant A | 2,419,478 | 457,397 |
| Events in quadrant B | 3,680,310 | 450,304 |
| Events in quadrant C | 2,703,101 | 451,896 |
| Events in quadrant D | 3,686,193 | 424,874 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 40 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9942 | 2 |
| B | 0 | 13949 | 2 |
| C | 0 | 10577 | 2 |
| D | 0 | 14290 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 96 | 0 |
| B | 0 | 96 | 0 |
| C | 0 | 96 | 0 |
| D | 0 | 96 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4681 | 39 | 0.833155% |
| B | 4681 | 321 | 6.857509% |
| C | 4681 | 64 | 1.367229% |
| D | 4681 | 76 | 1.623585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6804 | 4682 | 23 | 23 | 0.34% | 0.49% |  |
| B | 6804 | 4682 | 250 | 250 | 3.67% | 5.34% |  |
| C | 6804 | 4682 | 51 | 51 | 0.75% | 1.09% |  |
| D | 6804 | 4682 | 51 | 51 | 0.75% | 1.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 92729 | 804.73 | 580 | 571 | 114.5 |
| A | 10 | 83 | 55923 | 483.34 | 580 | 571 | 114.5 |
| A | 13 | 6 | 17480 | 147.65 | 580 | 571 | 114.5 |
| B | 5 | 200 | 613725 | 5838.24 | 570 | 557 | 105.0 |
| B | 0 | 190 | 297154 | 2824.03 | 570 | 557 | 105.0 |
| B | 5 | 172 | 234119 | 2223.84 | 570 | 557 | 105.0 |
| C | 15 | 214 | 213839 | 1655.82 | 565 | 568 | 128.8 |
| C | 0 | 10 | 158296 | 1224.59 | 565 | 568 | 128.8 |
| C | 0 | 207 | 102526 | 791.6 | 565 | 568 | 128.8 |
| D | 8 | 195 | 838835 | 5862.77 | 558 | 547 | 143.0 |
| D | 2 | 31 | 227208 | 1585.21 | 558 | 547 | 143.0 |
| D | 13 | 249 | 130486 | 908.76 | 558 | 547 | 143.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

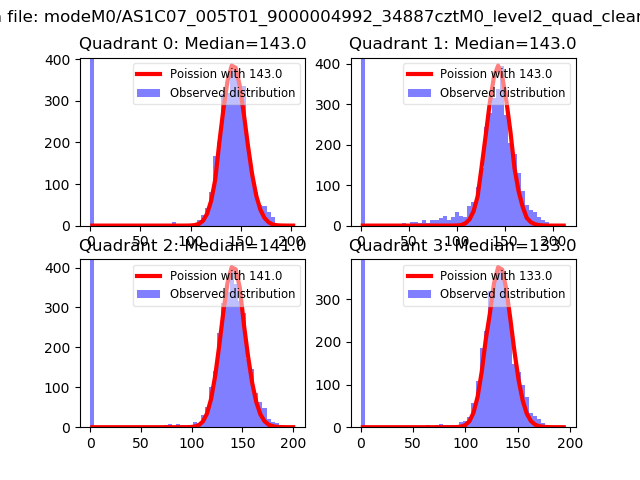

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
