| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_053T01_9000004996_34895cztM0_level2.evt | modeM0/AS1A11_053T01_9000004996_34895cztM0_level2_quad_clean.evt |
| Size (bytes) | 134,588,160 | 19,261,440 |
| Size | 128.4 MB | 18.4 MB |
| Events in quadrant A | 785,896 | 118,698 |
| Events in quadrant B | 862,850 | 120,488 |
| Events in quadrant C | 899,940 | 119,845 |
| Events in quadrant D | 1,423,566 | 112,970 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3221 | 2 |
| B | 0 | 3421 | 1 |
| C | 0 | 3514 | 1 |
| D | 0 | 5240 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1484 | 4 | 0.269542% |
| B | 1484 | 16 | 1.078167% |
| C | 1484 | 43 | 2.897574% |
| D | 1484 | 93 | 6.266846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3127 | 1485 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3127 | 1485 | 11 | 11 | 0.35% | 0.74% |  |
| C | 3127 | 1485 | 31 | 31 | 0.99% | 2.09% |  |
| D | 3127 | 1485 | 57 | 57 | 1.82% | 3.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 28164 | 699.02 | 191 | 188 | 40.0 |
| A | 7 | 3 | 7799 | 190.17 | 191 | 188 | 40.0 |
| A | 7 | 16 | 6179 | 149.69 | 191 | 188 | 40.0 |
| B | 5 | 172 | 73554 | 1898.4 | 189 | 184 | 38.6 |
| B | 0 | 190 | 20207 | 518.08 | 189 | 184 | 38.6 |
| B | 0 | 218 | 11992 | 305.52 | 189 | 184 | 38.6 |
| C | 0 | 10 | 100549 | 2274.8 | 183 | 184 | 44.1 |
| C | 15 | 214 | 69970 | 1581.72 | 183 | 184 | 44.1 |
| C | 14 | 67 | 14077 | 314.89 | 183 | 184 | 44.1 |
| D | 8 | 195 | 361933 | 7845.52 | 182 | 176 | 46.1 |
| D | 1 | 52 | 114498 | 2479.33 | 182 | 176 | 46.1 |
| D | 7 | 223 | 102493 | 2218.97 | 182 | 176 | 46.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

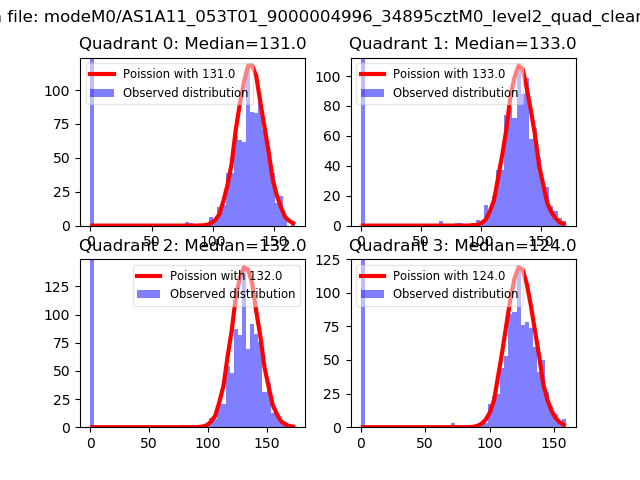

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

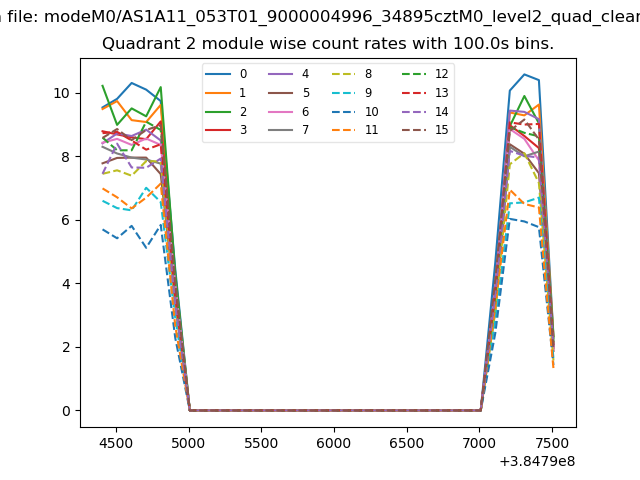

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

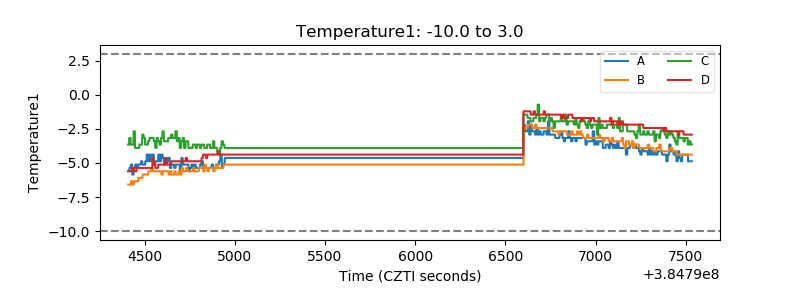

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

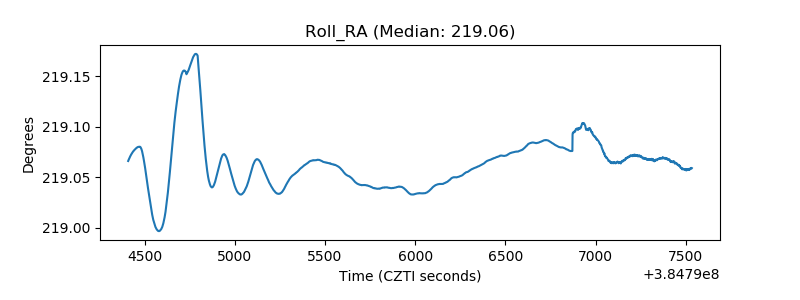

| _Roll_RA |  |

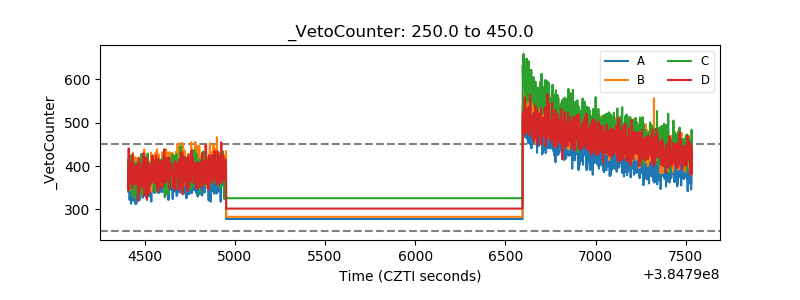

| Veto Counter |  |
