| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_053T01_9000004996_34900cztM0_level2.evt | modeM0/AS1A11_053T01_9000004996_34900cztM0_level2_quad_clean.evt |
| Size (bytes) | 397,653,120 | 86,731,200 |
| Size | 379.2 MB | 82.7 MB |
| Events in quadrant A | 2,389,740 | 566,693 |
| Events in quadrant B | 2,947,268 | 585,024 |
| Events in quadrant C | 2,722,451 | 593,706 |
| Events in quadrant D | 3,647,558 | 534,379 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 41 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10245 | 3 |
| B | 0 | 11909 | 2 |
| C | 0 | 10973 | 2 |
| D | 0 | 14213 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4938 | 7 | 0.141758% |
| B | 4938 | 113 | 2.288376% |
| C | 4938 | 46 | 0.931551% |
| D | 4938 | 240 | 4.860267% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9094 | 4940 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9094 | 4940 | 72 | 72 | 0.79% | 1.46% |  |
| C | 9094 | 4940 | 32 | 32 | 0.35% | 0.65% |  |
| D | 9094 | 4940 | 204 | 204 | 2.24% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 58138 | 490.72 | 594 | 584 | 117.3 |
| A | 9 | 143 | 16743 | 137.78 | 594 | 584 | 117.3 |
| A | 13 | 6 | 9014 | 71.88 | 594 | 584 | 117.3 |
| B | 5 | 200 | 242134 | 2148.18 | 599 | 584 | 112.4 |
| B | 0 | 190 | 146331 | 1296.18 | 599 | 584 | 112.4 |
| B | 5 | 172 | 121251 | 1073.13 | 599 | 584 | 112.4 |
| C | 15 | 214 | 224900 | 1638.99 | 595 | 599 | 136.9 |
| C | 0 | 10 | 99866 | 725.35 | 595 | 599 | 136.9 |
| C | 14 | 67 | 34299 | 246.25 | 595 | 599 | 136.9 |
| D | 8 | 195 | 744488 | 5384.67 | 568 | 555 | 138.2 |
| D | 13 | 249 | 235694 | 1701.96 | 568 | 555 | 138.2 |
| D | 10 | 118 | 133550 | 962.63 | 568 | 555 | 138.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

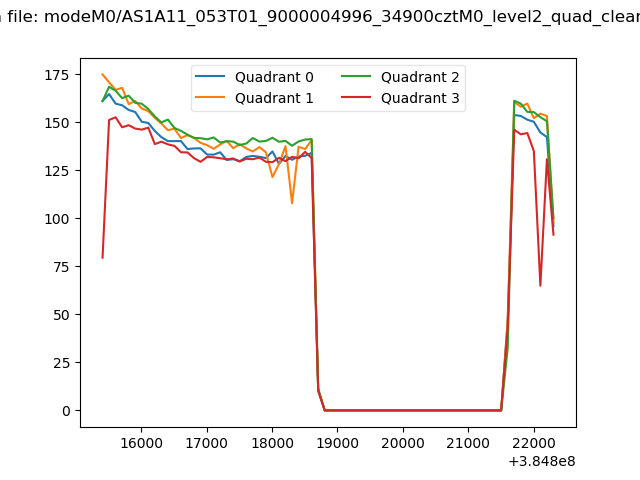

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

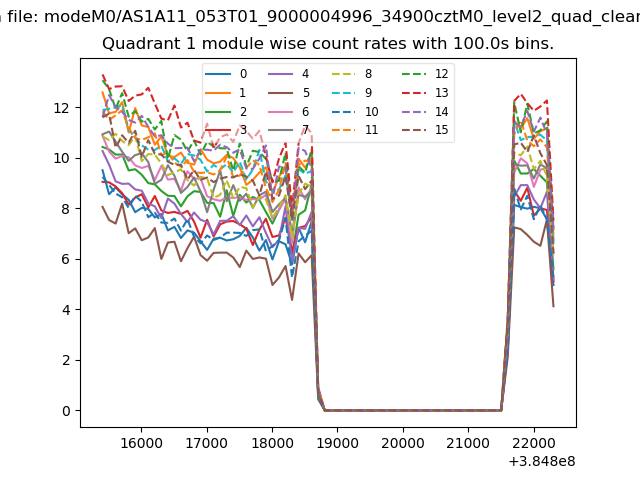

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

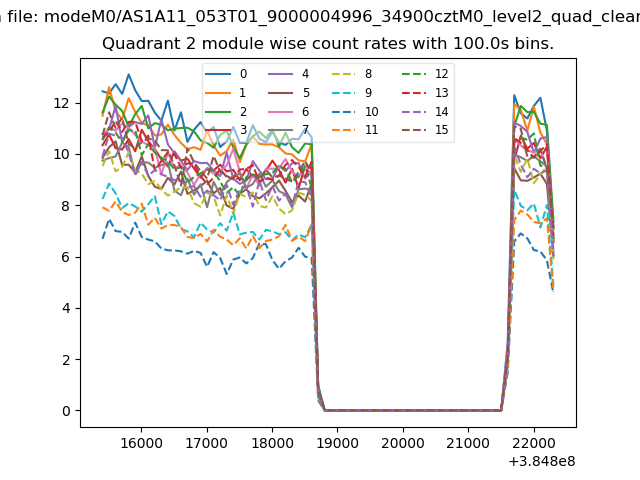

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

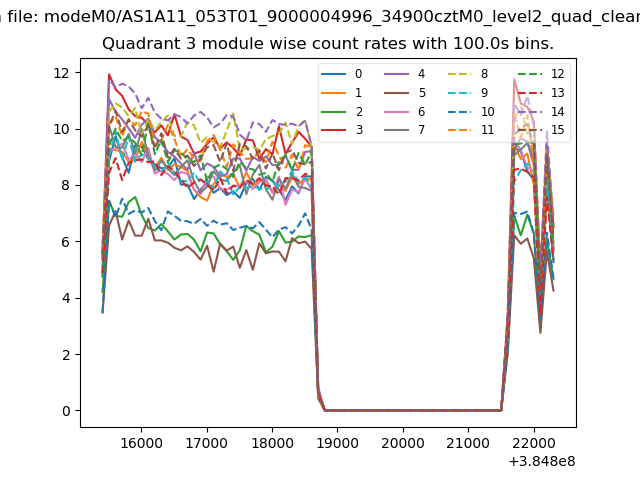

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

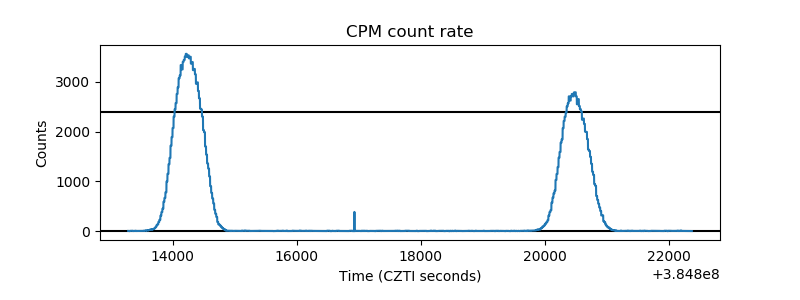

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

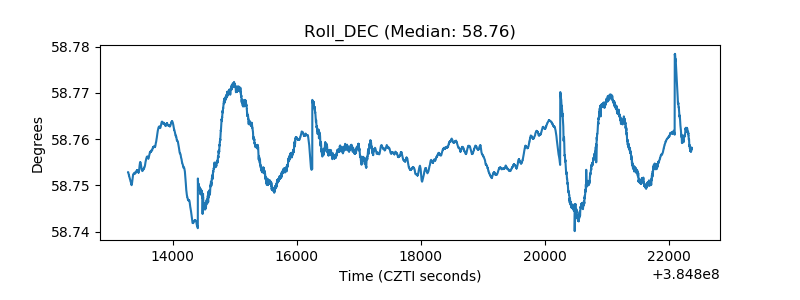

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
