| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T05_9000004998_34904cztM0_level2.evt | modeM0/AS1A11_065T05_9000004998_34904cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,398,080 | 67,239,360 |
| Size | 488.7 MB | 64.1 MB |
| Events in quadrant A | 2,906,022 | 410,782 |
| Events in quadrant B | 3,905,048 | 417,012 |
| Events in quadrant C | 3,259,062 | 406,406 |
| Events in quadrant D | 5,027,924 | 369,206 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12558 | 3 |
| B | 0 | 15504 | 2 |
| C | 0 | 13164 | 2 |
| D | 0 | 19269 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6194 | 7 | 0.113013% |
| B | 6194 | 194 | 3.132063% |
| C | 6194 | 36 | 0.581208% |
| D | 6194 | 263 | 4.246045% |

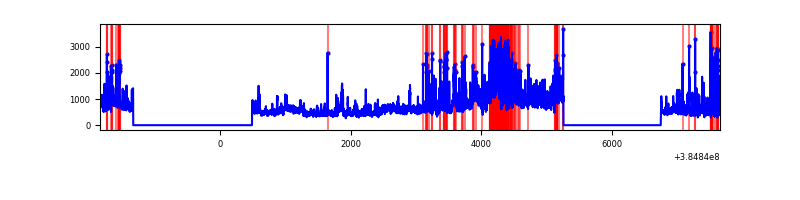

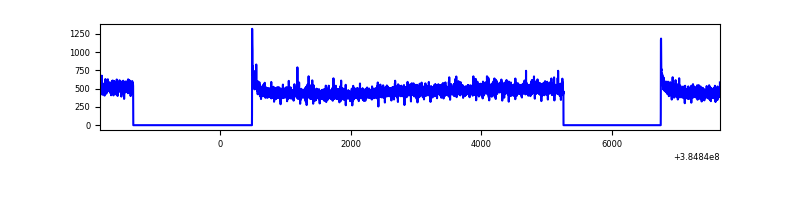

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9510 | 6196 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9510 | 6196 | 149 | 149 | 1.57% | 2.40% |  |
| C | 9510 | 6196 | 30 | 30 | 0.32% | 0.48% |  |
| D | 9510 | 6196 | 237 | 237 | 2.49% | 3.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 61999 | 413.43 | 730 | 714 | 148.2 |
| A | 13 | 6 | 20791 | 135.44 | 730 | 714 | 148.2 |
| A | 13 | 254 | 11312 | 71.49 | 730 | 714 | 148.2 |
| B | 5 | 200 | 577553 | 4130.41 | 722 | 704 | 139.7 |
| B | 5 | 172 | 205546 | 1466.73 | 722 | 704 | 139.7 |
| B | 4 | 232 | 103364 | 735.07 | 722 | 704 | 139.7 |
| C | 15 | 214 | 282997 | 1688.26 | 713 | 717 | 167.2 |
| C | 0 | 10 | 127383 | 757.56 | 713 | 717 | 167.2 |
| C | 14 | 67 | 26651 | 155.11 | 713 | 717 | 167.2 |
| D | 8 | 195 | 870245 | 5057.19 | 701 | 682 | 171.9 |
| D | 12 | 227 | 495972 | 2880.5 | 701 | 682 | 171.9 |
| D | 3 | 13 | 493533 | 2866.31 | 701 | 682 | 171.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

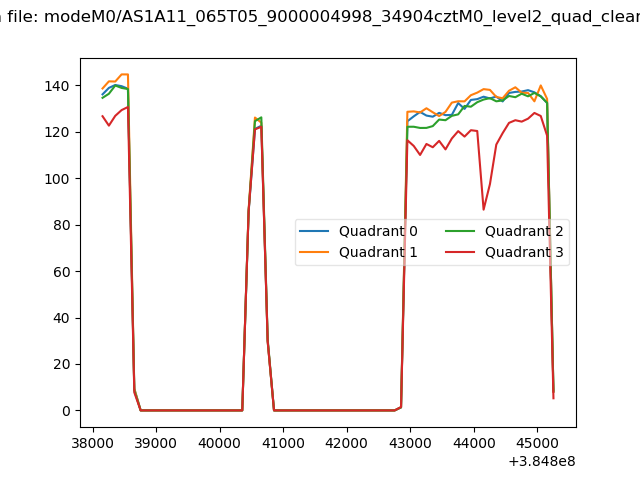

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

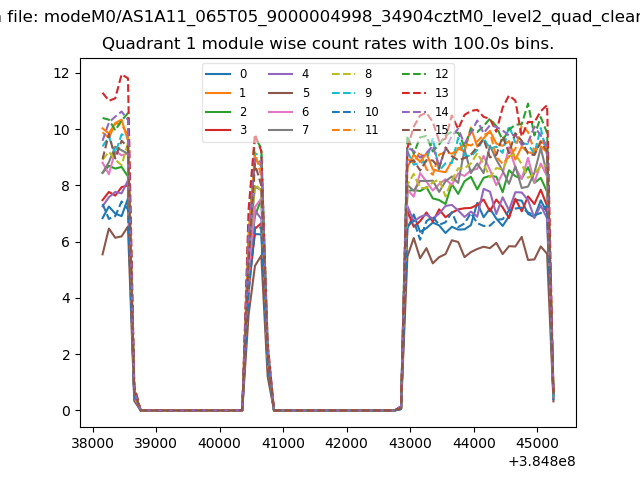

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

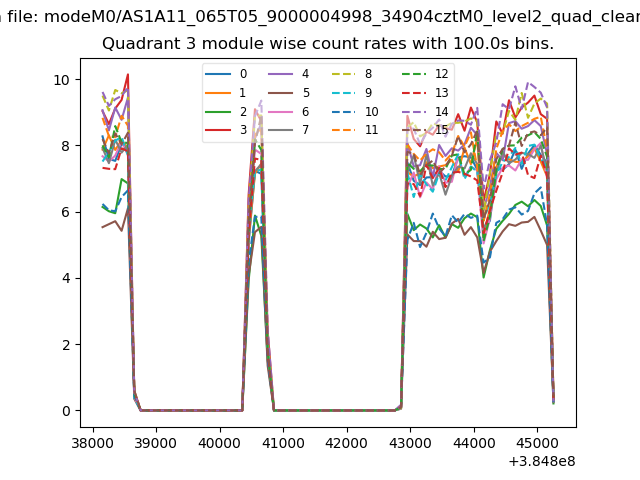

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

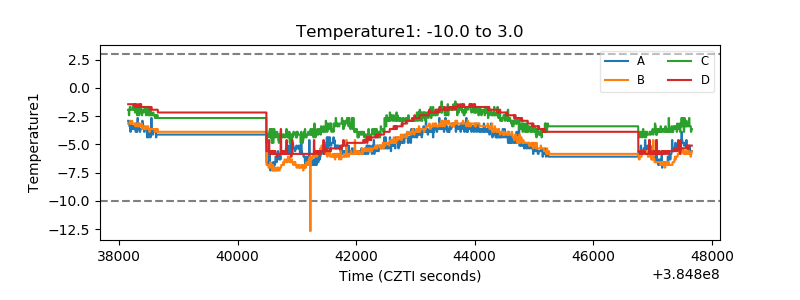

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

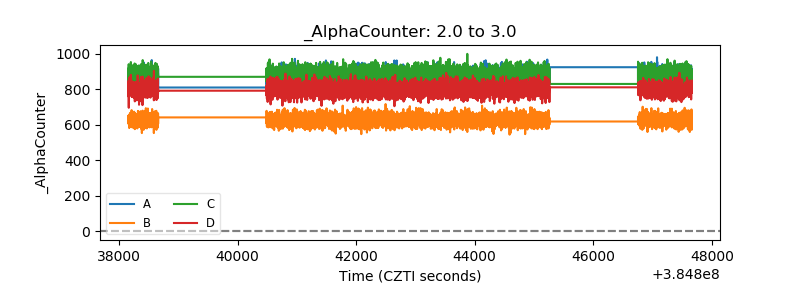

| Alpha Counter |  |
| _CPM_Rate |  |

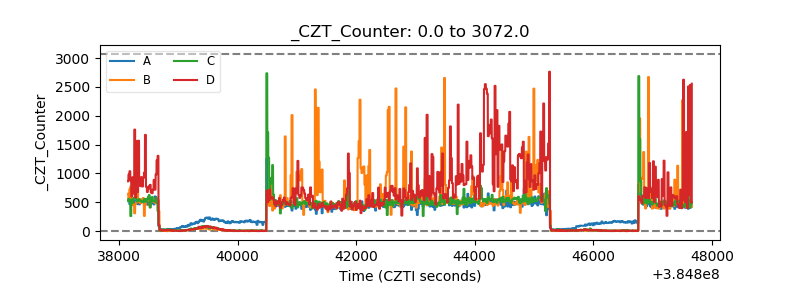

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
