| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T05_9000004998_34908cztM0_level2.evt | modeM0/AS1A11_065T05_9000004998_34908cztM0_level2_quad_clean.evt |
| Size (bytes) | 719,441,280 | 122,155,200 |
| Size | 686.1 MB | 116.5 MB |
| Events in quadrant A | 4,208,528 | 785,340 |
| Events in quadrant B | 4,710,277 | 798,717 |
| Events in quadrant C | 4,608,596 | 777,032 |
| Events in quadrant D | 7,648,431 | 709,969 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 184 | 0 |
| B | 0 | 184 | 0 |
| C | 0 | 184 | 0 |
| D | 0 | 184 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18336 | 2 |
| B | 0 | 19766 | 2 |
| C | 0 | 18775 | 2 |
| D | 0 | 29165 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9060 | 9 | 0.099338% |
| B | 9060 | 78 | 0.860927% |
| C | 9060 | 52 | 0.573951% |
| D | 9060 | 405 | 4.470199% |

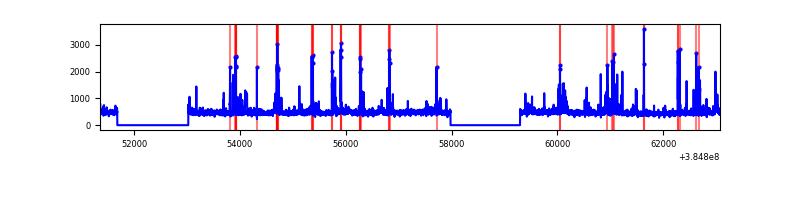

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11718 | 9062 | 0 | 0 | 0.00% | 0.00% |  |
| B | 11718 | 9062 | 45 | 45 | 0.38% | 0.50% |  |
| C | 11718 | 9062 | 42 | 42 | 0.36% | 0.46% |  |
| D | 11718 | 9062 | 379 | 379 | 3.23% | 4.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 71163 | 329.81 | 1056 | 1035 | 212.6 |
| A | 15 | 223 | 37662 | 172.25 | 1056 | 1035 | 212.6 |
| A | 13 | 254 | 15133 | 66.3 | 1056 | 1035 | 212.6 |
| B | 5 | 172 | 214947 | 1056.8 | 1047 | 1017 | 202.4 |
| B | 4 | 232 | 145003 | 711.28 | 1047 | 1017 | 202.4 |
| B | 0 | 190 | 60736 | 295.01 | 1047 | 1017 | 202.4 |
| C | 15 | 214 | 400155 | 1658.75 | 1027 | 1032 | 240.6 |
| C | 0 | 10 | 160084 | 661.02 | 1027 | 1032 | 240.6 |
| C | 14 | 67 | 21788 | 86.26 | 1027 | 1032 | 240.6 |
| D | 8 | 195 | 1762162 | 7050.18 | 1012 | 983 | 249.8 |
| D | 1 | 52 | 932318 | 3728.23 | 1012 | 983 | 249.8 |
| D | 13 | 249 | 344381 | 1374.66 | 1012 | 983 | 249.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

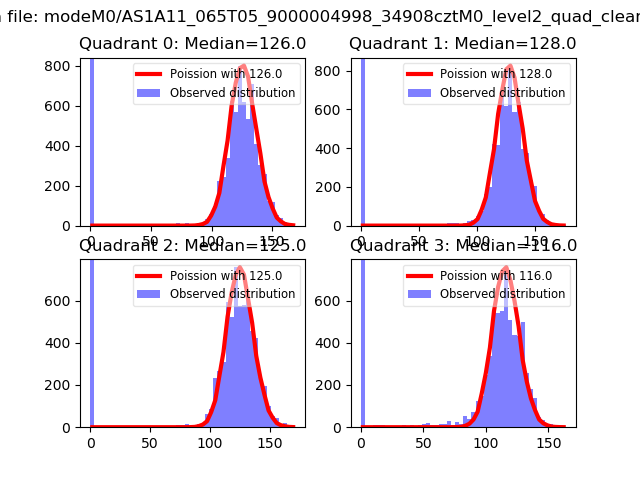

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

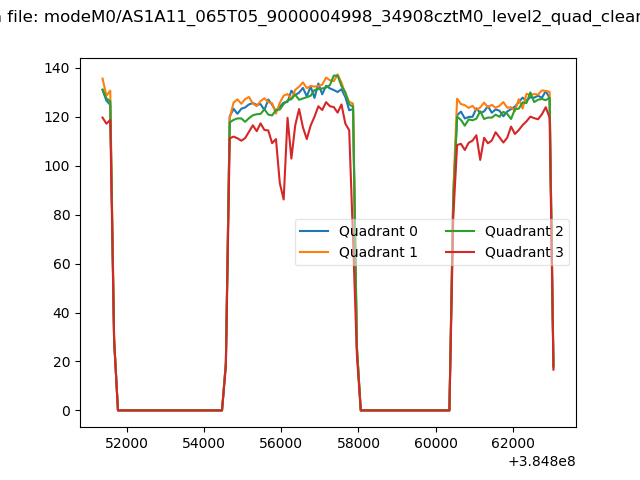

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

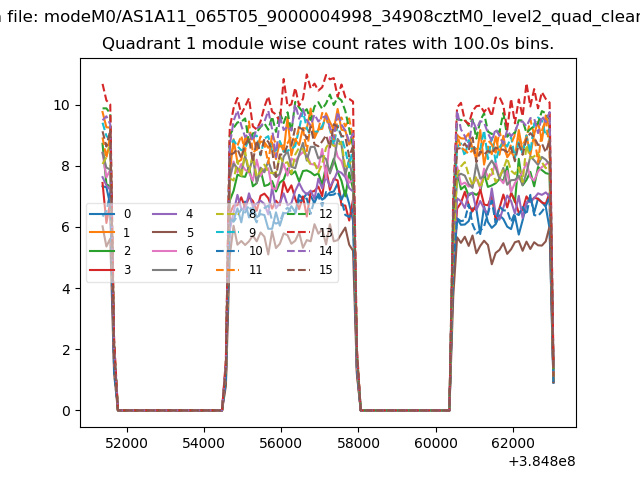

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

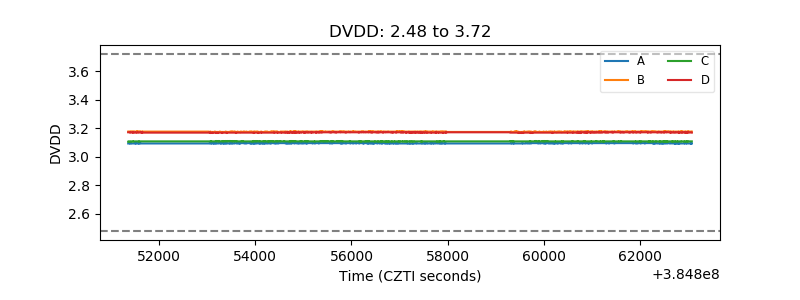

| D_VDD |  |

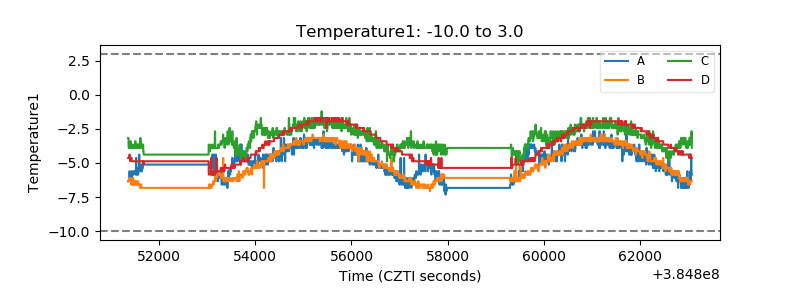

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

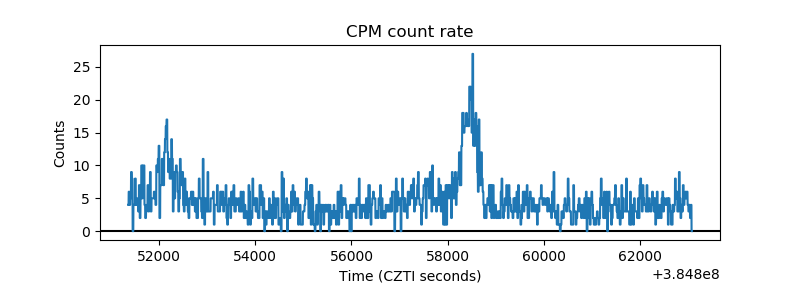

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

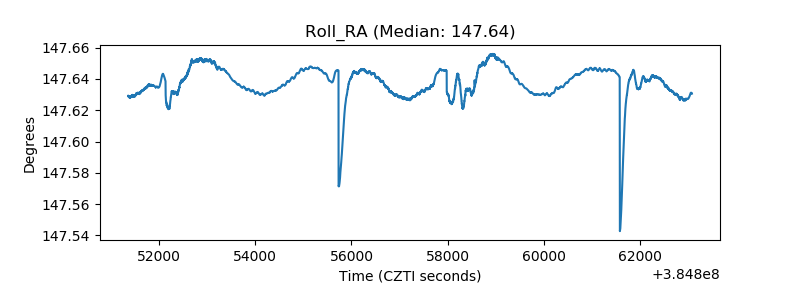

| _Roll_RA |  |
| Veto Counter |  |
