| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000005002_34914cztM0_level2.evt | modeM0/AS1A11_086T01_9000005002_34914cztM0_level2_quad_clean.evt |
| Size (bytes) | 451,163,520 | 74,436,480 |
| Size | 430.3 MB | 71.0 MB |
| Events in quadrant A | 2,415,665 | 489,632 |
| Events in quadrant B | 3,368,392 | 489,789 |
| Events in quadrant C | 2,832,562 | 492,242 |
| Events in quadrant D | 4,705,901 | 429,806 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10324 | 3 |
| B | 0 | 13134 | 2 |
| C | 0 | 11326 | 2 |
| D | 0 | 17460 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5026 | 3 | 0.059690% |
| B | 5026 | 294 | 5.849582% |
| C | 5026 | 77 | 1.532033% |
| D | 5026 | 468 | 9.311580% |

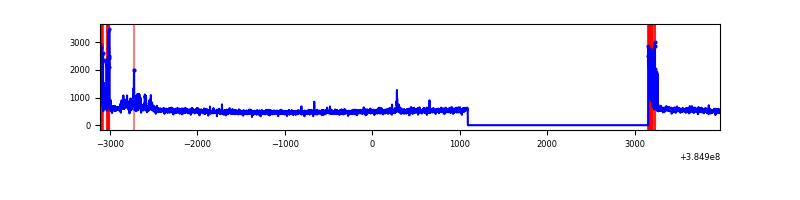

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7090 | 5027 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7090 | 5027 | 212 | 212 | 2.99% | 4.22% |  |
| C | 7090 | 5027 | 64 | 64 | 0.90% | 1.27% |  |
| D | 7090 | 5027 | 456 | 456 | 6.43% | 9.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 58939 | 482.5 | 605 | 593 | 120.9 |
| A | 13 | 6 | 14726 | 116.87 | 605 | 593 | 120.9 |
| A | 13 | 254 | 9017 | 69.66 | 605 | 593 | 120.9 |
| B | 5 | 172 | 903220 | 8067.89 | 593 | 578 | 111.9 |
| B | 3 | 112 | 59964 | 530.8 | 593 | 578 | 111.9 |
| B | 15 | 85 | 23857 | 208.07 | 593 | 578 | 111.9 |
| C | 0 | 10 | 214998 | 1543.3 | 598 | 605 | 138.9 |
| C | 15 | 214 | 212075 | 1522.26 | 598 | 605 | 138.9 |
| C | 12 | 250 | 64402 | 459.24 | 598 | 605 | 138.9 |
| D | 7 | 223 | 1282764 | 9385.78 | 564 | 549 | 136.6 |
| D | 8 | 195 | 880900 | 6444.14 | 564 | 549 | 136.6 |
| D | 1 | 52 | 159405 | 1162.82 | 564 | 549 | 136.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

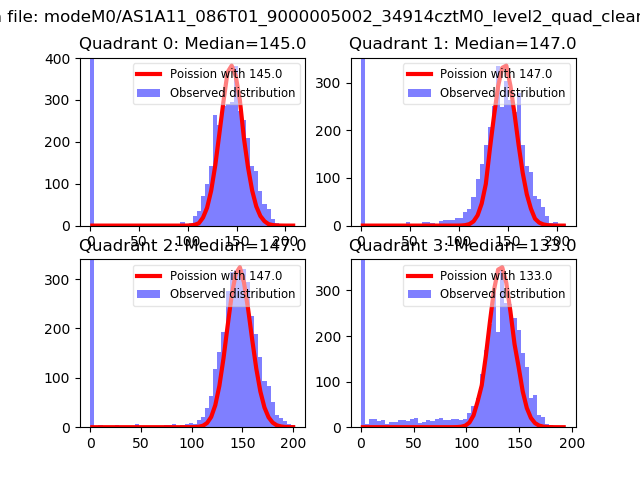

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

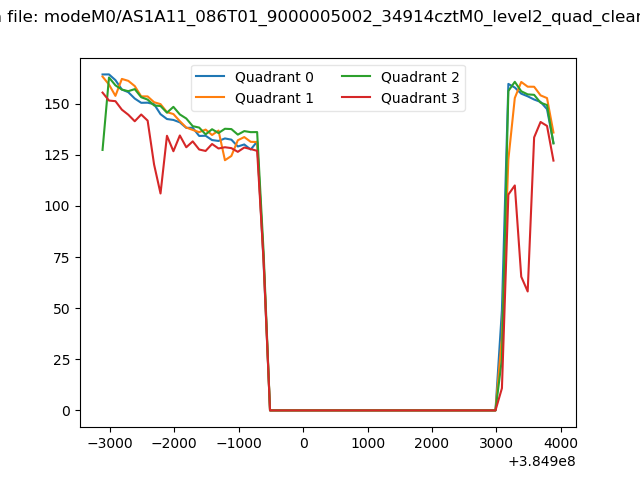

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

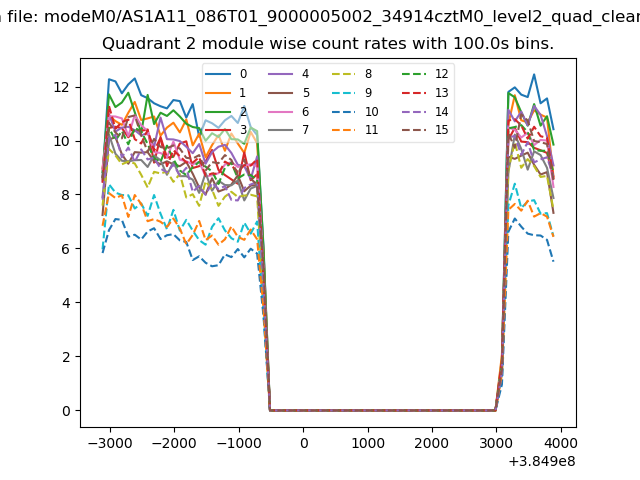

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

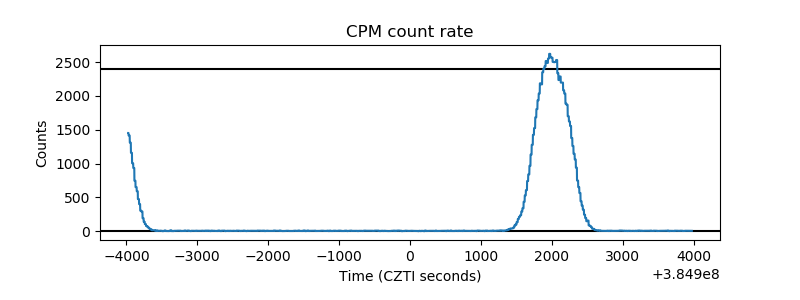

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

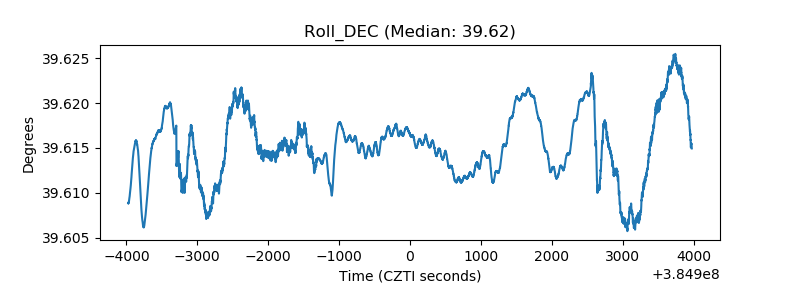

| _Roll_DEC |  |

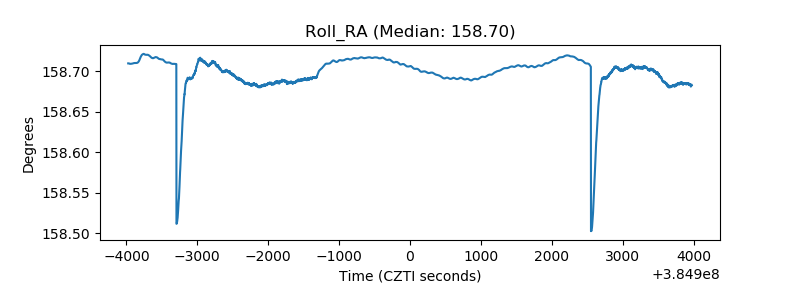

| _Roll_RA |  |
| Veto Counter |  |
