| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T12_9000005004_34932cztM0_level2.evt | modeM0/AS1A11_065T12_9000005004_34932cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,295,360 | 52,297,920 |
| Size | 439.9 MB | 49.9 MB |
| Events in quadrant A | 3,231,763 | 309,906 |
| Events in quadrant B | 2,961,410 | 315,916 |
| Events in quadrant C | 3,628,903 | 304,316 |
| Events in quadrant D | 3,792,484 | 285,488 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13003 | 3 |
| B | 0 | 12270 | 2 |
| C | 0 | 14147 | 2 |
| D | 0 | 15021 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5250 | 23 | 0.438095% |
| B | 5250 | 77 | 1.466667% |
| C | 5250 | 204 | 3.885714% |
| D | 5250 | 153 | 2.914286% |

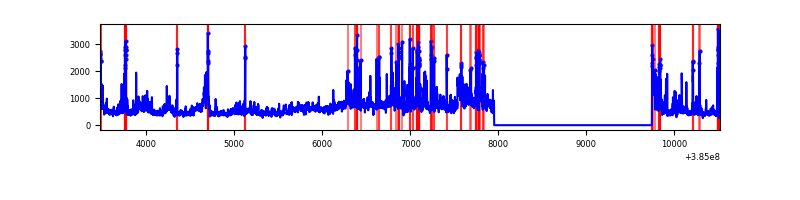

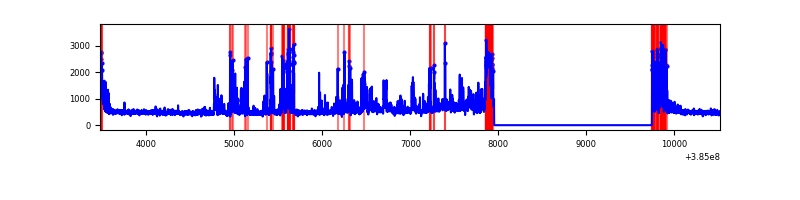

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7043 | 5251 | 12 | 12 | 0.17% | 0.23% |  |
| B | 7043 | 5251 | 50 | 50 | 0.71% | 0.95% |  |
| C | 7043 | 5251 | 196 | 196 | 2.78% | 3.73% |  |
| D | 7042 | 5250 | 139 | 139 | 1.97% | 2.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 810504 | 6718.99 | 596 | 584 | 120.5 |
| A | 10 | 83 | 65952 | 542.28 | 596 | 584 | 120.5 |
| A | 15 | 237 | 38640 | 315.71 | 596 | 584 | 120.5 |
| B | 5 | 172 | 305344 | 2659.58 | 594 | 579 | 114.6 |
| B | 0 | 190 | 156289 | 1358.83 | 594 | 579 | 114.6 |
| B | 4 | 232 | 62949 | 544.28 | 594 | 579 | 114.6 |
| C | 4 | 254 | 813474 | 6037.5 | 578 | 583 | 134.6 |
| C | 0 | 10 | 279423 | 2071.0 | 578 | 583 | 134.6 |
| C | 15 | 214 | 221071 | 1637.61 | 578 | 583 | 134.6 |
| D | 8 | 195 | 789618 | 5590.15 | 574 | 557 | 141.2 |
| D | 13 | 249 | 135102 | 953.19 | 574 | 557 | 141.2 |
| D | 1 | 52 | 126096 | 889.39 | 574 | 557 | 141.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

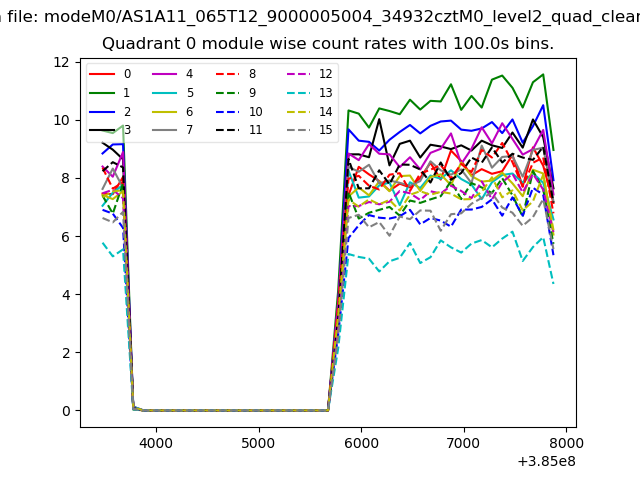

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

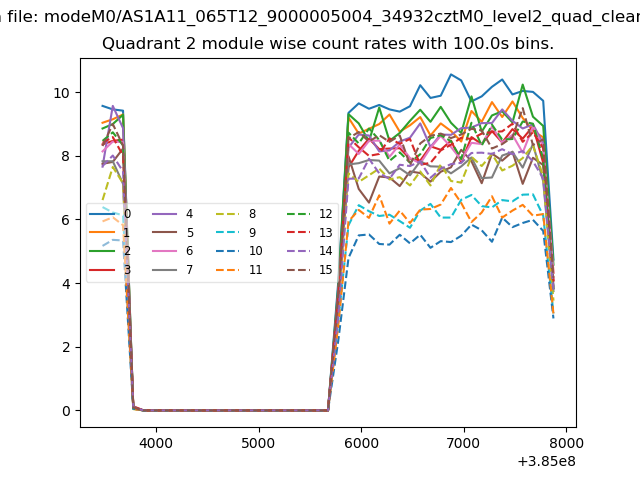

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

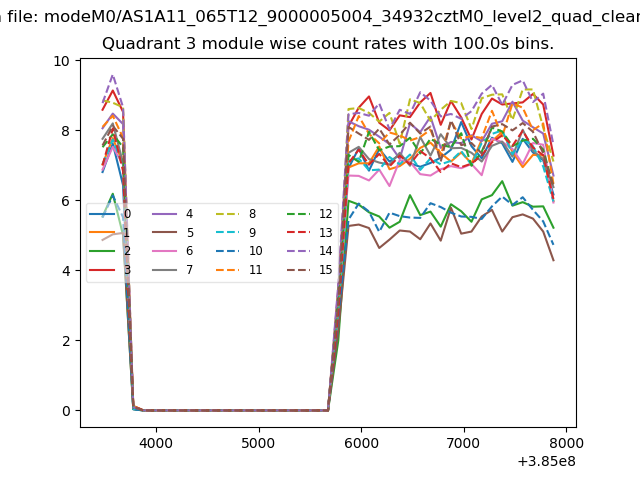

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

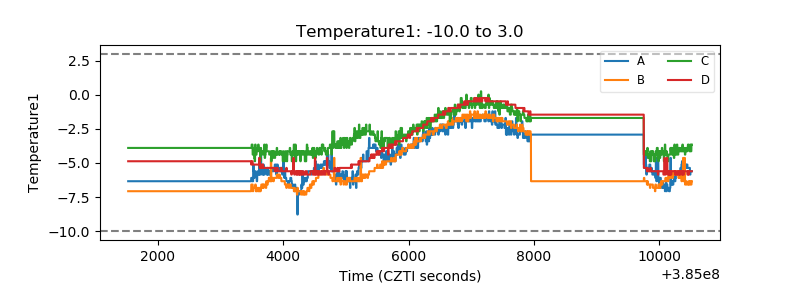

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

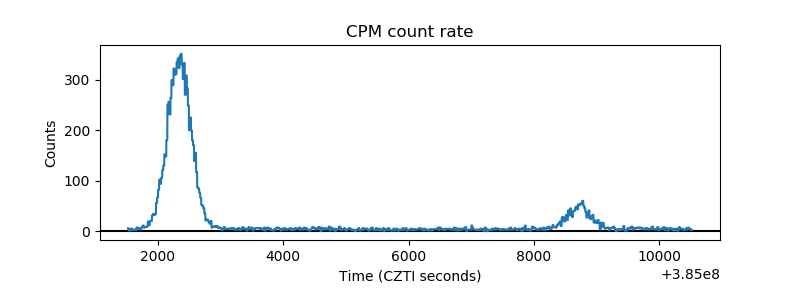

| _CPM_Rate |  |
