| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005010_34952cztM0_level2.evt | modeM0/AS1A11_047T09_9000005010_34952cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,362,864,960 | 219,827,520 |
| Size | 1.3 GB | 209.6 MB |
| Events in quadrant A | 9,311,038 | 1,435,545 |
| Events in quadrant B | 10,695,379 | 1,403,449 |
| Events in quadrant C | 8,049,846 | 1,422,838 |
| Events in quadrant D | 12,158,544 | 1,312,032 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37886 | 5 |
| B | 0 | 41872 | 4 |
| C | 0 | 32979 | 4 |
| D | 0 | 46894 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47 | 0 |
| B | 0 | 47 | 0 |
| C | 0 | 47 | 0 |
| D | 0 | 48 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15719 | 995 | 6.329919% |
| B | 15719 | 733 | 4.663147% |
| C | 15719 | 102 | 0.648896% |
| D | 15719 | 868 | 5.521980% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19957 | 15722 | 958 | 958 | 4.80% | 6.09% |  |
| B | 19957 | 15722 | 538 | 538 | 2.70% | 3.42% |  |
| C | 19957 | 15722 | 83 | 83 | 0.42% | 0.53% |  |
| D | 19957 | 15722 | 789 | 789 | 3.95% | 5.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2286240 | 6473.1 | 1759 | 1722 | 352.9 |
| A | 10 | 83 | 144287 | 403.95 | 1759 | 1722 | 352.9 |
| A | 13 | 6 | 30801 | 82.39 | 1759 | 1722 | 352.9 |
| B | 5 | 172 | 1815908 | 5303.66 | 1778 | 1731 | 342.1 |
| B | 5 | 31 | 584875 | 1704.79 | 1778 | 1731 | 342.1 |
| B | 4 | 232 | 423661 | 1233.49 | 1778 | 1731 | 342.1 |
| C | 15 | 214 | 654699 | 1577.4 | 1773 | 1785 | 413.9 |
| C | 0 | 10 | 323170 | 776.45 | 1773 | 1785 | 413.9 |
| C | 14 | 67 | 44353 | 102.84 | 1773 | 1785 | 413.9 |
| D | 8 | 195 | 1848598 | 4361.47 | 1743 | 1697 | 423.5 |
| D | 10 | 118 | 914196 | 2154.87 | 1743 | 1697 | 423.5 |
| D | 13 | 249 | 571192 | 1344.87 | 1743 | 1697 | 423.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

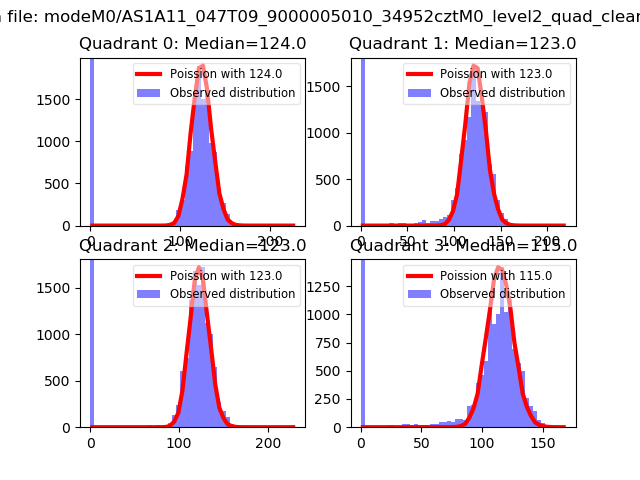

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

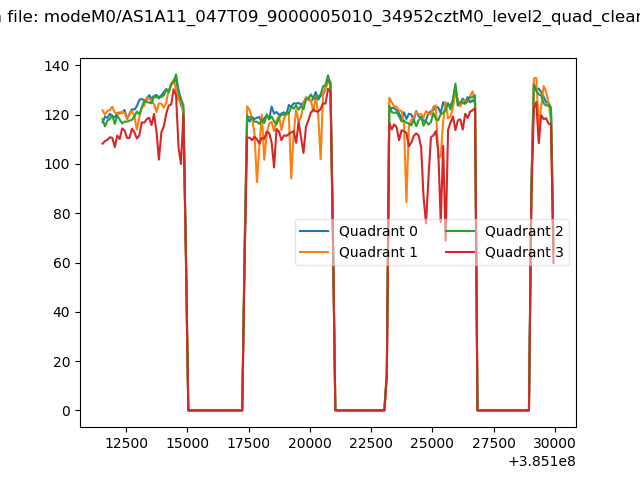

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

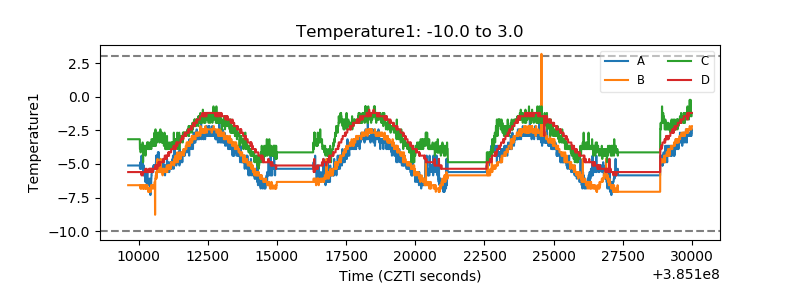

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

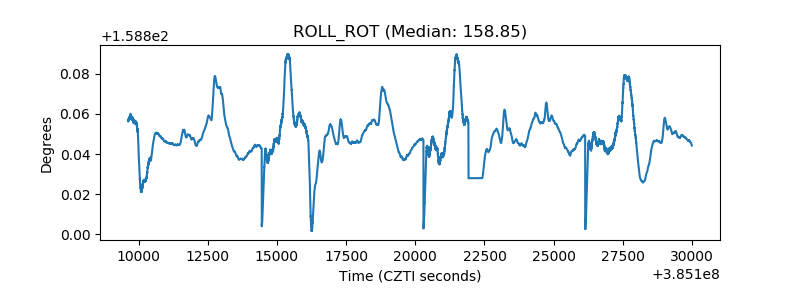

| _ROLL_ROT |  |

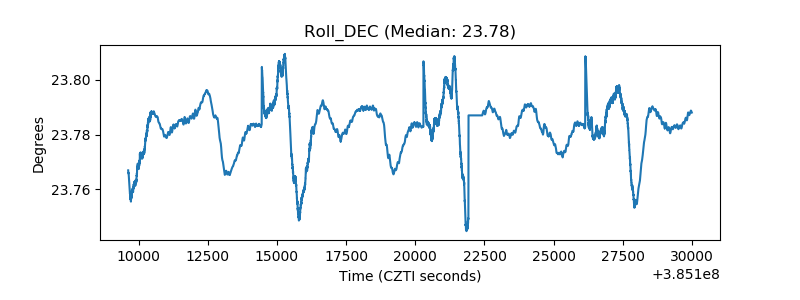

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
