| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005010_34956cztM0_level2.evt | modeM0/AS1A11_047T09_9000005010_34956cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,025,920 | 84,029,760 |
| Size | 446.3 MB | 80.1 MB |
| Events in quadrant A | 2,612,308 | 564,981 |
| Events in quadrant B | 3,678,031 | 547,195 |
| Events in quadrant C | 2,843,412 | 549,751 |
| Events in quadrant D | 4,680,670 | 511,226 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11118 | 3 |
| B | 0 | 14350 | 2 |
| C | 0 | 11535 | 2 |
| D | 0 | 17587 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5305 | 10 | 0.188501% |
| B | 5305 | 315 | 5.937795% |
| C | 5305 | 47 | 0.885957% |
| D | 5305 | 232 | 4.373233% |

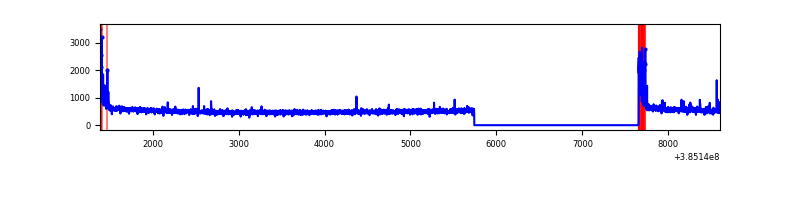

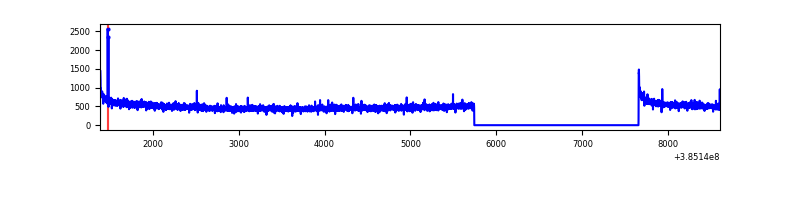

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7218 | 5306 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7218 | 5306 | 243 | 243 | 3.37% | 4.58% |  |
| C | 7218 | 5306 | 27 | 27 | 0.37% | 0.51% |  |
| D | 7218 | 5306 | 232 | 232 | 3.21% | 4.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 71859 | 543.32 | 651 | 639 | 131.1 |
| A | 13 | 6 | 12988 | 94.21 | 651 | 639 | 131.1 |
| A | 13 | 254 | 9301 | 66.08 | 651 | 639 | 131.1 |
| B | 5 | 172 | 856236 | 7147.68 | 626 | 610 | 119.7 |
| B | 0 | 190 | 190045 | 1582.49 | 626 | 610 | 119.7 |
| B | 4 | 232 | 68425 | 566.51 | 626 | 610 | 119.7 |
| C | 15 | 214 | 223734 | 1544.06 | 629 | 636 | 144.5 |
| C | 0 | 10 | 155902 | 1074.6 | 629 | 636 | 144.5 |
| C | 14 | 67 | 4360 | 25.77 | 629 | 636 | 144.5 |
| D | 8 | 195 | 964624 | 6447.36 | 626 | 610 | 149.5 |
| D | 1 | 52 | 593561 | 3965.68 | 626 | 610 | 149.5 |
| D | 13 | 249 | 166973 | 1112.64 | 626 | 610 | 149.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

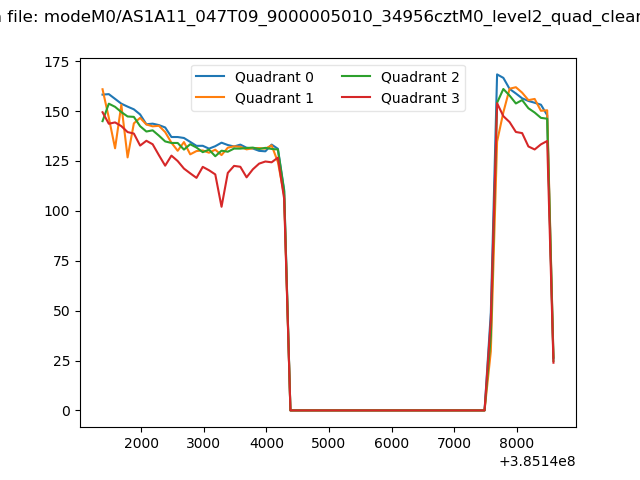

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

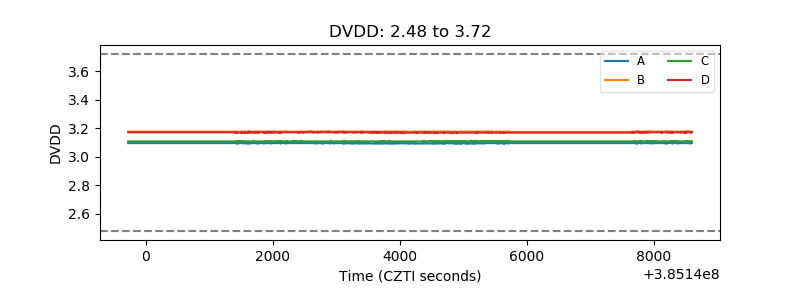

| D_VDD |  |

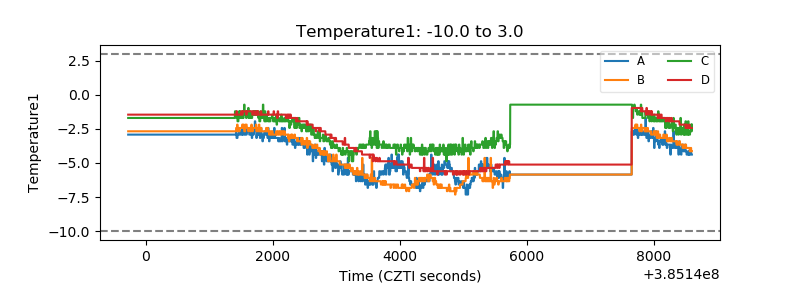

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

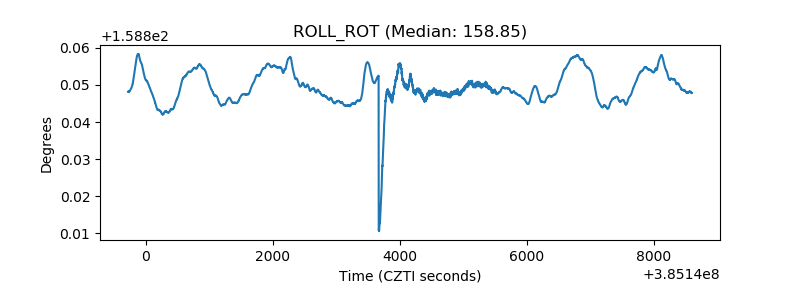

| _ROLL_ROT |  |
| _Roll_DEC |  |

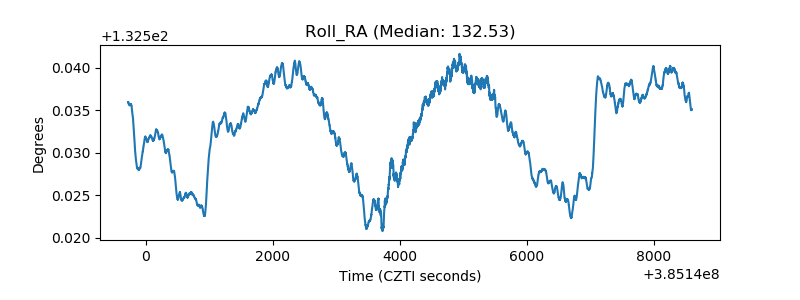

| _Roll_RA |  |

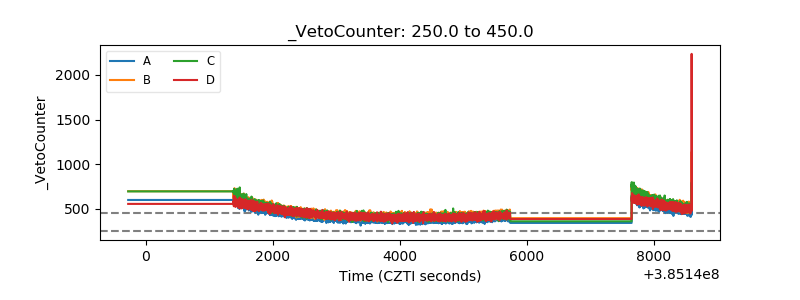

| Veto Counter |  |
