| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005010_34958cztM0_level2.evt | modeM0/AS1A11_047T09_9000005010_34958cztM0_level2_quad_clean.evt |
| Size (bytes) | 442,080,000 | 66,790,080 |
| Size | 421.6 MB | 63.7 MB |
| Events in quadrant A | 2,453,471 | 437,223 |
| Events in quadrant B | 3,504,472 | 421,668 |
| Events in quadrant C | 2,821,330 | 425,027 |
| Events in quadrant D | 4,271,072 | 388,938 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10353 | 2 |
| B | 0 | 13491 | 1 |
| C | 0 | 11204 | 1 |
| D | 0 | 16123 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4980 | 8 | 0.160643% |
| B | 4980 | 339 | 6.807229% |
| C | 4980 | 82 | 1.646586% |
| D | 4980 | 240 | 4.819277% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 4981 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7103 | 4981 | 275 | 275 | 3.87% | 5.52% |  |
| C | 7103 | 4981 | 68 | 68 | 0.96% | 1.37% |  |
| D | 7103 | 4981 | 214 | 214 | 3.01% | 4.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 70498 | 574.59 | 610 | 600 | 121.6 |
| A | 8 | 192 | 8680 | 66.42 | 610 | 600 | 121.6 |
| A | 13 | 254 | 8622 | 65.94 | 610 | 600 | 121.6 |
| B | 5 | 172 | 849478 | 7647.69 | 590 | 576 | 111.0 |
| B | 4 | 232 | 193748 | 1740.27 | 590 | 576 | 111.0 |
| B | 0 | 190 | 135413 | 1214.74 | 590 | 576 | 111.0 |
| C | 0 | 10 | 273850 | 1975.27 | 593 | 600 | 138.3 |
| C | 15 | 214 | 208670 | 1504.09 | 593 | 600 | 138.3 |
| C | 14 | 67 | 9872 | 67.03 | 593 | 600 | 138.3 |
| D | 8 | 195 | 1166221 | 8209.42 | 582 | 567 | 142.0 |
| D | 10 | 118 | 364086 | 2560.18 | 582 | 567 | 142.0 |
| D | 13 | 249 | 140244 | 983.71 | 582 | 567 | 142.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

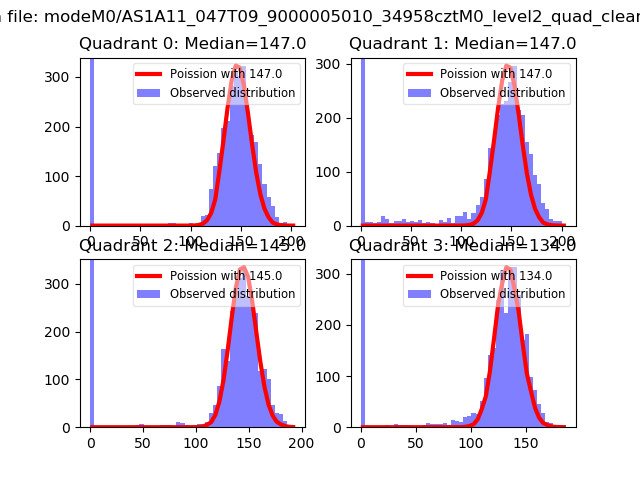

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

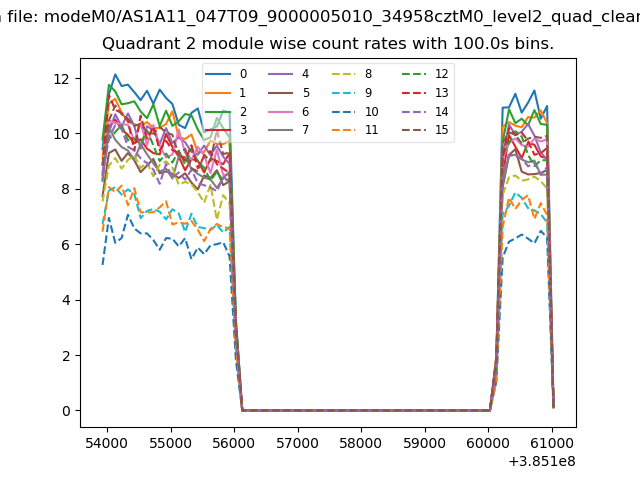

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

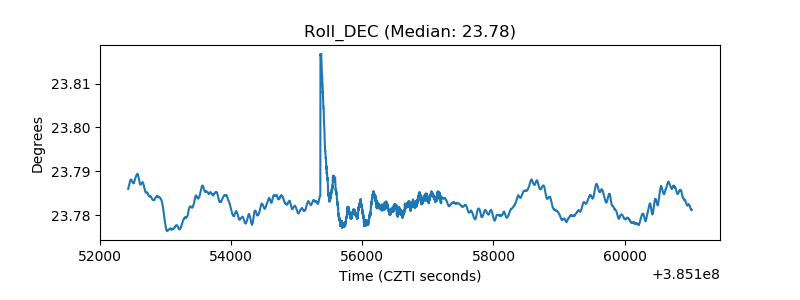

| _Roll_DEC |  |
| _Roll_RA |  |

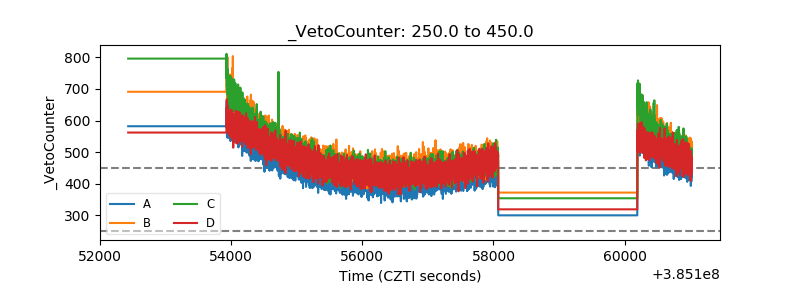

| Veto Counter |  |
