| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005010_34973cztM0_level2.evt | modeM0/AS1A11_047T09_9000005010_34973cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,033,600 | 62,815,680 |
| Size | 417.7 MB | 59.9 MB |
| Events in quadrant A | 2,390,291 | 407,307 |
| Events in quadrant B | 2,547,557 | 411,398 |
| Events in quadrant C | 2,727,596 | 397,776 |
| Events in quadrant D | 5,266,675 | 340,214 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10165 | 3 |
| B | 0 | 10535 | 2 |
| C | 0 | 10810 | 2 |
| D | 0 | 19026 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4918 | 3 | 0.061000% |
| B | 4918 | 37 | 0.752338% |
| C | 4918 | 62 | 1.260675% |
| D | 4918 | 555 | 11.285075% |

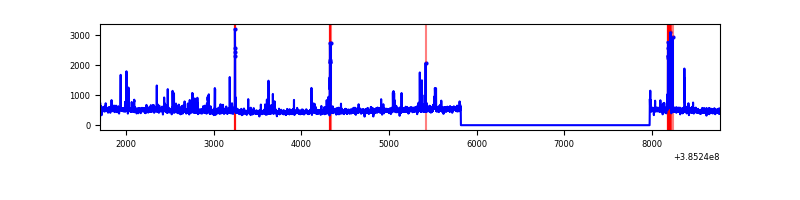

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 4919 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7072 | 4919 | 25 | 25 | 0.35% | 0.51% |  |
| C | 7072 | 4919 | 53 | 53 | 0.75% | 1.08% |  |
| D | 7072 | 4919 | 563 | 563 | 7.96% | 11.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 69931 | 585.67 | 596 | 586 | 118.4 |
| A | 13 | 6 | 10361 | 82.56 | 596 | 586 | 118.4 |
| A | 13 | 254 | 8393 | 65.94 | 596 | 586 | 118.4 |
| B | 5 | 172 | 170545 | 1495.1 | 595 | 580 | 113.7 |
| B | 3 | 112 | 18170 | 154.73 | 595 | 580 | 113.7 |
| B | 12 | 111 | 13671 | 115.16 | 595 | 580 | 113.7 |
| C | 15 | 214 | 208073 | 1538.36 | 580 | 587 | 134.9 |
| C | 0 | 10 | 205109 | 1516.39 | 580 | 587 | 134.9 |
| C | 14 | 67 | 37646 | 274.77 | 580 | 587 | 134.9 |
| D | 8 | 195 | 1117562 | 8204.9 | 555 | 540 | 136.1 |
| D | 1 | 52 | 571354 | 4192.82 | 555 | 540 | 136.1 |
| D | 13 | 174 | 490932 | 3602.09 | 555 | 540 | 136.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

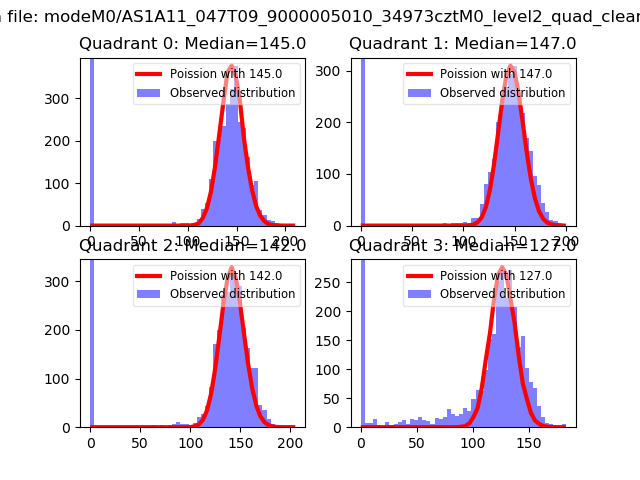

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

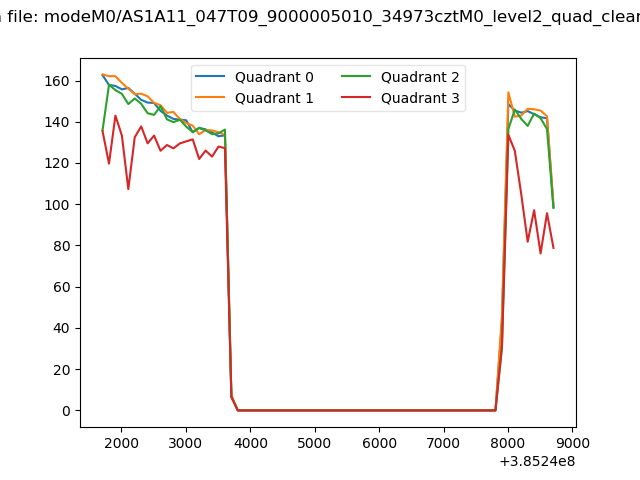

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

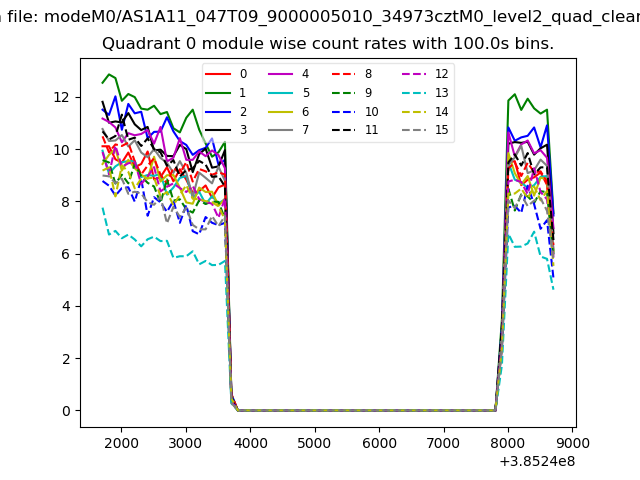

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

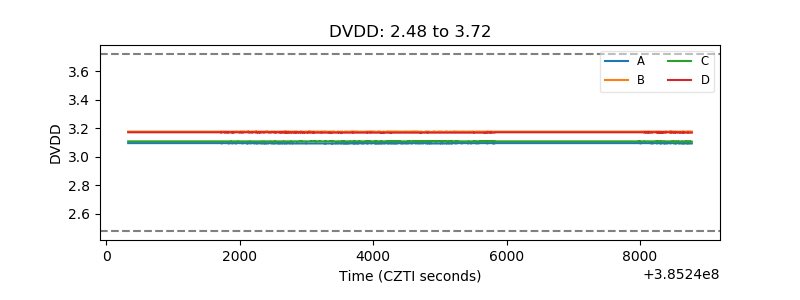

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

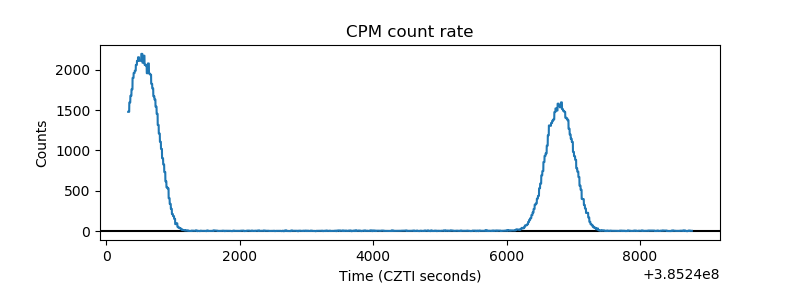

| _CPM_Rate |  |

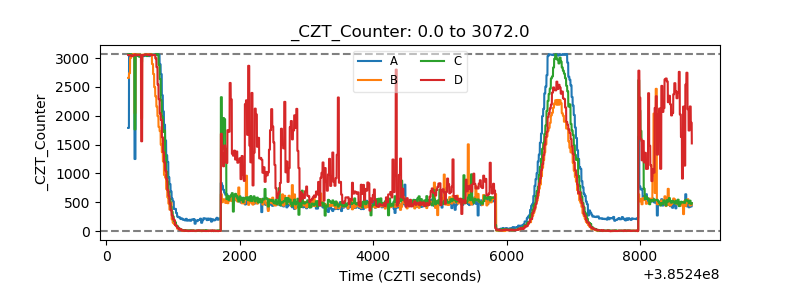

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

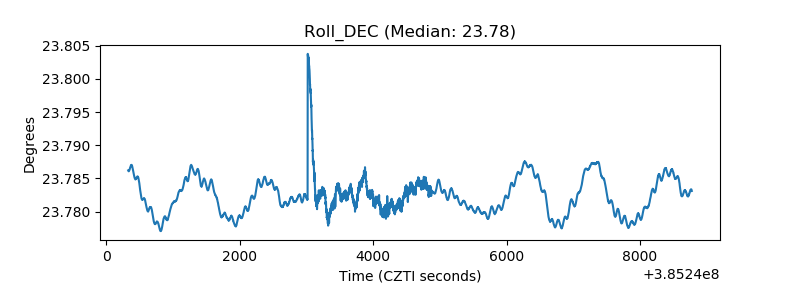

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
