| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_069T01_9000005008_34942cztM0_level2.evt | modeM0/AS1A11_069T01_9000005008_34942cztM0_level2_quad_clean.evt |
| Size (bytes) | 708,065,280 | 67,271,040 |
| Size | 675.3 MB | 64.2 MB |
| Events in quadrant A | 9,812,472 | 236,122 |
| Events in quadrant B | 3,063,666 | 508,766 |
| Events in quadrant C | 2,809,884 | 495,706 |
| Events in quadrant D | 5,410,615 | 435,154 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32470 | 3 |
| B | 0 | 12245 | 2 |
| C | 0 | 11282 | 2 |
| D | 0 | 19594 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5136 | 3613 | 70.346573% |
| B | 5136 | 134 | 2.609034% |
| C | 5136 | 60 | 1.168224% |
| D | 5136 | 578 | 11.253894% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7107 | 5135 | 3416 | 3416 | 48.07% | 66.52% |  |
| B | 7108 | 5137 | 102 | 102 | 1.44% | 1.99% |  |
| C | 7108 | 5137 | 44 | 44 | 0.62% | 0.86% |  |
| D | 7107 | 5136 | 543 | 543 | 7.64% | 10.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 8546148 | 132414.29 | 317 | 311 | 64.5 |
| A | 10 | 83 | 33058 | 507.4 | 317 | 311 | 64.5 |
| A | 13 | 254 | 4611 | 66.63 | 317 | 311 | 64.5 |
| B | 5 | 172 | 544095 | 4711.74 | 617 | 602 | 115.3 |
| B | 0 | 244 | 45050 | 385.34 | 617 | 602 | 115.3 |
| B | 0 | 197 | 14679 | 122.04 | 617 | 602 | 115.3 |
| C | 15 | 214 | 216682 | 1518.52 | 610 | 614 | 142.3 |
| C | 0 | 10 | 171236 | 1199.12 | 610 | 614 | 142.3 |
| C | 8 | 111 | 23892 | 163.6 | 610 | 614 | 142.3 |
| D | 1 | 52 | 678438 | 4777.62 | 586 | 572 | 141.9 |
| D | 8 | 195 | 658936 | 4640.17 | 586 | 572 | 141.9 |
| D | 12 | 227 | 445297 | 3134.43 | 586 | 572 | 141.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

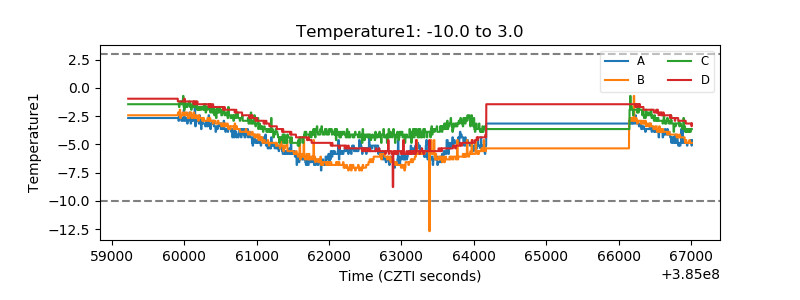

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

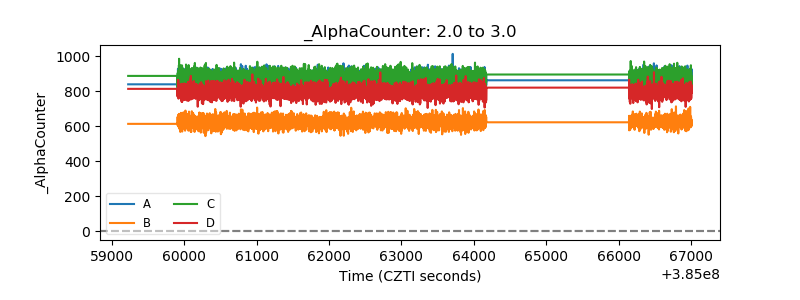

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

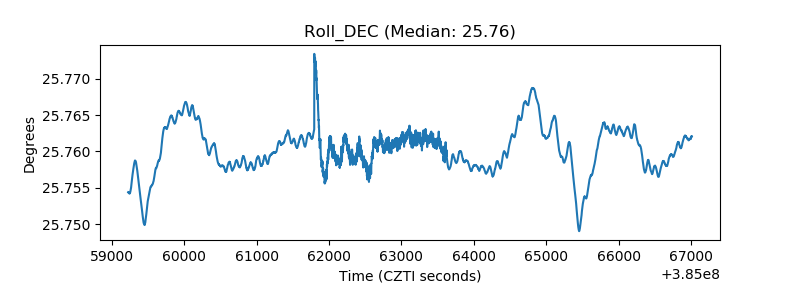

| _Roll_DEC |  |

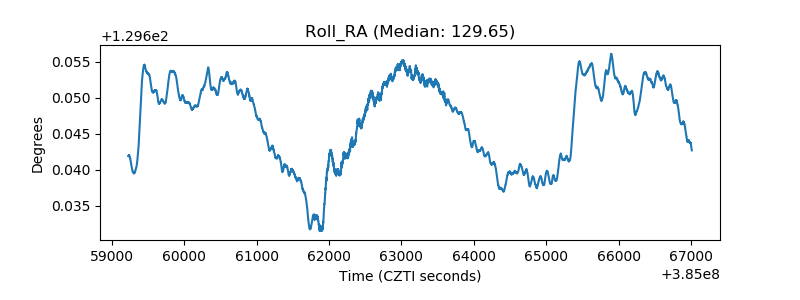

| _Roll_RA |  |
| Veto Counter |  |
