| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000005012_34975cztM0_level2.evt | modeM0/AS1A10_123T09_9000005012_34975cztM0_level2_quad_clean.evt |
| Size (bytes) | 467,265,600 | 66,366,720 |
| Size | 445.6 MB | 63.3 MB |
| Events in quadrant A | 2,571,933 | 408,738 |
| Events in quadrant B | 3,835,123 | 399,605 |
| Events in quadrant C | 2,872,809 | 416,650 |
| Events in quadrant D | 4,492,963 | 394,433 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11437 | 3 |
| B | 0 | 15115 | 2 |
| C | 0 | 11846 | 2 |
| D | 0 | 17461 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 41 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5571 | 5 | 0.089750% |
| B | 5571 | 372 | 6.677437% |
| C | 5571 | 58 | 1.041106% |
| D | 5571 | 168 | 3.015617% |

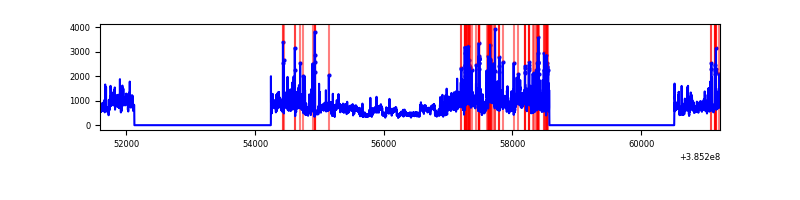

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9636 | 5573 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9636 | 5573 | 300 | 300 | 3.11% | 5.38% |  |
| C | 9636 | 5573 | 50 | 50 | 0.52% | 0.90% |  |
| D | 9636 | 5573 | 136 | 136 | 1.41% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 70819 | 552.03 | 635 | 623 | 127.2 |
| A | 13 | 6 | 22093 | 168.84 | 635 | 623 | 127.2 |
| A | 15 | 223 | 14507 | 109.19 | 635 | 623 | 127.2 |
| B | 3 | 112 | 553937 | 4629.97 | 618 | 601 | 119.5 |
| B | 5 | 172 | 428857 | 3583.38 | 618 | 601 | 119.5 |
| B | 5 | 63 | 214004 | 1785.62 | 618 | 601 | 119.5 |
| C | 15 | 214 | 231640 | 1637.51 | 617 | 622 | 141.1 |
| C | 0 | 10 | 182646 | 1290.23 | 617 | 622 | 141.1 |
| C | 14 | 67 | 42756 | 298.66 | 617 | 622 | 141.1 |
| D | 8 | 195 | 1317786 | 8897.86 | 608 | 591 | 148.0 |
| D | 2 | 249 | 228262 | 1537.95 | 608 | 591 | 148.0 |
| D | 1 | 47 | 149665 | 1007.02 | 608 | 591 | 148.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

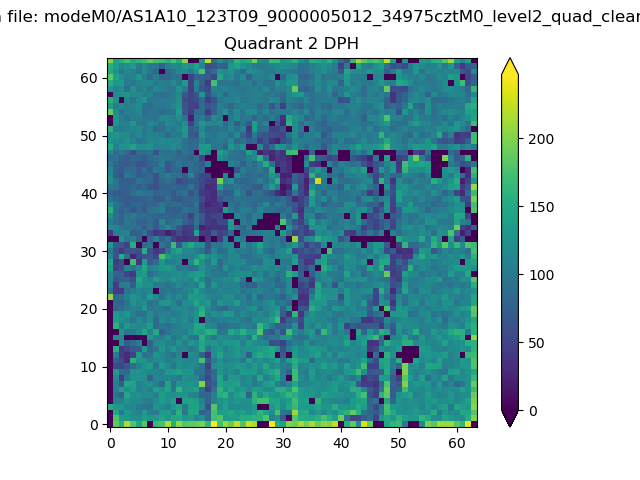

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

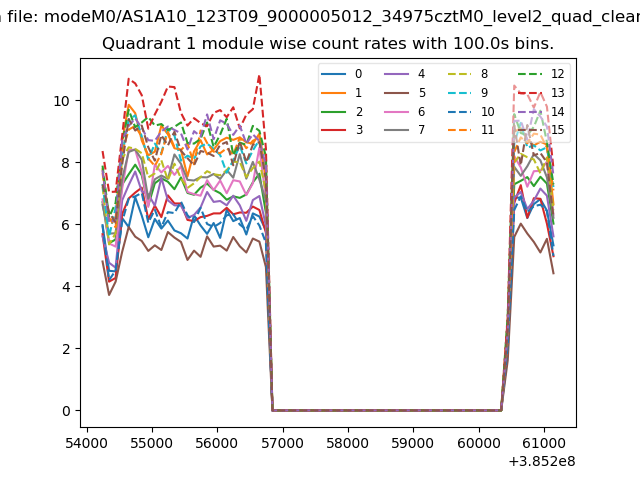

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

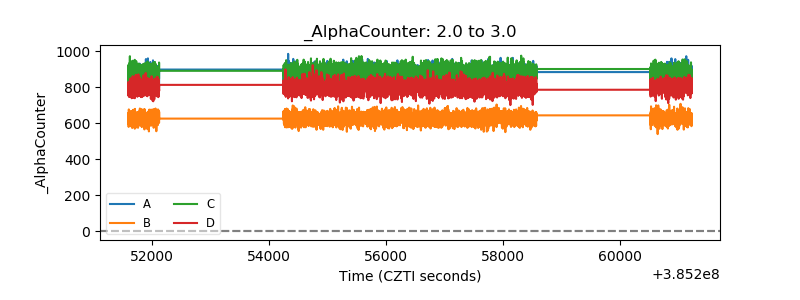

| Alpha Counter |  |

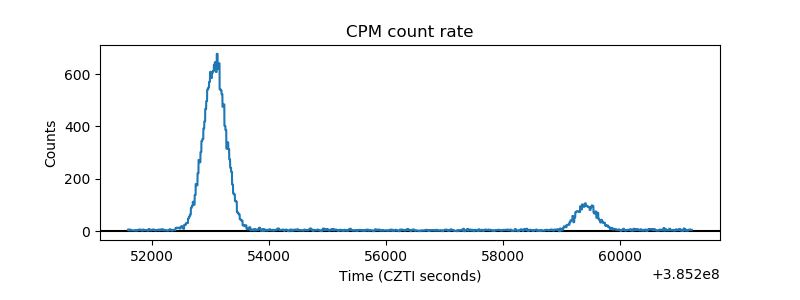

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

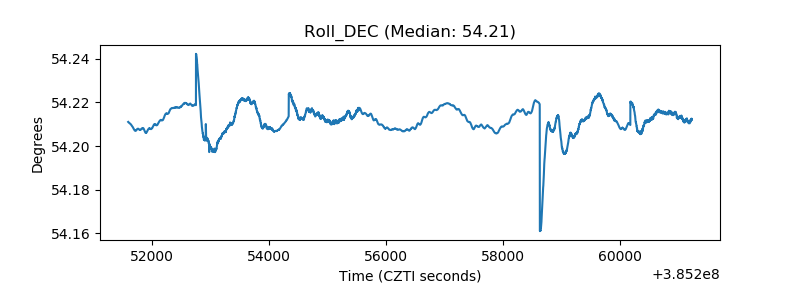

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

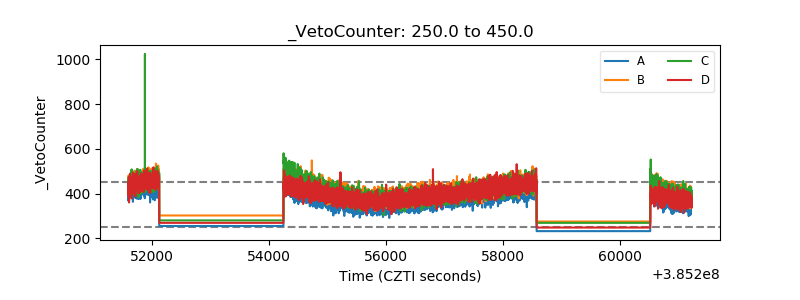

| Veto Counter |  |
