| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000005012_34976cztM0_level2.evt | modeM0/AS1A10_123T09_9000005012_34976cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,984,320 | 69,658,560 |
| Size | 448.2 MB | 66.4 MB |
| Events in quadrant A | 2,529,935 | 435,125 |
| Events in quadrant B | 2,917,441 | 443,802 |
| Events in quadrant C | 2,893,432 | 439,792 |
| Events in quadrant D | 5,515,775 | 401,884 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11340 | 3 |
| B | 0 | 12468 | 2 |
| C | 0 | 12083 | 2 |
| D | 0 | 20438 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5550 | 10 | 0.180180% |
| B | 5550 | 115 | 2.072072% |
| C | 5550 | 82 | 1.477477% |
| D | 5550 | 494 | 8.900901% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9104 | 5552 | 1 | 1 | 0.01% | 0.02% |  |
| B | 9104 | 5552 | 80 | 80 | 0.88% | 1.44% |  |
| C | 9104 | 5552 | 72 | 72 | 0.79% | 1.30% |  |
| D | 9104 | 5552 | 423 | 423 | 4.65% | 7.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 71091 | 567.6 | 620 | 607 | 124.2 |
| A | 13 | 6 | 27131 | 213.6 | 620 | 607 | 124.2 |
| A | 15 | 223 | 17707 | 137.7 | 620 | 607 | 124.2 |
| B | 5 | 172 | 384714 | 3281.61 | 616 | 600 | 117.1 |
| B | 4 | 232 | 39174 | 329.55 | 616 | 600 | 117.1 |
| B | 0 | 190 | 30584 | 256.16 | 616 | 600 | 117.1 |
| C | 0 | 10 | 253157 | 1815.53 | 603 | 606 | 139.1 |
| C | 15 | 214 | 232830 | 1669.4 | 603 | 606 | 139.1 |
| C | 14 | 67 | 39166 | 277.2 | 603 | 606 | 139.1 |
| D | 8 | 195 | 1142415 | 8018.24 | 583 | 566 | 142.4 |
| D | 2 | 249 | 439658 | 3083.37 | 583 | 566 | 142.4 |
| D | 2 | 250 | 418513 | 2934.89 | 583 | 566 | 142.4 |

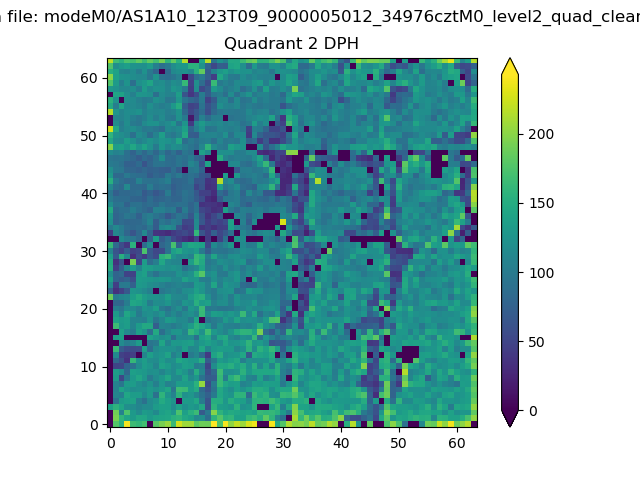

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

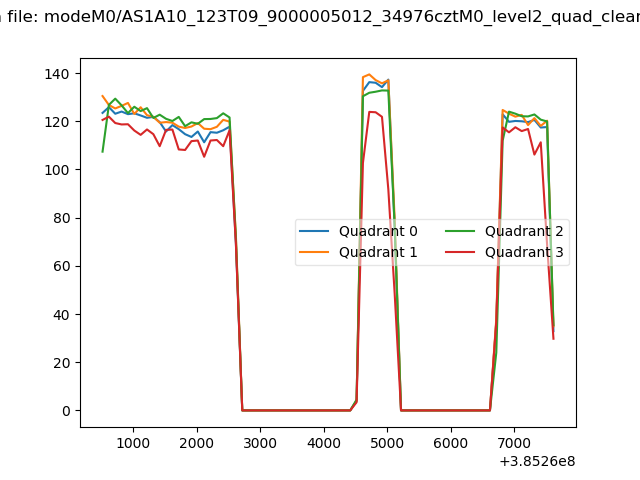

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

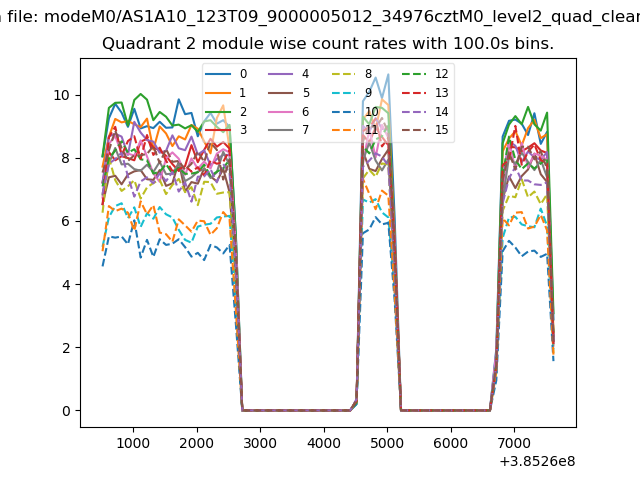

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

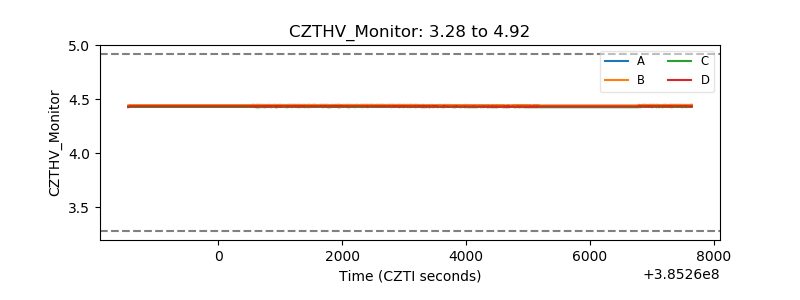

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

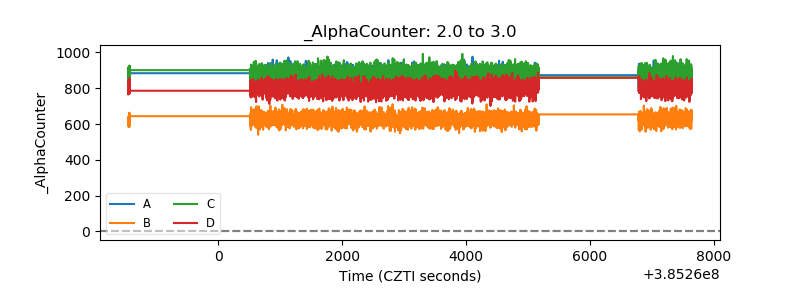

| Alpha Counter |  |
| _CPM_Rate |  |

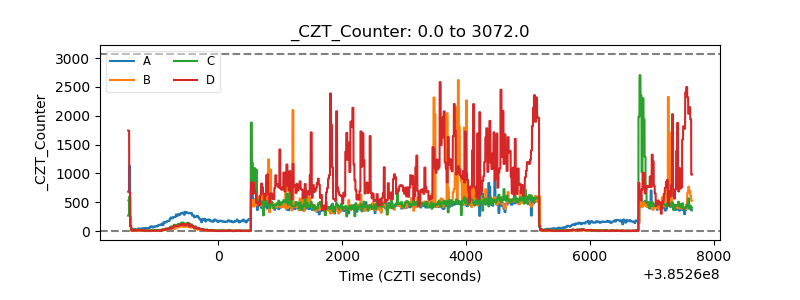

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

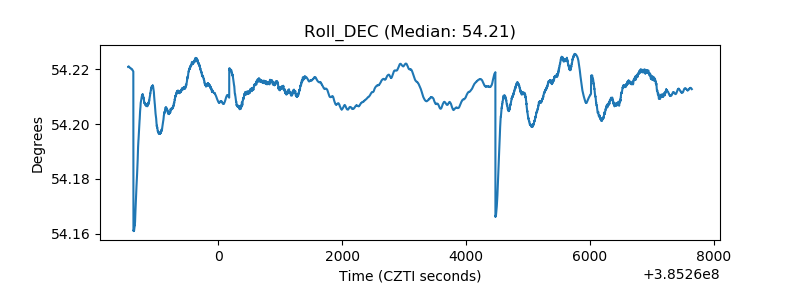

| _Roll_DEC |  |

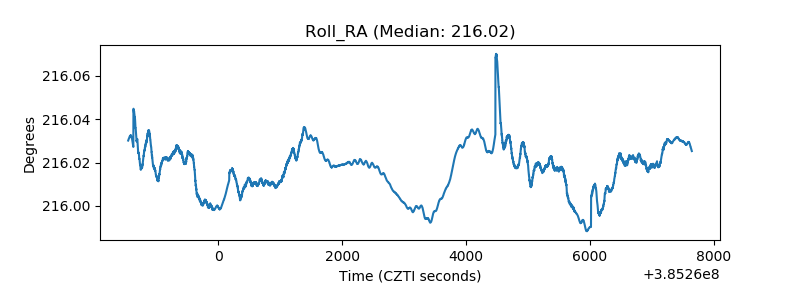

| _Roll_RA |  |
| Veto Counter |  |
