| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_123T09_9000005012_34978cztM0_level2.evt | modeM0/AS1A10_123T09_9000005012_34978cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,844,800 | 77,279,040 |
| Size | 467.2 MB | 73.7 MB |
| Events in quadrant A | 2,747,792 | 483,488 |
| Events in quadrant B | 3,368,927 | 485,404 |
| Events in quadrant C | 3,033,249 | 490,770 |
| Events in quadrant D | 5,274,923 | 458,316 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12221 | 3 |
| B | 0 | 14097 | 2 |
| C | 0 | 12676 | 2 |
| D | 0 | 20044 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6046 | 6 | 0.099239% |
| B | 6046 | 155 | 2.563678% |
| C | 6046 | 34 | 0.562355% |
| D | 6046 | 355 | 5.871651% |

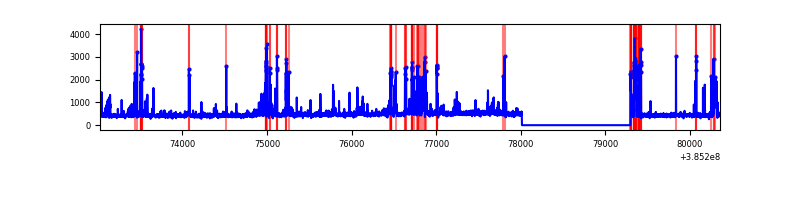

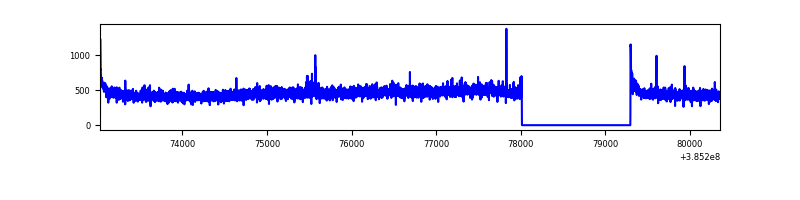

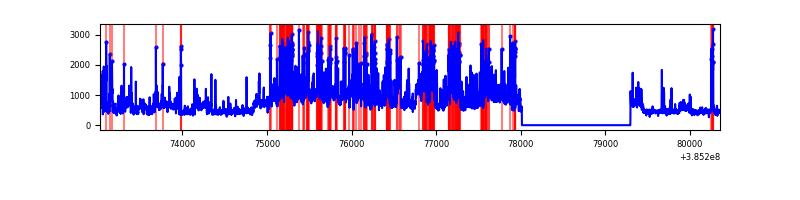

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7329 | 6047 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7329 | 6047 | 115 | 115 | 1.57% | 1.90% |  |
| C | 7329 | 6047 | 29 | 29 | 0.40% | 0.48% |  |
| D | 7329 | 6047 | 273 | 273 | 3.72% | 4.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 74795 | 535.26 | 684 | 669 | 138.5 |
| A | 13 | 6 | 11756 | 80.06 | 684 | 669 | 138.5 |
| A | 13 | 254 | 9970 | 67.16 | 684 | 669 | 138.5 |
| B | 5 | 172 | 628635 | 4748.8 | 676 | 656 | 132.2 |
| B | 0 | 190 | 34875 | 258.77 | 676 | 656 | 132.2 |
| B | 5 | 63 | 22901 | 168.22 | 676 | 656 | 132.2 |
| C | 15 | 214 | 251450 | 1613.41 | 668 | 672 | 155.4 |
| C | 0 | 10 | 133604 | 855.23 | 668 | 672 | 155.4 |
| C | 14 | 67 | 29268 | 183.98 | 668 | 672 | 155.4 |
| D | 8 | 195 | 1292536 | 8098.93 | 655 | 639 | 159.5 |
| D | 2 | 249 | 582103 | 3645.21 | 655 | 639 | 159.5 |
| D | 1 | 47 | 409023 | 2560.17 | 655 | 639 | 159.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

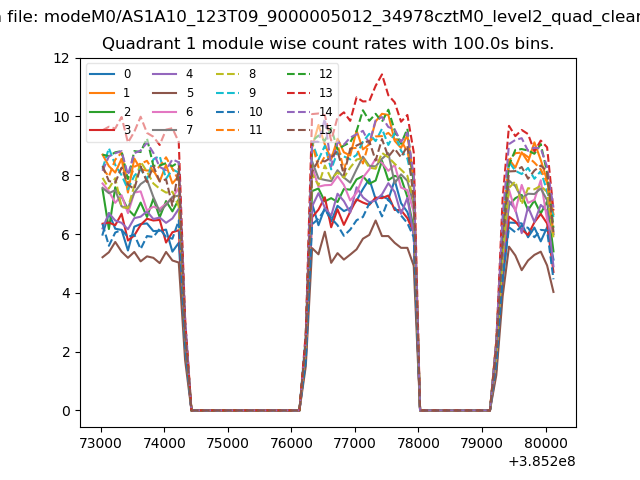

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

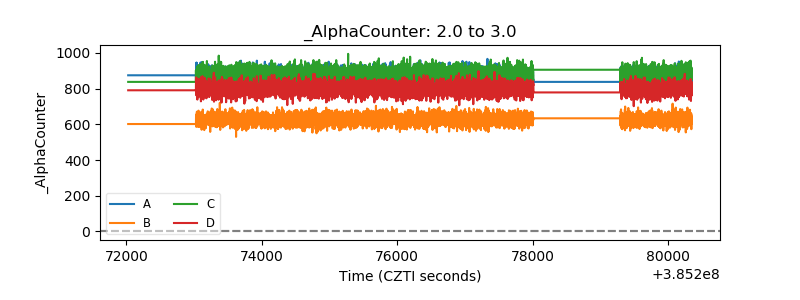

| Alpha Counter |  |

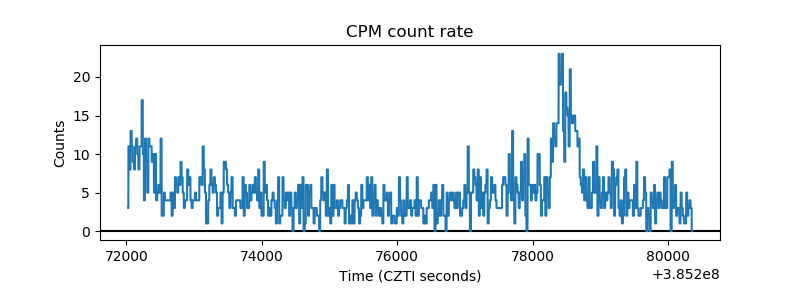

| _CPM_Rate |  |
| CZT Counter |  |

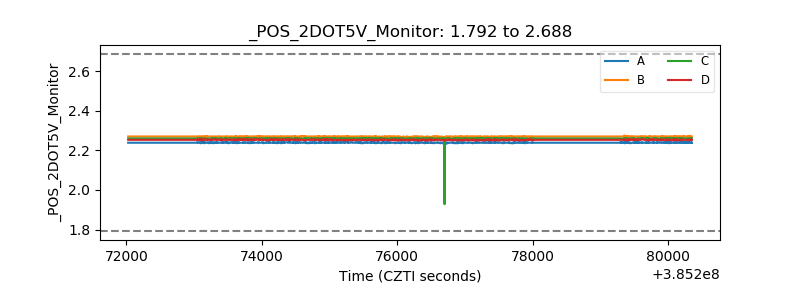

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

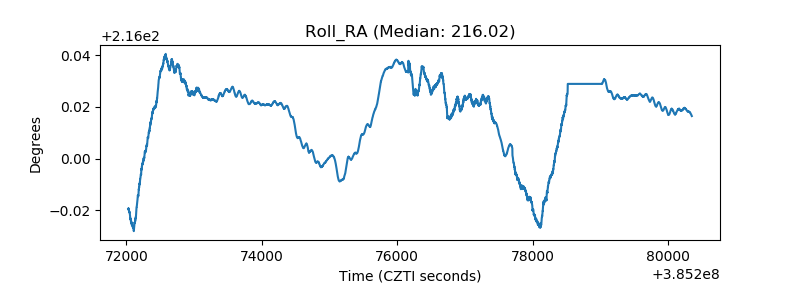

| _Roll_RA |  |
| Veto Counter |  |
