| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_34998cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_34998cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,204,160 | 54,829,440 |
| Size | 442.7 MB | 52.3 MB |
| Events in quadrant A | 2,778,066 | 323,112 |
| Events in quadrant B | 2,892,367 | 325,515 |
| Events in quadrant C | 3,072,950 | 317,028 |
| Events in quadrant D | 4,933,883 | 301,193 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11794 | 3 |
| B | 0 | 12002 | 2 |
| C | 0 | 12290 | 2 |
| D | 0 | 18524 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5619 | 15 | 0.266951% |
| B | 5619 | 32 | 0.569496% |
| C | 5619 | 78 | 1.388147% |
| D | 5619 | 274 | 4.876313% |

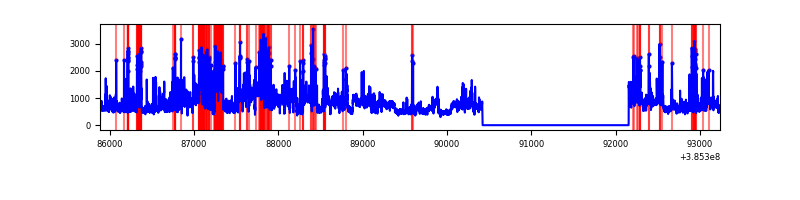

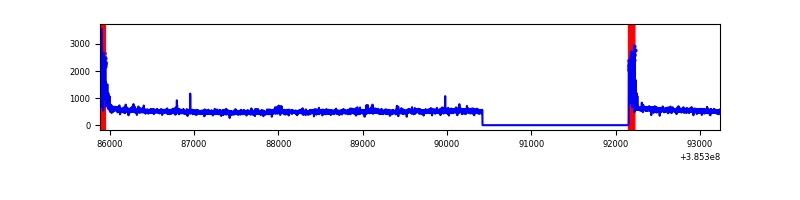

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7353 | 5620 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7353 | 5620 | 11 | 11 | 0.15% | 0.20% |  |
| C | 7353 | 5620 | 63 | 63 | 0.86% | 1.12% |  |
| D | 7353 | 5620 | 248 | 248 | 3.37% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 78995 | 573.45 | 682 | 669 | 136.6 |
| A | 15 | 223 | 40170 | 289.2 | 682 | 669 | 136.6 |
| A | 15 | 169 | 10091 | 68.98 | 682 | 669 | 136.6 |
| B | 4 | 232 | 67615 | 522.56 | 677 | 660 | 128.1 |
| B | 5 | 172 | 63005 | 486.58 | 677 | 660 | 128.1 |
| B | 0 | 190 | 29260 | 223.21 | 677 | 660 | 128.1 |
| C | 15 | 214 | 235028 | 1547.86 | 656 | 661 | 151.4 |
| C | 0 | 10 | 202282 | 1331.59 | 656 | 661 | 151.4 |
| C | 14 | 67 | 42624 | 277.14 | 656 | 661 | 151.4 |
| D | 8 | 195 | 1113970 | 6974.36 | 653 | 634 | 159.6 |
| D | 10 | 118 | 570868 | 3572.16 | 653 | 634 | 159.6 |
| D | 13 | 249 | 142541 | 888.96 | 653 | 634 | 159.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

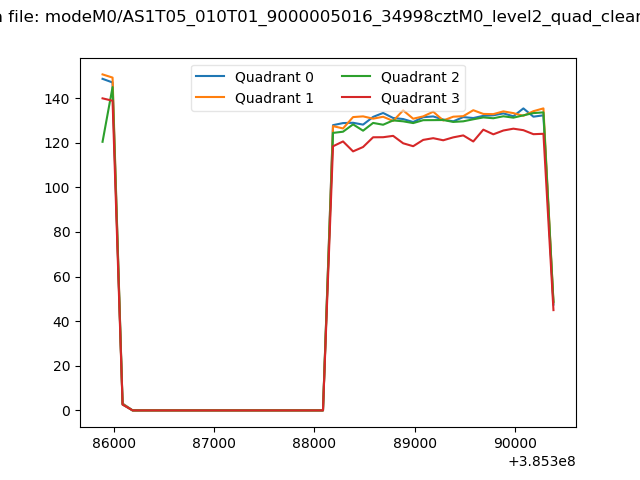

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

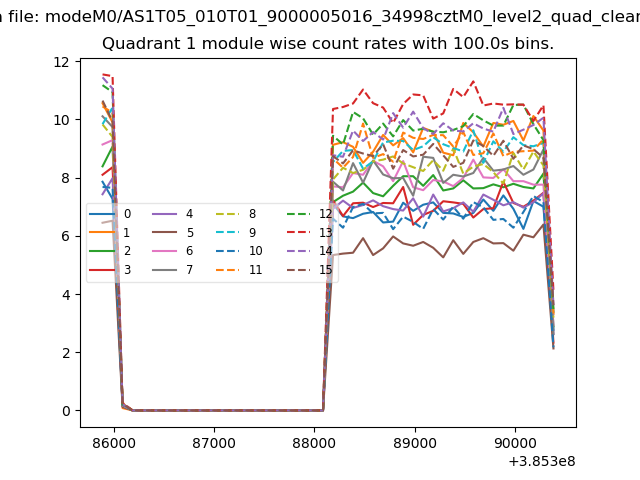

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

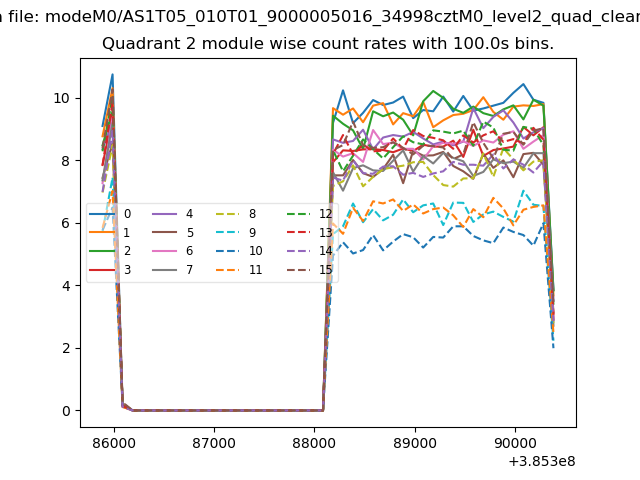

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

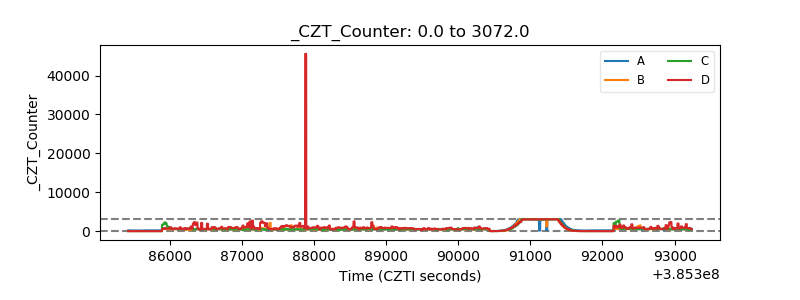

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

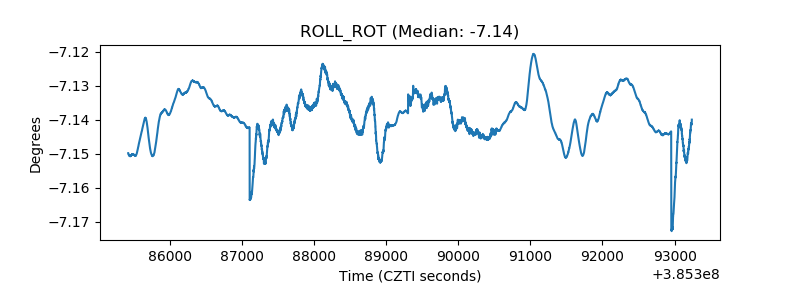

| _ROLL_ROT |  |

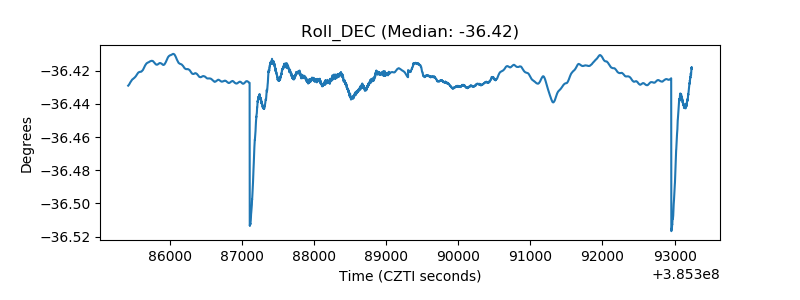

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
