| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_34999cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_34999cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,961,280 | 56,727,360 |
| Size | 456.8 MB | 54.1 MB |
| Events in quadrant A | 2,819,278 | 344,016 |
| Events in quadrant B | 2,916,256 | 345,209 |
| Events in quadrant C | 3,002,001 | 336,886 |
| Events in quadrant D | 5,402,069 | 313,714 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11741 | 3 |
| B | 0 | 11984 | 2 |
| C | 0 | 11970 | 2 |
| D | 0 | 19774 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5392 | 17 | 0.315282% |
| B | 5392 | 33 | 0.612018% |
| C | 5392 | 78 | 1.446588% |
| D | 5392 | 625 | 11.591246% |

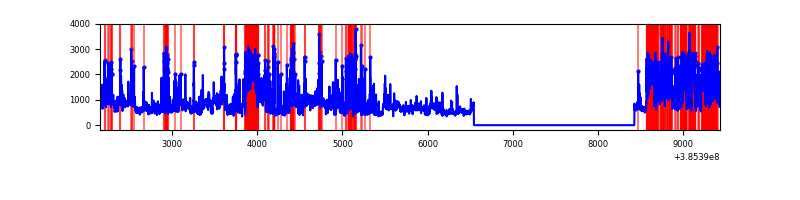

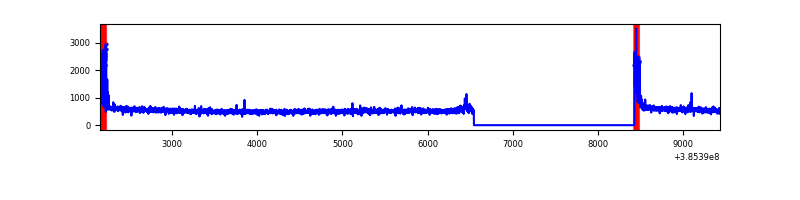

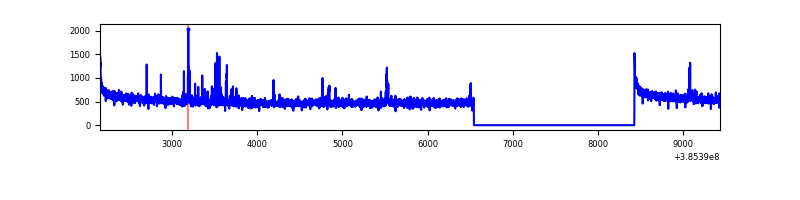

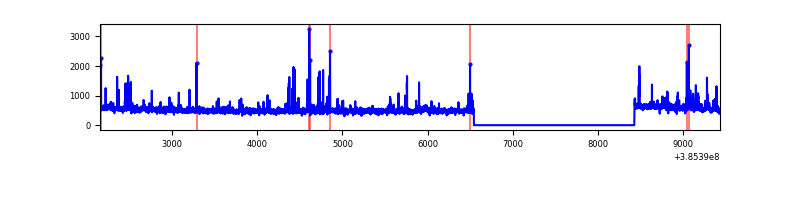

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7275 | 5393 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7275 | 5393 | 9 | 9 | 0.12% | 0.17% |  |
| C | 7275 | 5393 | 61 | 61 | 0.84% | 1.13% |  |
| D | 7275 | 5393 | 522 | 522 | 7.18% | 9.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 79329 | 579.72 | 683 | 672 | 135.7 |
| A | 15 | 223 | 61060 | 445.07 | 683 | 672 | 135.7 |
| A | 13 | 6 | 14657 | 103.07 | 683 | 672 | 135.7 |
| B | 0 | 199 | 79572 | 626.7 | 677 | 662 | 125.9 |
| B | 5 | 172 | 38743 | 302.44 | 677 | 662 | 125.9 |
| B | 4 | 232 | 37226 | 290.39 | 677 | 662 | 125.9 |
| C | 15 | 214 | 225334 | 1505.61 | 650 | 656 | 149.2 |
| C | 0 | 10 | 186551 | 1245.72 | 650 | 656 | 149.2 |
| C | 14 | 67 | 38828 | 255.8 | 650 | 656 | 149.2 |
| D | 10 | 118 | 1144784 | 7549.62 | 627 | 611 | 151.6 |
| D | 8 | 195 | 909575 | 5997.64 | 627 | 611 | 151.6 |
| D | 13 | 249 | 334590 | 2203.7 | 627 | 611 | 151.6 |

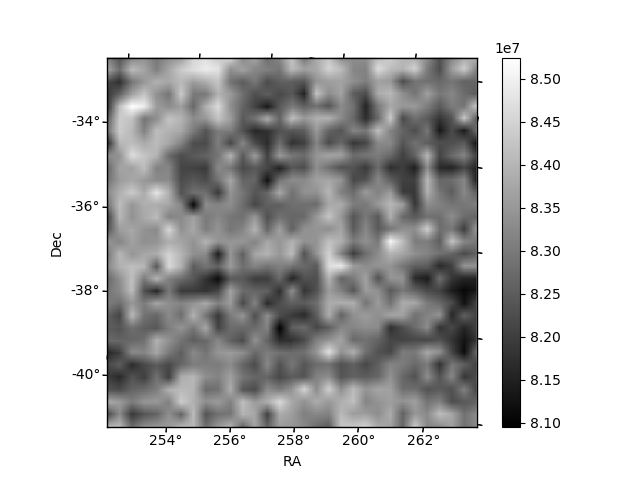

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

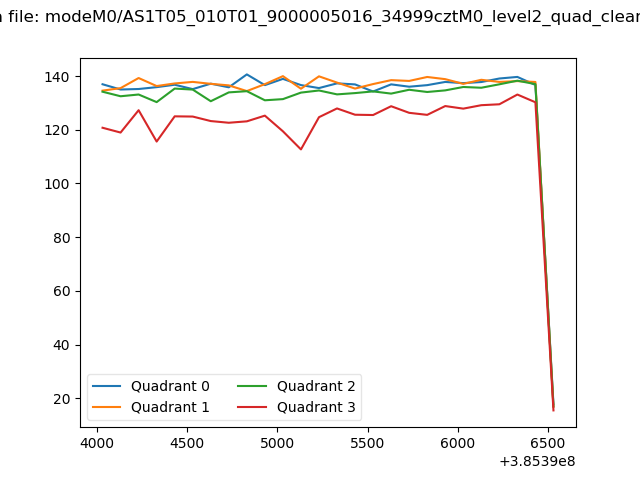

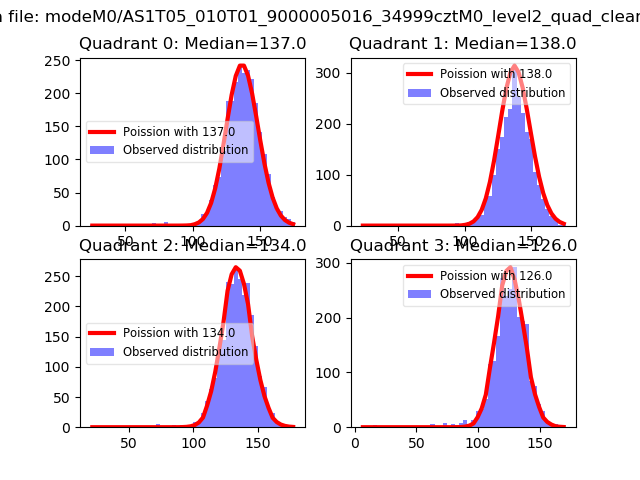

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

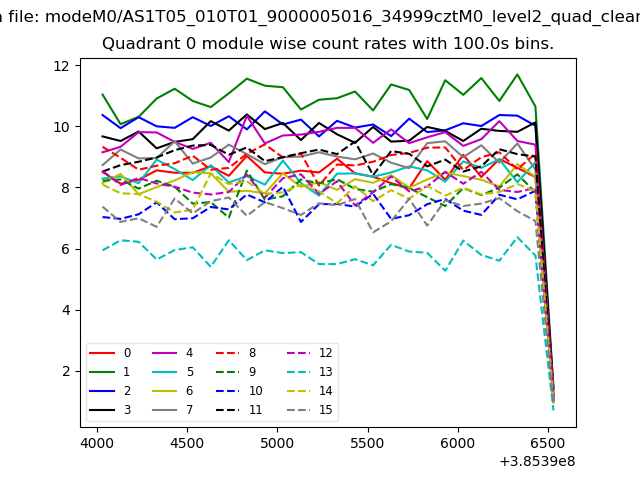

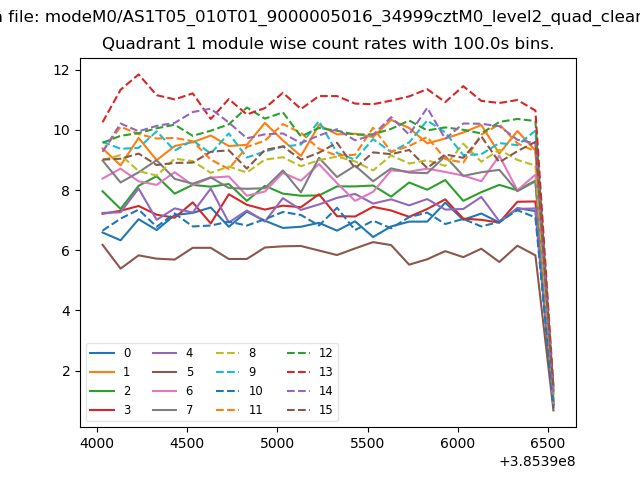

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

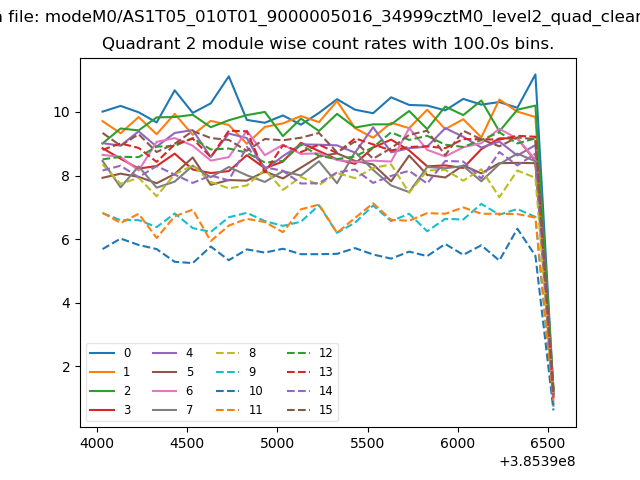

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

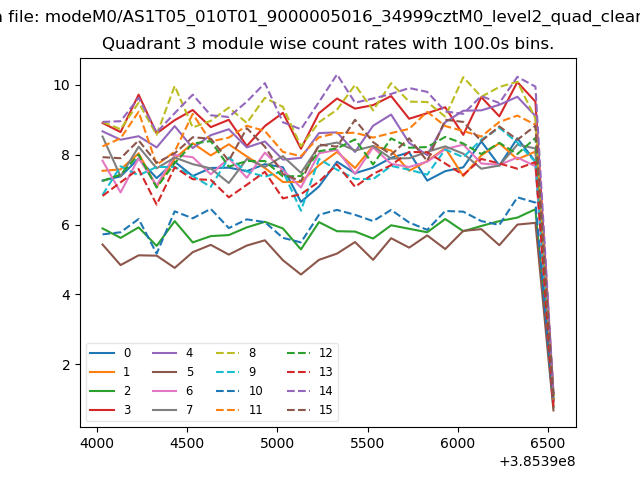

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

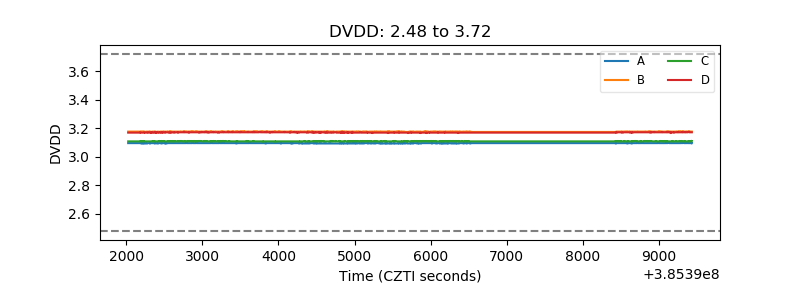

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

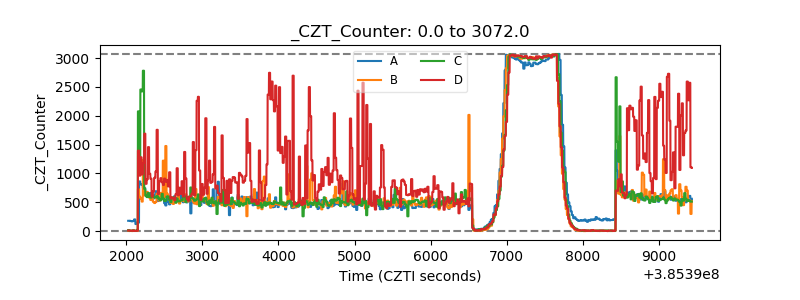

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

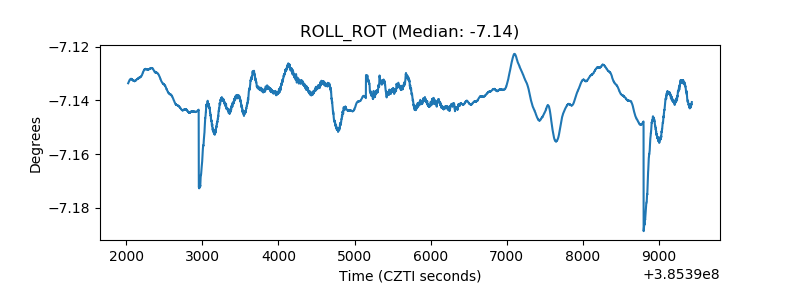

| _ROLL_ROT |  |

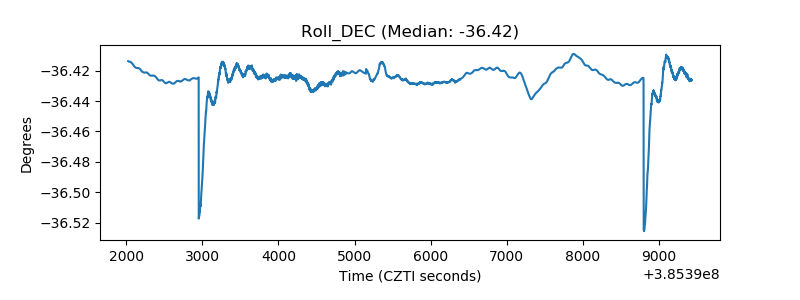

| _Roll_DEC |  |

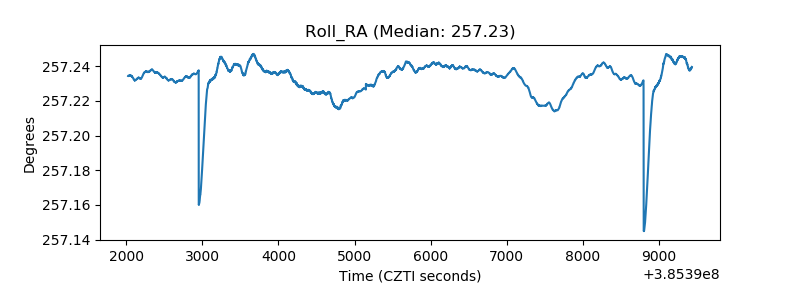

| _Roll_RA |  |

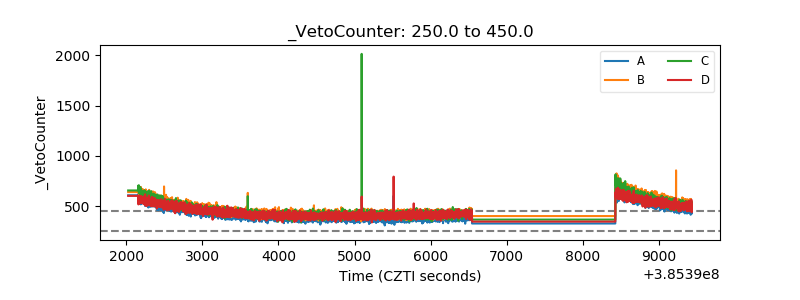

| Veto Counter |  |
