| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_35003cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_35003cztM0_level2_quad_clean.evt |
| Size (bytes) | 382,743,360 | 95,990,400 |
| Size | 365.0 MB | 91.5 MB |
| Events in quadrant A | 2,447,383 | 650,397 |
| Events in quadrant B | 2,550,689 | 667,310 |
| Events in quadrant C | 2,690,554 | 643,865 |
| Events in quadrant D | 3,567,439 | 599,583 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10299 | 3 |
| B | 0 | 10518 | 2 |
| C | 0 | 10649 | 2 |
| D | 0 | 13915 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42 | 0 |
| B | 0 | 42 | 0 |
| C | 0 | 42 | 0 |
| D | 0 | 42 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4935 | 18 | 0.364742% |
| B | 4935 | 33 | 0.668693% |
| C | 4935 | 51 | 1.033435% |
| D | 4935 | 101 | 2.046606% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7058 | 4936 | 13 | 13 | 0.18% | 0.26% |  |
| B | 7058 | 4936 | 10 | 10 | 0.14% | 0.20% |  |
| C | 7058 | 4936 | 40 | 40 | 0.57% | 0.81% |  |
| D | 7058 | 4936 | 91 | 91 | 1.29% | 1.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 71429 | 584.19 | 601 | 592 | 121.3 |
| A | 15 | 169 | 45628 | 371.41 | 601 | 592 | 121.3 |
| A | 13 | 254 | 7383 | 56.01 | 601 | 592 | 121.3 |
| B | 5 | 172 | 60401 | 520.83 | 603 | 591 | 114.8 |
| B | 0 | 190 | 37826 | 324.24 | 603 | 591 | 114.8 |
| B | 5 | 255 | 27773 | 236.7 | 603 | 591 | 114.8 |
| C | 15 | 214 | 207718 | 1514.91 | 588 | 593 | 136.7 |
| C | 0 | 10 | 160426 | 1169.02 | 588 | 593 | 136.7 |
| C | 14 | 67 | 20141 | 142.97 | 588 | 593 | 136.7 |
| D | 8 | 195 | 697214 | 4946.36 | 578 | 565 | 140.8 |
| D | 2 | 250 | 199731 | 1414.12 | 578 | 565 | 140.8 |
| D | 5 | 223 | 110927 | 783.59 | 578 | 565 | 140.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

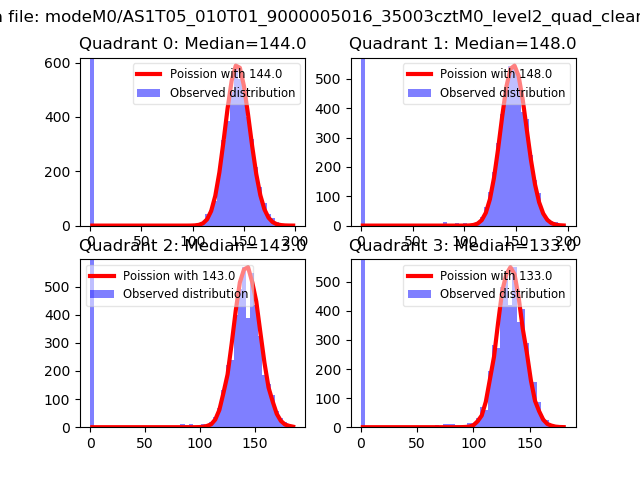

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

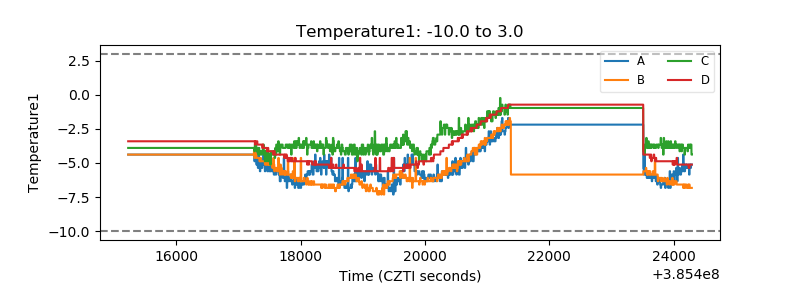

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

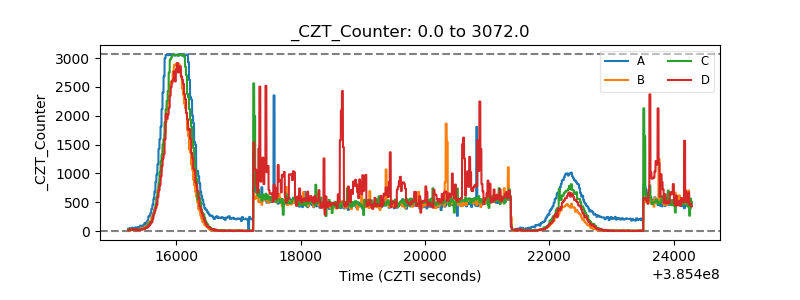

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

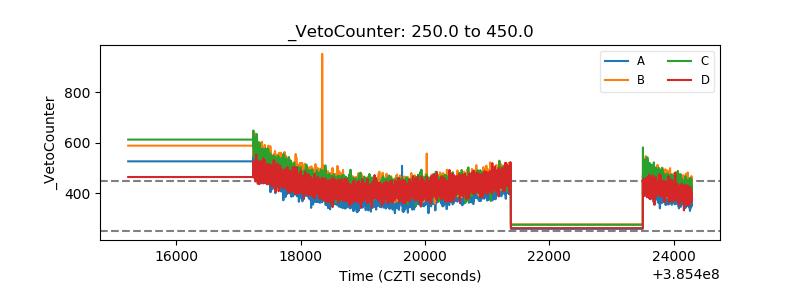

| Veto Counter |  |
