| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_35004cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_35004cztM0_level2_quad_clean.evt |
| Size (bytes) | 388,370,880 | 85,216,320 |
| Size | 370.4 MB | 81.3 MB |
| Events in quadrant A | 2,392,722 | 566,371 |
| Events in quadrant B | 2,697,635 | 577,702 |
| Events in quadrant C | 2,713,902 | 560,351 |
| Events in quadrant D | 3,613,436 | 521,512 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10363 | 3 |
| B | 0 | 11241 | 2 |
| C | 0 | 10900 | 2 |
| D | 0 | 14219 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5059 | 7 | 0.138367% |
| B | 5059 | 38 | 0.751137% |
| C | 5059 | 50 | 0.988338% |
| D | 5059 | 137 | 2.708045% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6973 | 5060 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6973 | 5060 | 24 | 24 | 0.34% | 0.47% |  |
| C | 6973 | 5060 | 35 | 35 | 0.50% | 0.69% |  |
| D | 6973 | 5060 | 112 | 112 | 1.61% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 71911 | 593.63 | 594 | 585 | 120.2 |
| A | 13 | 6 | 9384 | 73.23 | 594 | 585 | 120.2 |
| A | 13 | 254 | 8247 | 63.77 | 594 | 585 | 120.2 |
| B | 5 | 172 | 106421 | 931.71 | 595 | 580 | 113.6 |
| B | 0 | 190 | 47050 | 409.07 | 595 | 580 | 113.6 |
| B | 5 | 255 | 38391 | 332.85 | 595 | 580 | 113.6 |
| C | 15 | 214 | 213695 | 1568.34 | 584 | 589 | 135.9 |
| C | 0 | 10 | 179360 | 1315.65 | 584 | 589 | 135.9 |
| C | 14 | 67 | 18124 | 129.05 | 584 | 589 | 135.9 |
| D | 8 | 195 | 721784 | 5177.36 | 573 | 561 | 139.3 |
| D | 12 | 6 | 146267 | 1045.96 | 573 | 561 | 139.3 |
| D | 13 | 249 | 131516 | 940.07 | 573 | 561 | 139.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

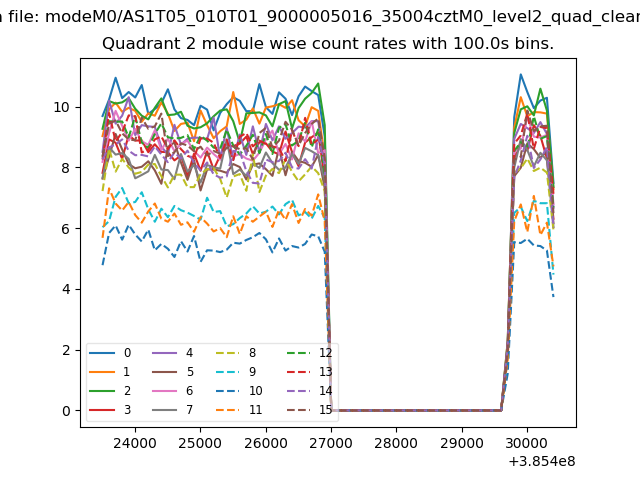

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

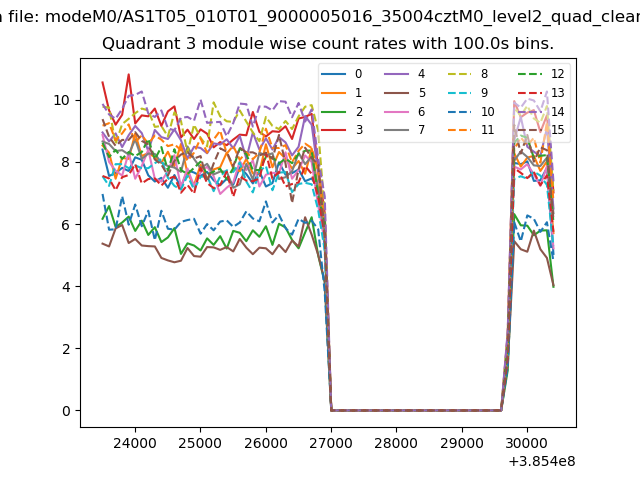

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

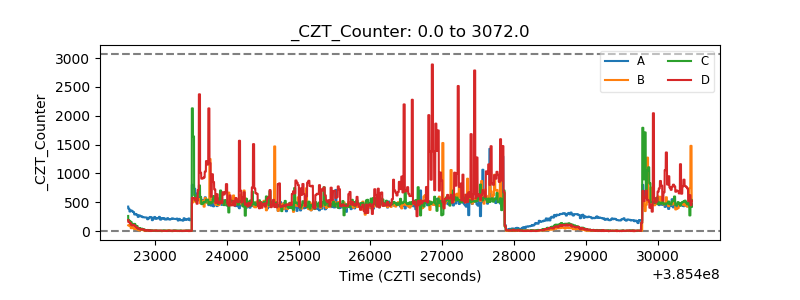

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

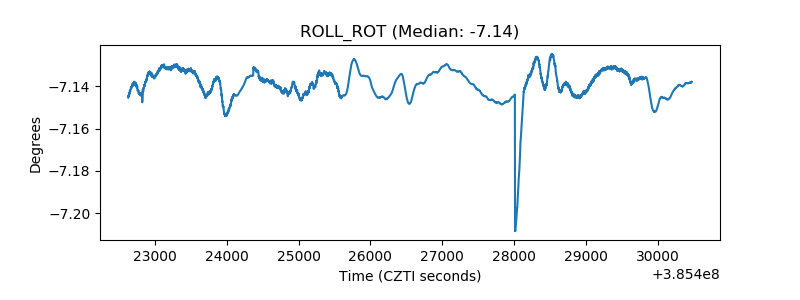

| _ROLL_ROT |  |

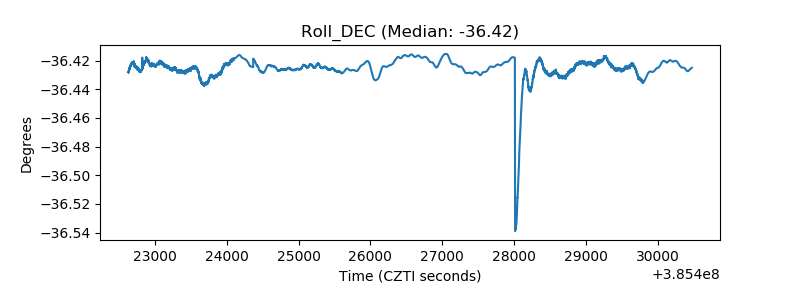

| _Roll_DEC |  |
| _Roll_RA |  |

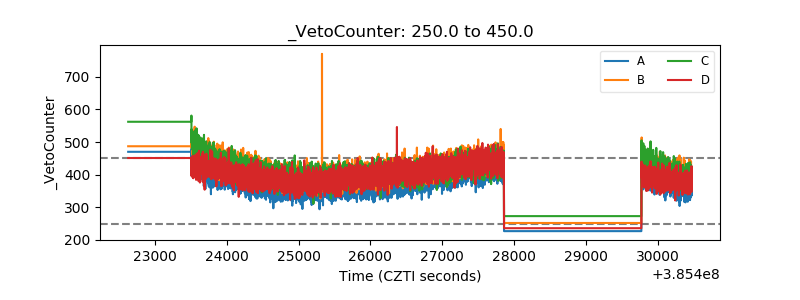

| Veto Counter |  |
