| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_35011cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_35011cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,461,899,520 | 196,770,240 |
| Size | 1.4 GB | 187.7 MB |
| Events in quadrant A | 8,506,372 | 1,206,705 |
| Events in quadrant B | 10,593,726 | 1,218,680 |
| Events in quadrant C | 8,995,529 | 1,202,589 |
| Events in quadrant D | 14,996,861 | 1,123,407 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36163 | 4 |
| B | 0 | 42325 | 3 |
| C | 0 | 36573 | 3 |
| D | 0 | 56188 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61 | 0 |
| B | 0 | 61 | 0 |
| C | 0 | 61 | 0 |
| D | 0 | 61 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 356 | 0 |
| B | 0 | 356 | 0 |
| C | 0 | 356 | 0 |
| D | 0 | 356 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17532 | 27 | 0.154004% |
| B | 17532 | 526 | 3.000228% |
| C | 17532 | 92 | 0.524755% |
| D | 17532 | 992 | 5.658225% |

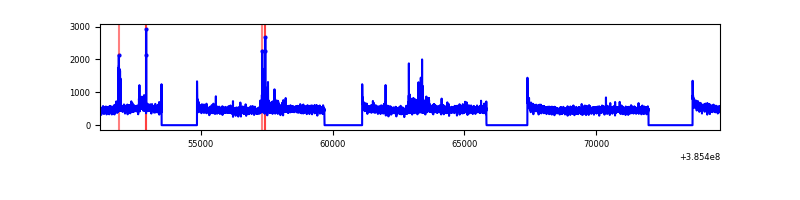

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 23533 | 17536 | 6 | 6 | 0.03% | 0.03% |  |
| B | 23533 | 17536 | 311 | 311 | 1.32% | 1.77% |  |
| C | 23533 | 17536 | 51 | 51 | 0.22% | 0.29% |  |
| D | 23533 | 17536 | 886 | 886 | 3.76% | 5.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 184880 | 437.16 | 2092 | 2050 | 418.2 |
| A | 15 | 223 | 164415 | 388.22 | 2092 | 2050 | 418.2 |
| A | 13 | 6 | 36929 | 83.4 | 2092 | 2050 | 418.2 |
| B | 5 | 31 | 633014 | 1609.42 | 2060 | 2003 | 392.1 |
| B | 4 | 232 | 599787 | 1524.67 | 2060 | 2003 | 392.1 |
| B | 5 | 172 | 580735 | 1476.08 | 2060 | 2003 | 392.1 |
| C | 15 | 214 | 727367 | 1554.6 | 2030 | 2048 | 466.6 |
| C | 0 | 10 | 239072 | 508.02 | 2030 | 2048 | 466.6 |
| C | 15 | 159 | 51214 | 105.38 | 2030 | 2048 | 466.6 |
| D | 8 | 195 | 3511427 | 7232.93 | 1991 | 1940 | 485.2 |
| D | 5 | 223 | 764840 | 1572.31 | 1991 | 1940 | 485.2 |
| D | 10 | 118 | 763840 | 1570.25 | 1991 | 1940 | 485.2 |

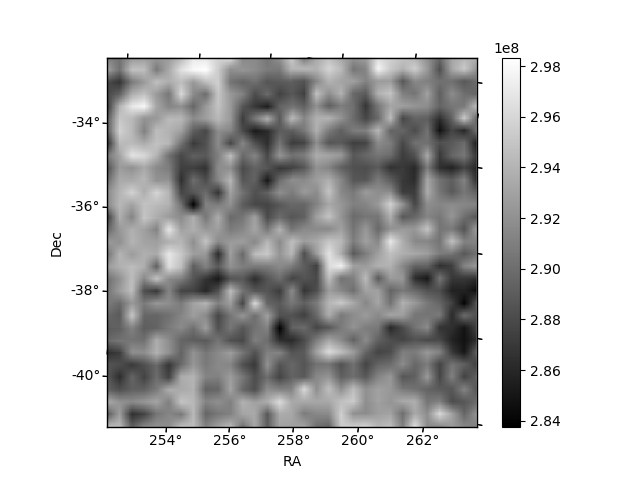

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

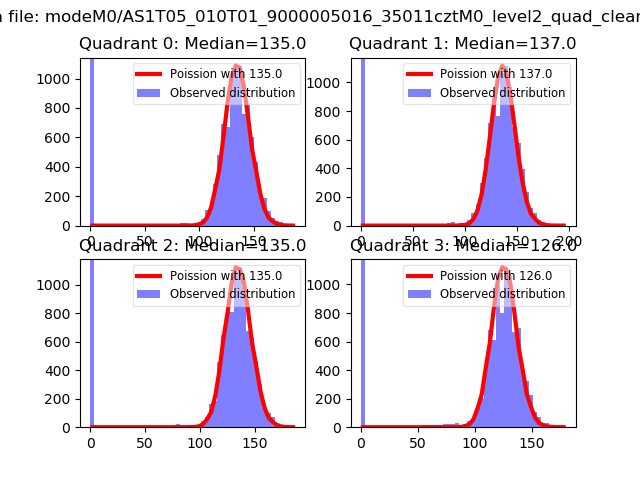

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

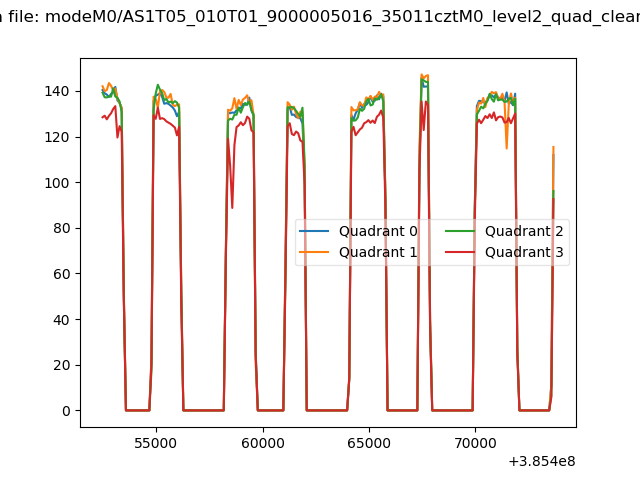

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

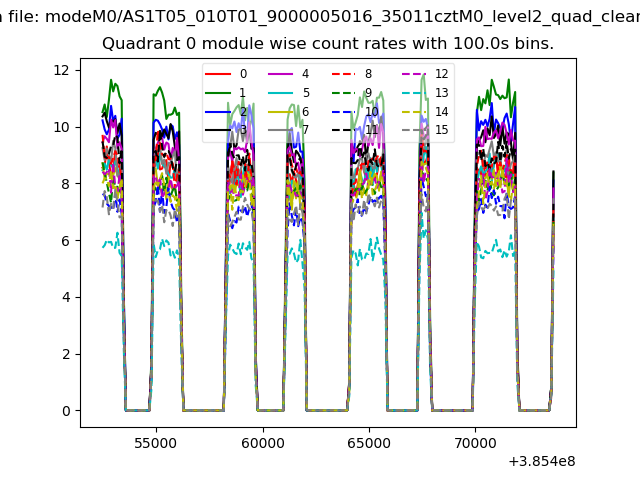

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

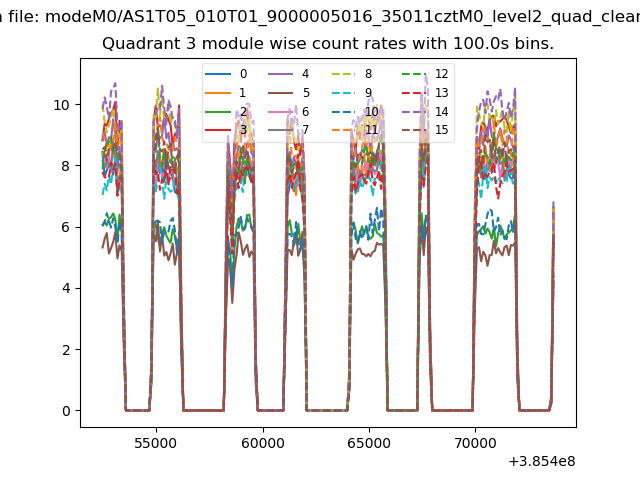

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

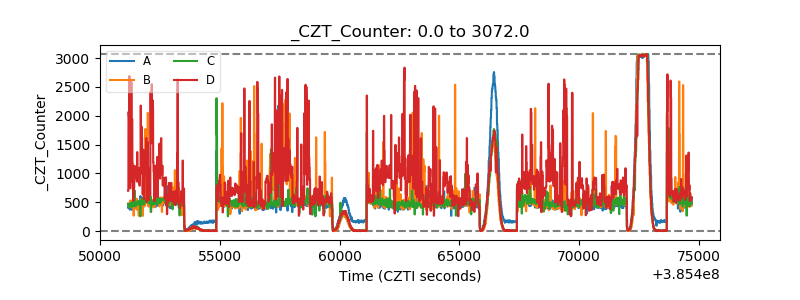

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

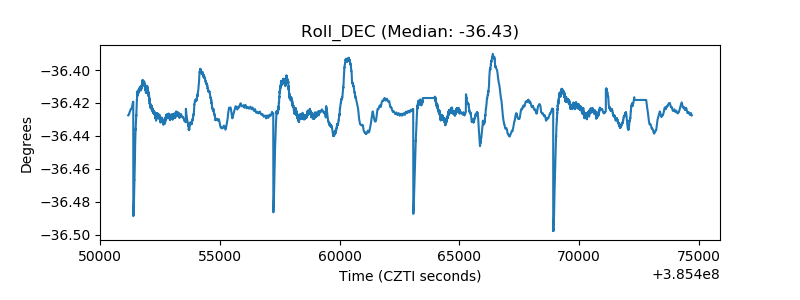

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
