| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_35015cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_35015cztM0_level2_quad_clean.evt |
| Size (bytes) | 712,249,920 | 122,129,280 |
| Size | 679.3 MB | 116.5 MB |
| Events in quadrant A | 4,585,802 | 799,770 |
| Events in quadrant B | 4,957,744 | 803,829 |
| Events in quadrant C | 4,675,738 | 776,006 |
| Events in quadrant D | 6,775,035 | 727,313 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18819 | 3 |
| B | 0 | 19890 | 2 |
| C | 0 | 18543 | 2 |
| D | 0 | 25643 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 1 |
| B | 0 | 40 | 1 |
| C | 0 | 40 | 1 |
| D | 0 | 40 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 174 | 0 |
| B | 0 | 174 | 0 |
| C | 0 | 174 | 0 |
| D | 0 | 174 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8527 | 35 | 0.410461% |
| B | 8527 | 87 | 1.020288% |
| C | 8527 | 65 | 0.762285% |
| D | 8527 | 352 | 4.128064% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12473 | 8529 | 19 | 19 | 0.15% | 0.22% |  |
| B | 12473 | 8529 | 50 | 50 | 0.40% | 0.59% |  |
| C | 12473 | 8529 | 50 | 50 | 0.40% | 0.59% |  |
| D | 12472 | 8528 | 302 | 302 | 2.42% | 3.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 247019 | 1135.12 | 1094 | 1080 | 216.7 |
| A | 10 | 83 | 93893 | 428.37 | 1094 | 1080 | 216.7 |
| A | 13 | 254 | 14770 | 63.19 | 1094 | 1080 | 216.7 |
| B | 5 | 31 | 249863 | 1231.72 | 1090 | 1068 | 202.0 |
| B | 5 | 172 | 187084 | 920.91 | 1090 | 1068 | 202.0 |
| B | 4 | 232 | 89315 | 436.89 | 1090 | 1068 | 202.0 |
| C | 15 | 214 | 349836 | 1466.09 | 1050 | 1061 | 237.9 |
| C | 0 | 10 | 205740 | 860.37 | 1050 | 1061 | 237.9 |
| C | 14 | 67 | 10097 | 37.98 | 1050 | 1061 | 237.9 |
| D | 8 | 195 | 1528426 | 6155.2 | 1029 | 1003 | 248.2 |
| D | 13 | 249 | 368741 | 1481.91 | 1029 | 1003 | 248.2 |
| D | 12 | 233 | 274489 | 1102.09 | 1029 | 1003 | 248.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

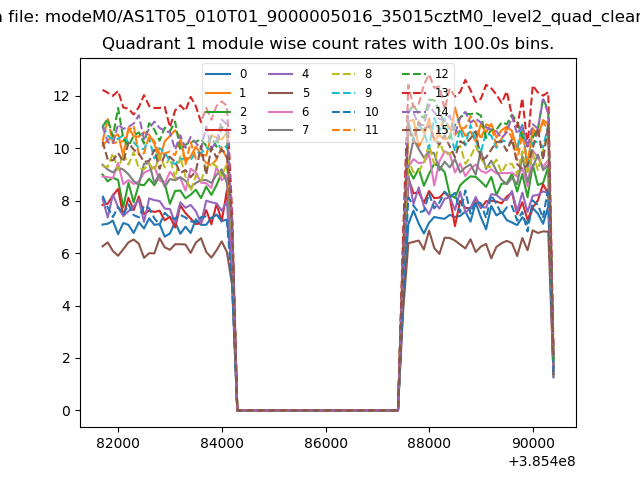

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

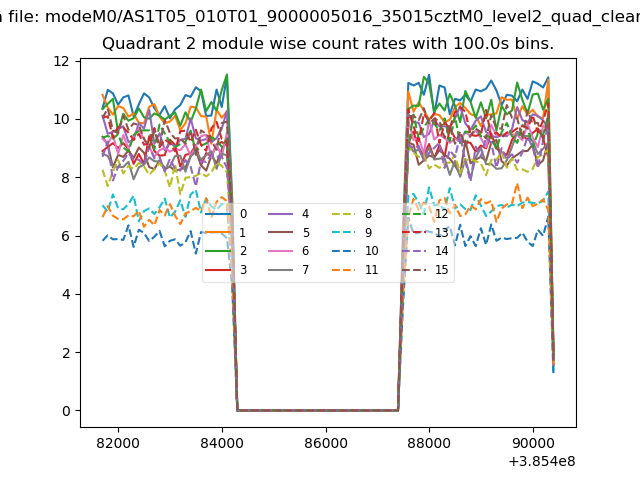

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

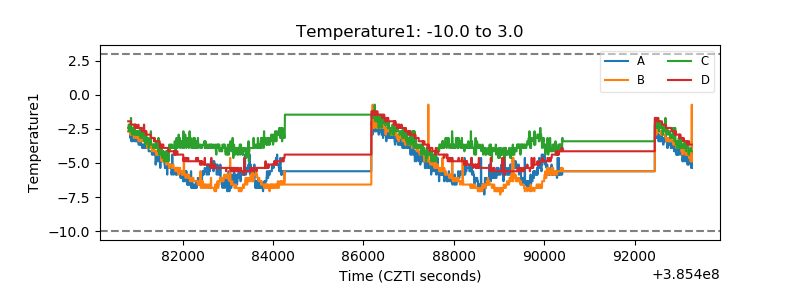

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

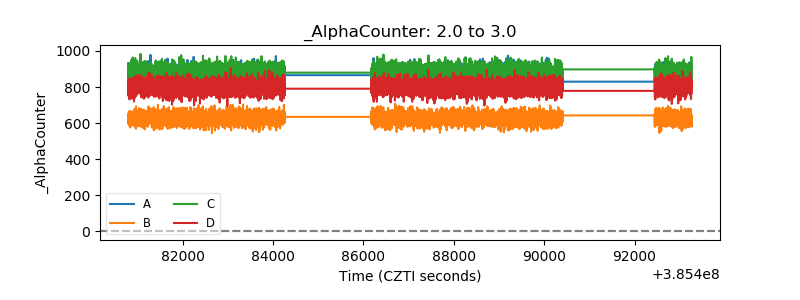

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

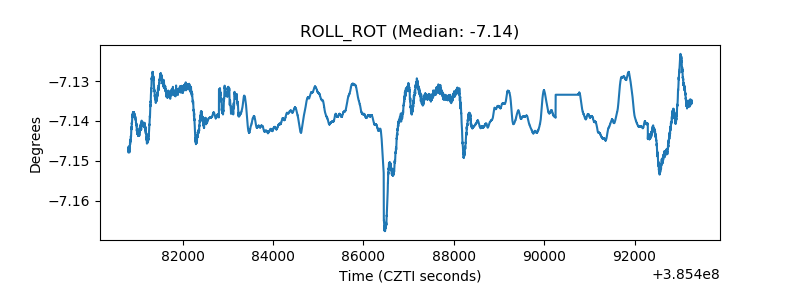

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
