| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_010T01_9000005016_35035cztM0_level2.evt | modeM0/AS1T05_010T01_9000005016_35035cztM0_level2_quad_clean.evt |
| Size (bytes) | 232,634,880 | 54,276,480 |
| Size | 221.9 MB | 51.8 MB |
| Events in quadrant A | 1,480,026 | 357,470 |
| Events in quadrant B | 1,531,733 | 365,125 |
| Events in quadrant C | 1,644,242 | 356,714 |
| Events in quadrant D | 2,161,995 | 328,430 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6718 | 1 |
| B | 0 | 6836 | 1 |
| C | 0 | 6858 | 1 |
| D | 0 | 8707 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 68 | 0 |
| B | 0 | 68 | 0 |
| C | 0 | 68 | 0 |
| D | 0 | 68 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3320 | 1 | 0.030120% |
| B | 3320 | 12 | 0.361446% |
| C | 3320 | 14 | 0.421687% |
| D | 3320 | 95 | 2.861446% |

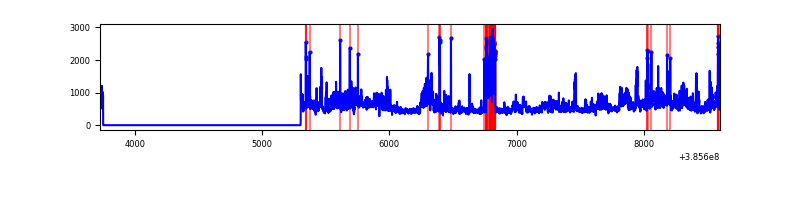

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4871 | 3320 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4872 | 3321 | 8 | 8 | 0.16% | 0.24% |  |
| C | 4872 | 3321 | 10 | 10 | 0.21% | 0.30% |  |
| D | 4871 | 3320 | 62 | 62 | 1.27% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 41034 | 540.6 | 370 | 363 | 75.2 |
| A | 13 | 6 | 6154 | 76.97 | 370 | 363 | 75.2 |
| A | 13 | 254 | 4821 | 59.26 | 370 | 363 | 75.2 |
| B | 5 | 172 | 28168 | 384.32 | 368 | 358 | 72.4 |
| B | 5 | 200 | 23296 | 316.99 | 368 | 358 | 72.4 |
| B | 0 | 199 | 14520 | 195.71 | 368 | 358 | 72.4 |
| C | 15 | 214 | 137758 | 1589.93 | 366 | 369 | 86.4 |
| C | 0 | 10 | 49528 | 568.89 | 366 | 369 | 86.4 |
| C | 14 | 67 | 19365 | 219.83 | 366 | 369 | 86.4 |
| D | 8 | 195 | 447800 | 5088.27 | 356 | 346 | 87.9 |
| D | 2 | 249 | 163852 | 1859.32 | 356 | 346 | 87.9 |
| D | 13 | 249 | 72413 | 819.52 | 356 | 346 | 87.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

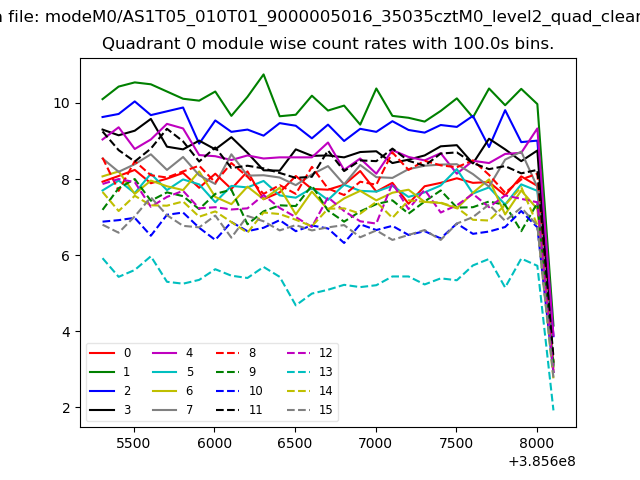

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

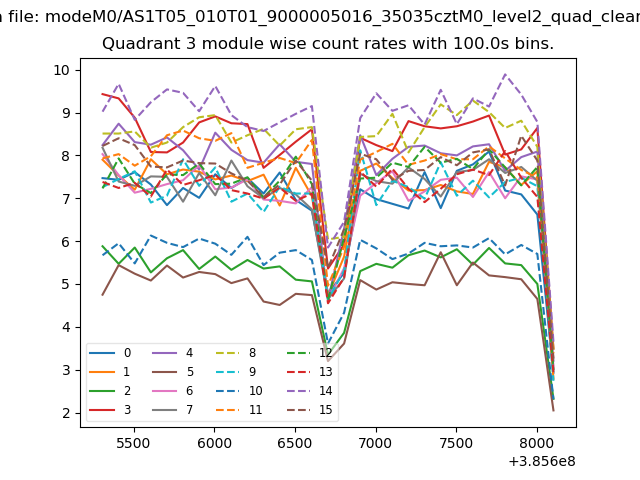

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

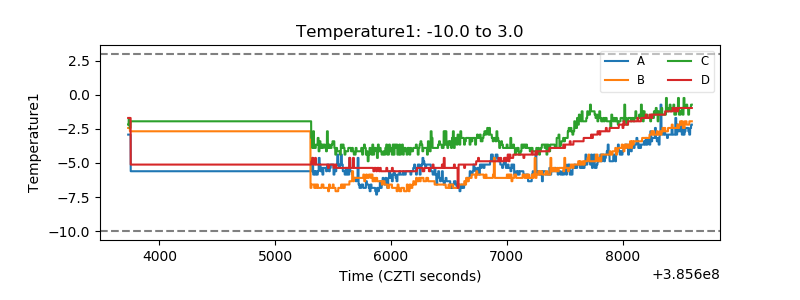

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

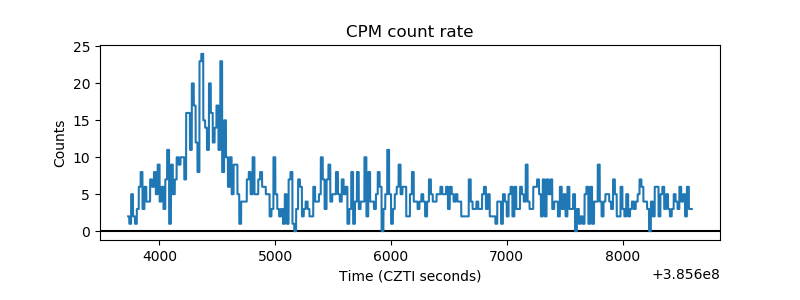

| _CPM_Rate |  |

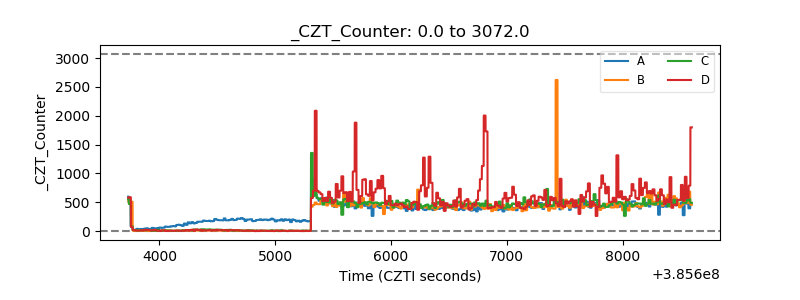

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

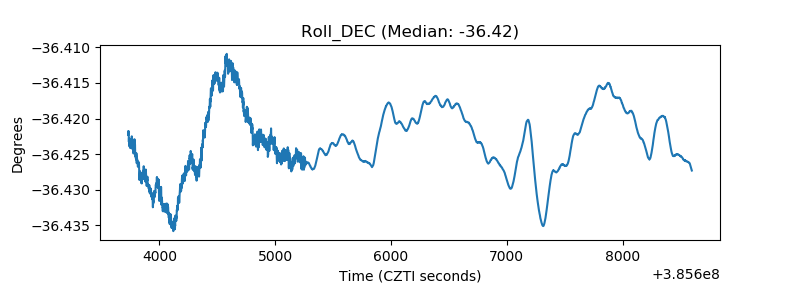

| _Roll_DEC |  |
| _Roll_RA |  |

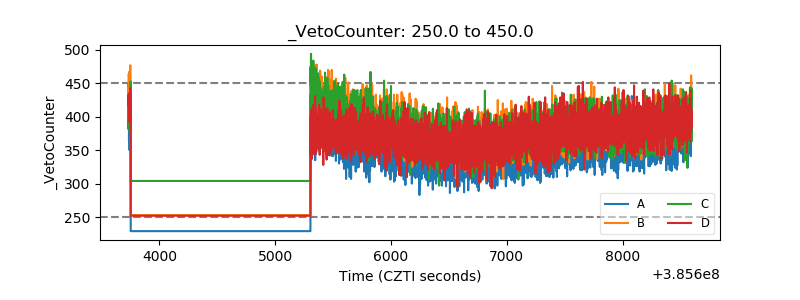

| Veto Counter |  |
