| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_057T01_9000005022_35050cztM0_level2.evt | modeM0/AS1A10_057T01_9000005022_35050cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,805,120 | 67,654,080 |
| Size | 491.9 MB | 64.5 MB |
| Events in quadrant A | 2,940,417 | 421,203 |
| Events in quadrant B | 3,777,034 | 411,218 |
| Events in quadrant C | 3,433,886 | 413,494 |
| Events in quadrant D | 5,055,480 | 375,672 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12676 | 3 |
| B | 0 | 15190 | 2 |
| C | 0 | 13749 | 2 |
| D | 0 | 19235 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6112 | 24 | 0.392670% |
| B | 6112 | 299 | 4.892016% |
| C | 6112 | 98 | 1.603403% |
| D | 6112 | 320 | 5.235602% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

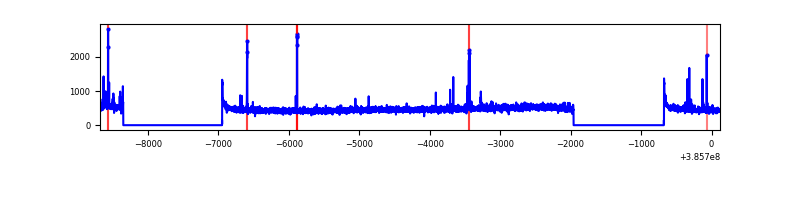

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8797 | 6113 | 11 | 11 | 0.13% | 0.18% |  |
| B | 8797 | 6113 | 209 | 209 | 2.38% | 3.42% |  |
| C | 8797 | 6113 | 96 | 96 | 1.09% | 1.57% |  |
| D | 8797 | 6113 | 301 | 301 | 3.42% | 4.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 81188 | 557.49 | 710 | 697 | 144.4 |
| A | 9 | 143 | 61625 | 421.99 | 710 | 697 | 144.4 |
| A | 15 | 237 | 14980 | 98.92 | 710 | 697 | 144.4 |
| B | 5 | 172 | 662009 | 4930.08 | 696 | 676 | 134.1 |
| B | 5 | 200 | 206577 | 1534.94 | 696 | 676 | 134.1 |
| B | 4 | 232 | 77824 | 575.12 | 696 | 676 | 134.1 |
| C | 15 | 214 | 254208 | 1571.66 | 691 | 696 | 161.3 |
| C | 0 | 10 | 247428 | 1529.63 | 691 | 696 | 161.3 |
| C | 9 | 54 | 177793 | 1097.92 | 691 | 696 | 161.3 |
| D | 8 | 195 | 1068384 | 6437.66 | 678 | 660 | 165.9 |
| D | 12 | 227 | 476199 | 2867.18 | 678 | 660 | 165.9 |
| D | 13 | 249 | 150993 | 906.41 | 678 | 660 | 165.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

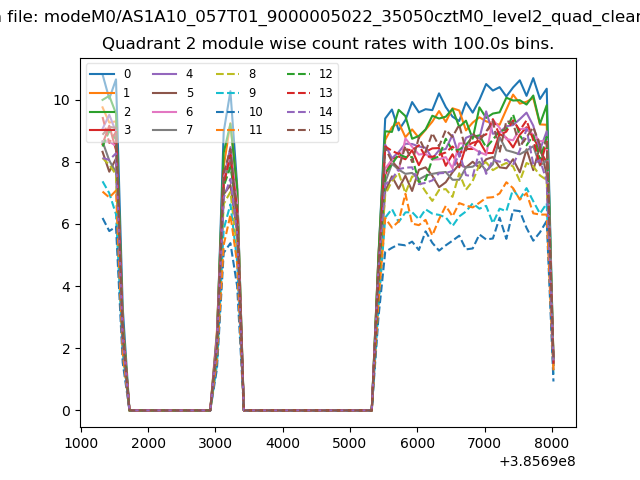

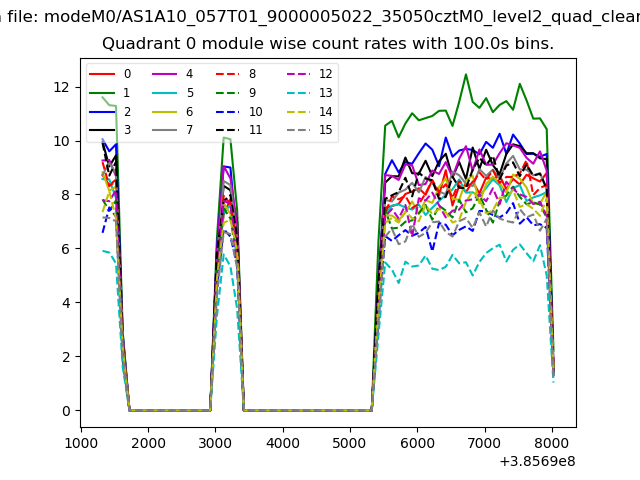

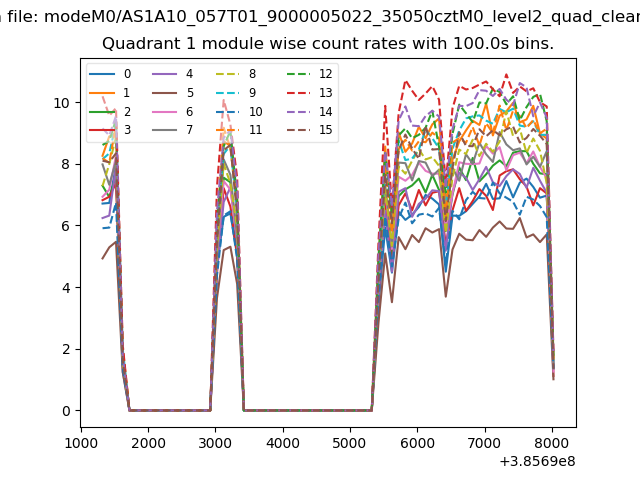

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

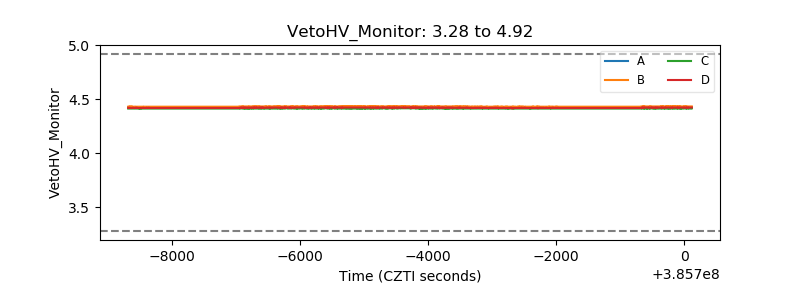

| Veto HV Monitor |  |
| Veto LLD |  |

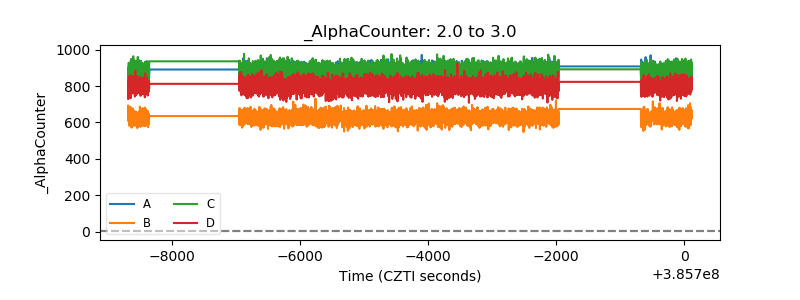

| Alpha Counter |  |
| _CPM_Rate |  |

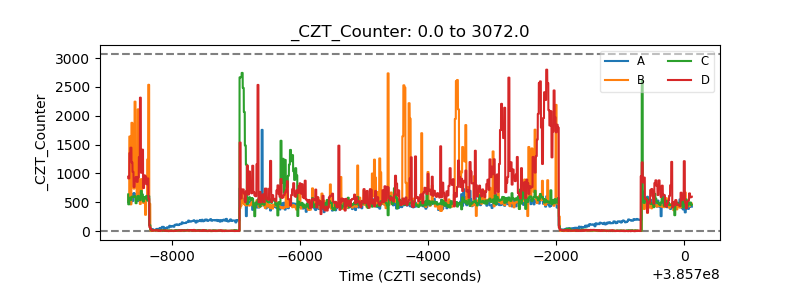

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

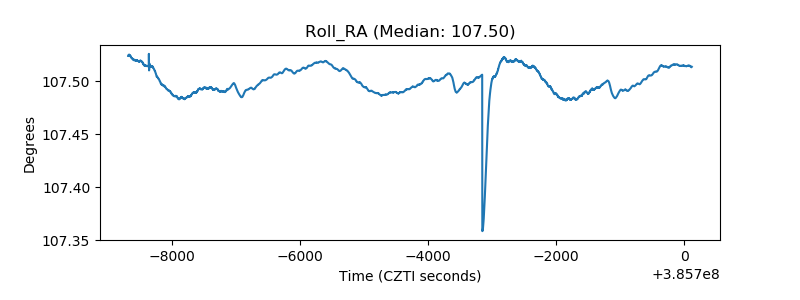

| _Roll_RA |  |
| Veto Counter |  |
