| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T08_9000005024_35067cztM0_level2.evt | modeM0/AS1A11_046T08_9000005024_35067cztM0_level2_quad_clean.evt |
| Size (bytes) | 754,793,280 | 160,266,240 |
| Size | 719.8 MB | 152.8 MB |
| Events in quadrant A | 4,026,570 | 1,071,787 |
| Events in quadrant B | 5,101,437 | 1,074,449 |
| Events in quadrant C | 4,349,530 | 1,100,865 |
| Events in quadrant D | 8,782,908 | 992,377 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18003 | 2 |
| B | 0 | 21259 | 2 |
| C | 0 | 18368 | 2 |
| D | 0 | 32420 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 180 | 0 |
| B | 0 | 180 | 0 |
| C | 0 | 180 | 0 |
| D | 0 | 180 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8852 | 16 | 0.180750% |
| B | 8852 | 360 | 4.066878% |
| C | 8852 | 27 | 0.305016% |
| D | 8852 | 539 | 6.089019% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10194 | 8853 | 4 | 4 | 0.04% | 0.05% |  |
| B | 10194 | 8853 | 236 | 236 | 2.32% | 2.67% |  |
| C | 10194 | 8853 | 17 | 17 | 0.17% | 0.19% |  |
| D | 10194 | 8853 | 448 | 448 | 4.39% | 5.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 99309 | 488.69 | 998 | 979 | 201.2 |
| A | 9 | 143 | 34614 | 167.16 | 998 | 979 | 201.2 |
| A | 13 | 254 | 15621 | 72.77 | 998 | 979 | 201.2 |
| B | 5 | 172 | 1081819 | 5787.48 | 979 | 953 | 186.8 |
| B | 4 | 232 | 54855 | 288.62 | 979 | 953 | 186.8 |
| B | 15 | 85 | 34196 | 178.0 | 979 | 953 | 186.8 |
| C | 15 | 214 | 367551 | 1626.24 | 978 | 985 | 225.4 |
| C | 0 | 10 | 112934 | 496.65 | 978 | 985 | 225.4 |
| C | 14 | 67 | 27527 | 117.75 | 978 | 985 | 225.4 |
| D | 8 | 195 | 3445007 | 15053.44 | 953 | 927 | 228.8 |
| D | 1 | 47 | 633393 | 2764.39 | 953 | 927 | 228.8 |
| D | 2 | 250 | 225700 | 982.44 | 953 | 927 | 228.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

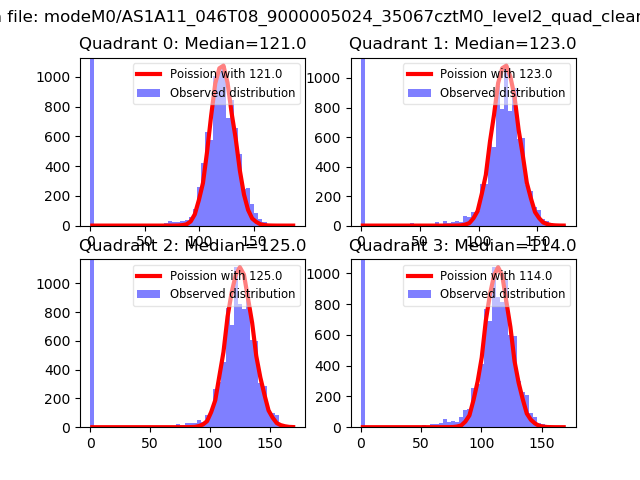

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

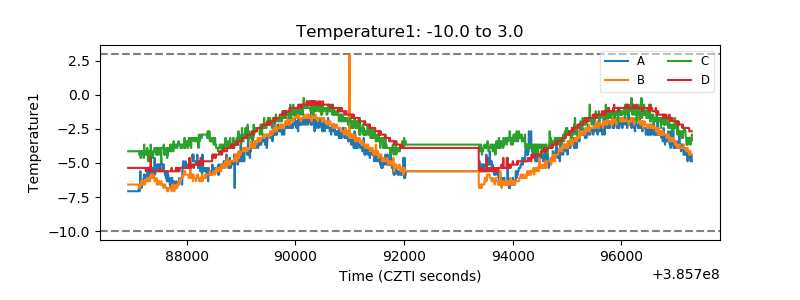

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

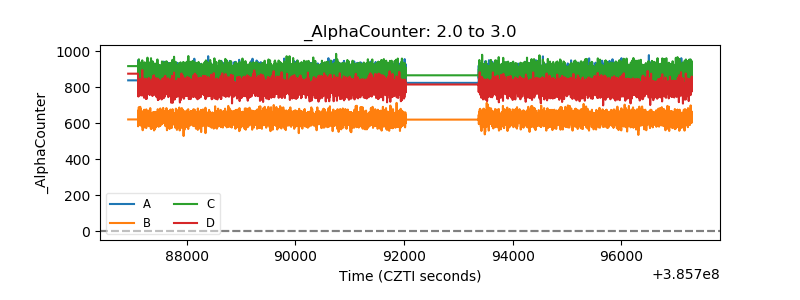

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

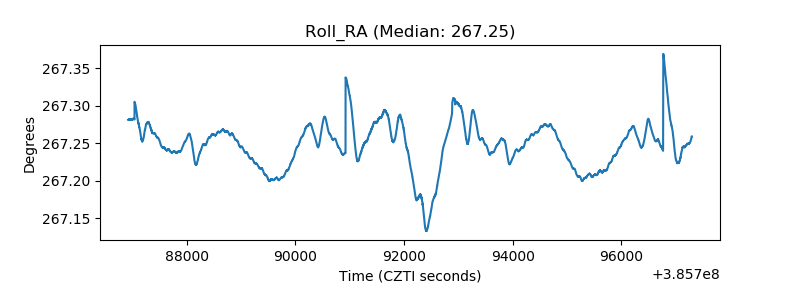

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

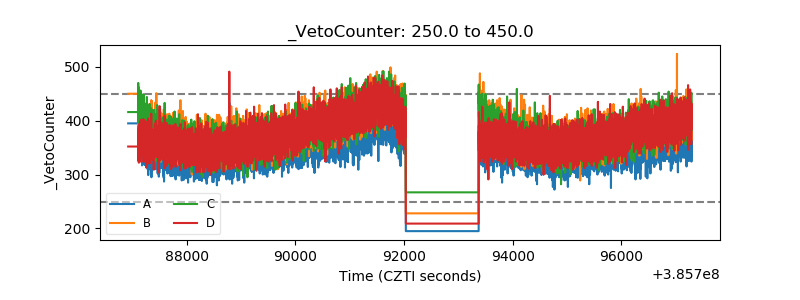

| Veto Counter |  |
