| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_015T01_9000005026_35076cztM0_level2.evt | modeM0/AS1T05_015T01_9000005026_35076cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,332,160 | 93,435,840 |
| Size | 423.7 MB | 89.1 MB |
| Events in quadrant A | 2,474,240 | 624,893 |
| Events in quadrant B | 3,074,630 | 631,529 |
| Events in quadrant C | 2,701,134 | 636,361 |
| Events in quadrant D | 4,861,403 | 580,370 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10617 | 3 |
| B | 0 | 12353 | 2 |
| C | 0 | 10923 | 2 |
| D | 0 | 18030 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5084 | 12 | 0.236035% |
| B | 5084 | 136 | 2.675059% |
| C | 5084 | 34 | 0.668765% |
| D | 5084 | 490 | 9.638080% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7116 | 5085 | 8 | 8 | 0.11% | 0.16% |  |
| B | 7116 | 5085 | 89 | 89 | 1.25% | 1.75% |  |
| C | 7116 | 5085 | 13 | 13 | 0.18% | 0.26% |  |
| D | 7116 | 5085 | 414 | 414 | 5.82% | 8.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 78497 | 642.48 | 606 | 594 | 121.3 |
| A | 15 | 174 | 38757 | 314.73 | 606 | 594 | 121.3 |
| A | 13 | 6 | 11445 | 89.49 | 606 | 594 | 121.3 |
| B | 5 | 172 | 497360 | 4311.86 | 602 | 587 | 115.2 |
| B | 0 | 189 | 101224 | 873.5 | 602 | 587 | 115.2 |
| B | 4 | 232 | 43504 | 372.51 | 602 | 587 | 115.2 |
| C | 15 | 214 | 212849 | 1527.31 | 601 | 608 | 139.0 |
| C | 0 | 10 | 108130 | 773.74 | 601 | 608 | 139.0 |
| C | 14 | 67 | 35609 | 251.87 | 601 | 608 | 139.0 |
| D | 8 | 195 | 1528733 | 11042.37 | 566 | 552 | 138.4 |
| D | 10 | 118 | 741291 | 5352.45 | 566 | 552 | 138.4 |
| D | 13 | 249 | 144898 | 1043.02 | 566 | 552 | 138.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

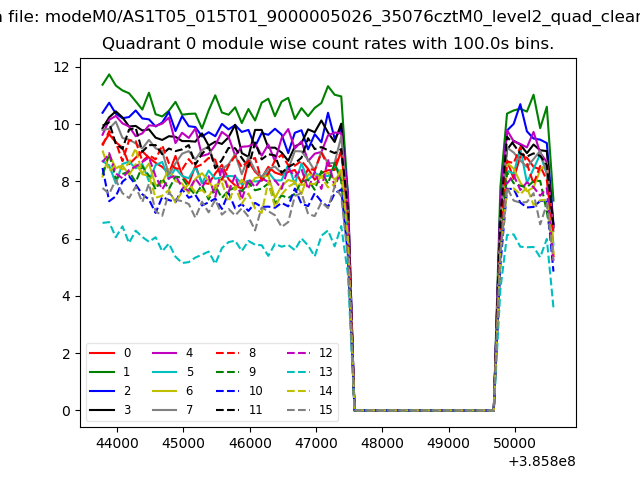

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

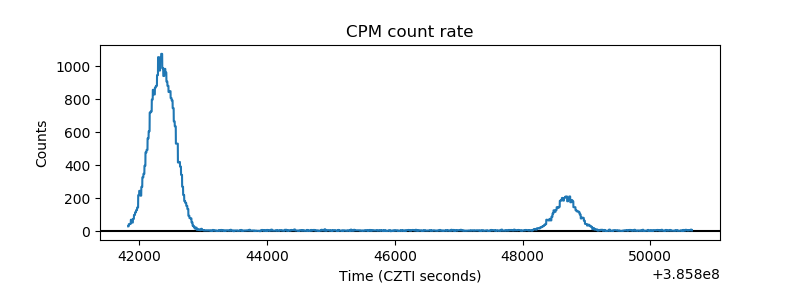

| _CPM_Rate |  |

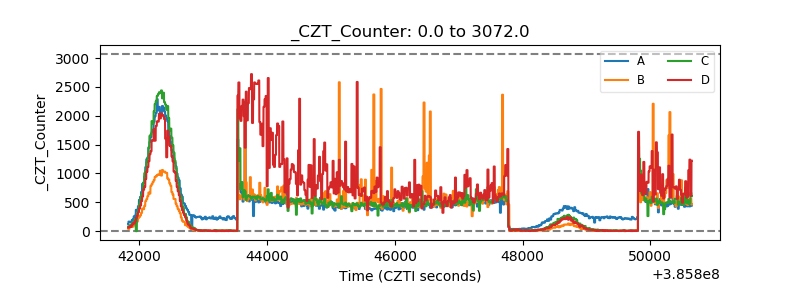

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

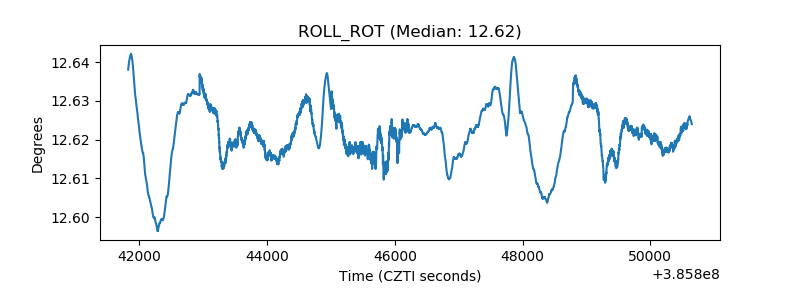

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
