| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_015T01_9000005026_35111cztM0_level2.evt | modeM0/AS1T05_015T01_9000005026_35111cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,735,188,480 | 186,946,560 |
| Size | 1.6 GB | 178.3 MB |
| Events in quadrant A | 10,705,165 | 1,149,460 |
| Events in quadrant B | 10,212,208 | 1,177,649 |
| Events in quadrant C | 9,529,807 | 1,174,720 |
| Events in quadrant D | 21,020,540 | 1,047,025 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 330 | 0 |
| B | 0 | 330 | 0 |
| C | 0 | 330 | 0 |
| D | 0 | 330 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42589 | 5 |
| B | 0 | 40843 | 4 |
| C | 0 | 38498 | 4 |
| D | 0 | 73852 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16130 | 567 | 3.515189% |
| B | 16130 | 819 | 5.077495% |
| C | 16130 | 231 | 1.432114% |
| D | 16130 | 2182 | 13.527588% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

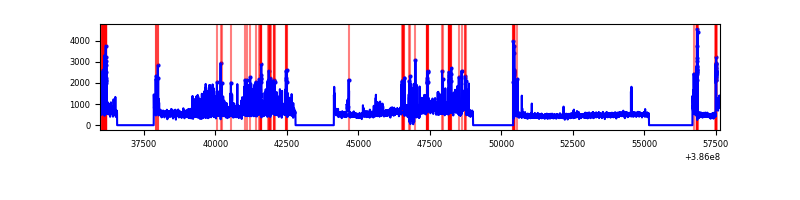

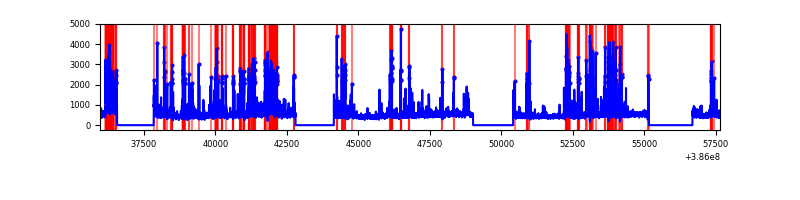

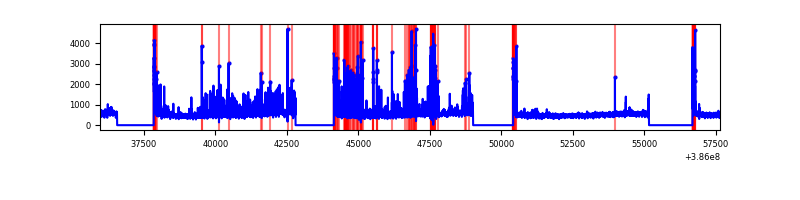

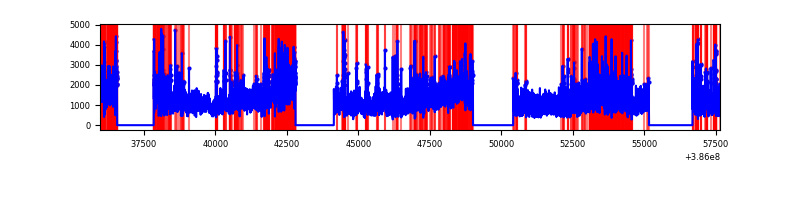

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21682 | 16134 | 173 | 173 | 0.80% | 1.07% |  |
| B | 21682 | 16134 | 468 | 468 | 2.16% | 2.90% |  |
| C | 21682 | 16134 | 160 | 160 | 0.74% | 0.99% |  |
| D | 21682 | 16134 | 1461 | 1461 | 6.74% | 9.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3257623 | 8818.06 | 1855 | 1818 | 369.2 |
| A | 10 | 83 | 189429 | 508.13 | 1855 | 1818 | 369.2 |
| A | 9 | 143 | 42892 | 111.25 | 1855 | 1818 | 369.2 |
| B | 5 | 172 | 1955824 | 5628.08 | 1840 | 1794 | 347.2 |
| B | 0 | 190 | 403398 | 1156.72 | 1840 | 1794 | 347.2 |
| B | 4 | 232 | 268629 | 768.55 | 1840 | 1794 | 347.2 |
| C | 0 | 10 | 1523162 | 3614.75 | 1829 | 1841 | 420.9 |
| C | 15 | 214 | 671227 | 1590.5 | 1829 | 1841 | 420.9 |
| C | 14 | 67 | 122098 | 285.74 | 1829 | 1841 | 420.9 |
| D | 8 | 195 | 11059857 | 25671.9 | 1760 | 1704 | 430.7 |
| D | 7 | 80 | 1149657 | 2665.01 | 1760 | 1704 | 430.7 |
| D | 10 | 118 | 416958 | 964.03 | 1760 | 1704 | 430.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

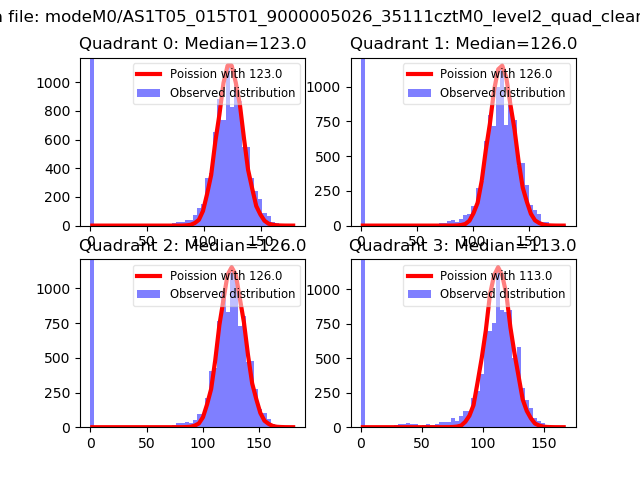

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

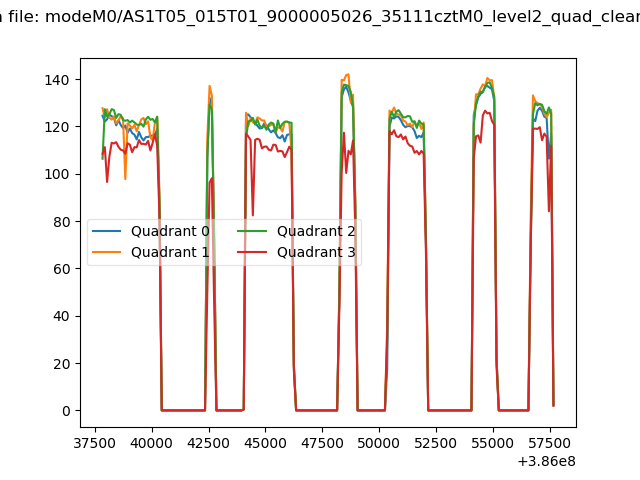

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

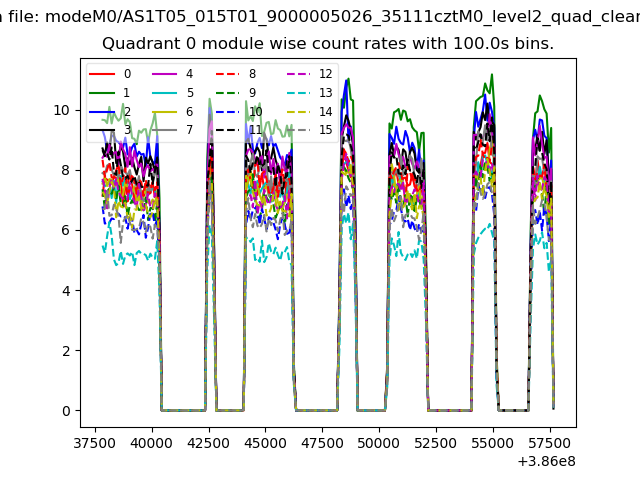

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

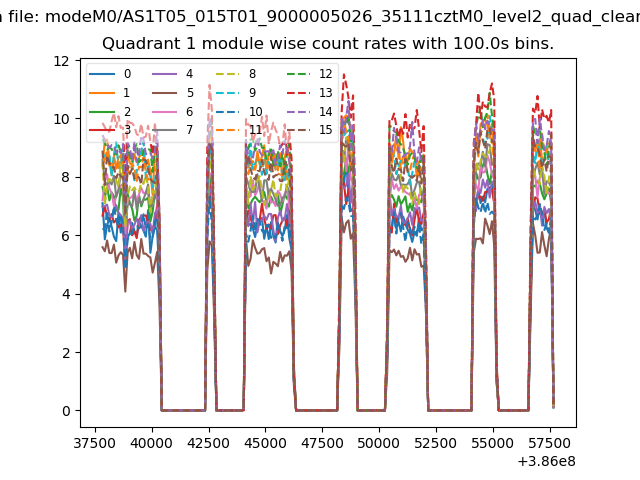

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

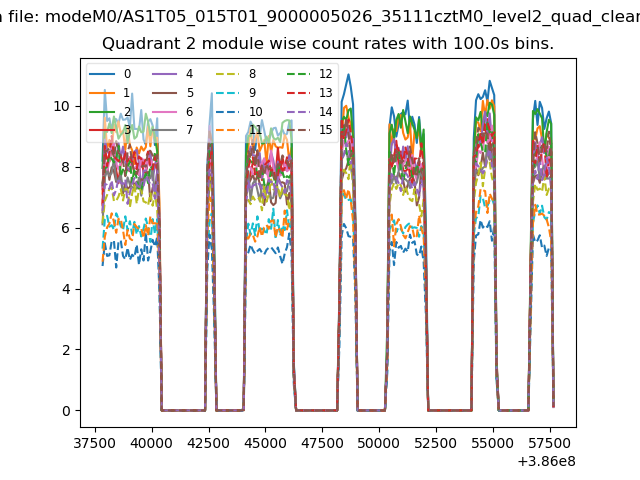

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

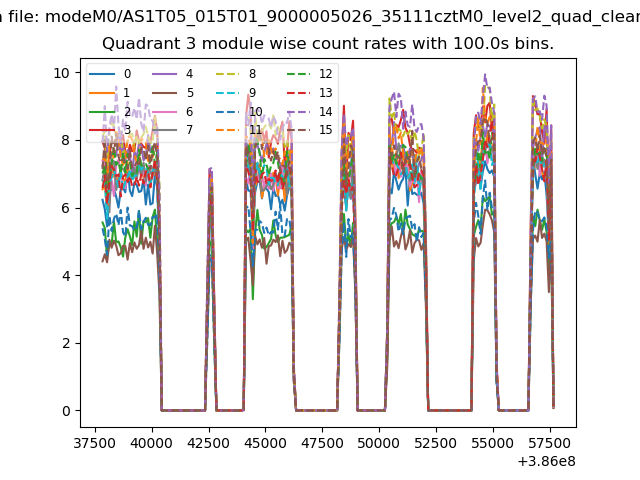

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

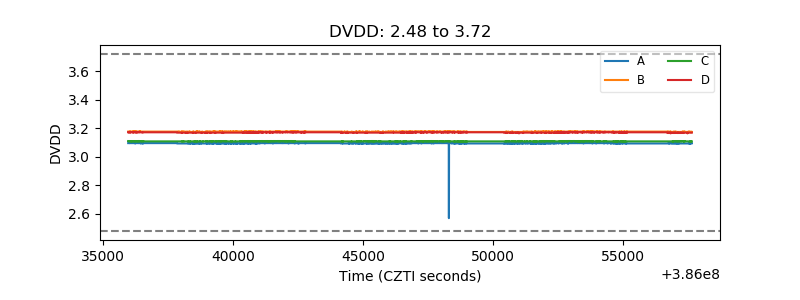

| D_VDD |  |

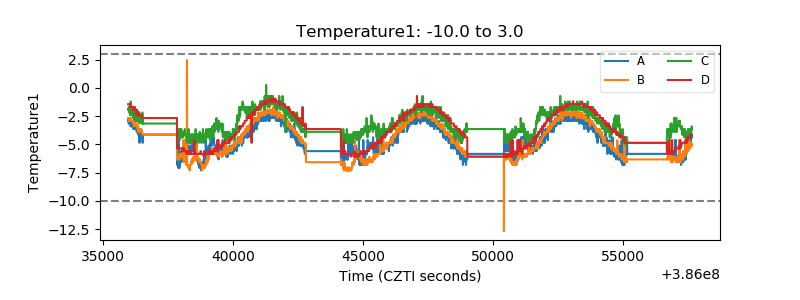

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

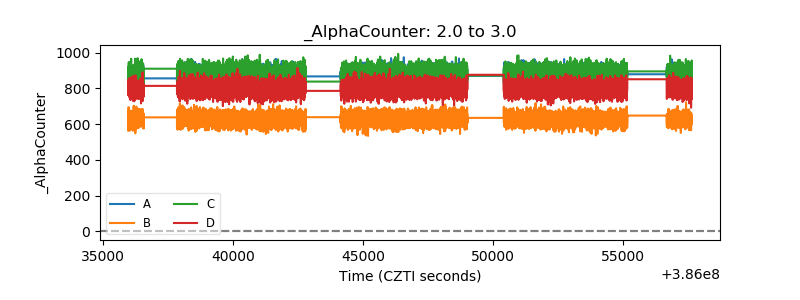

| Alpha Counter |  |

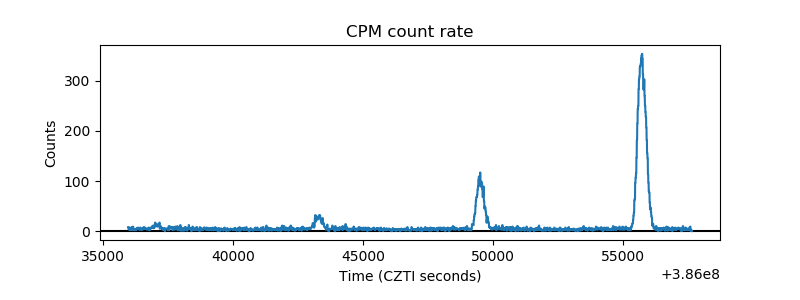

| _CPM_Rate |  |

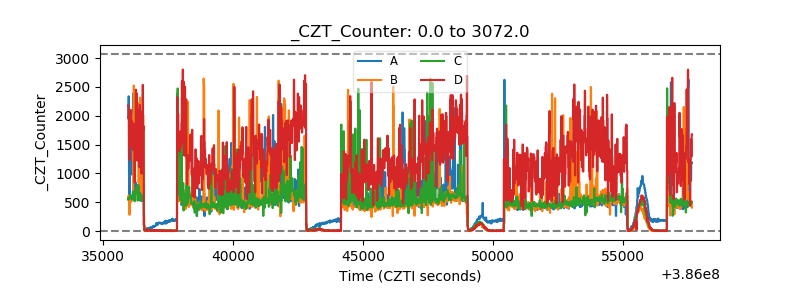

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

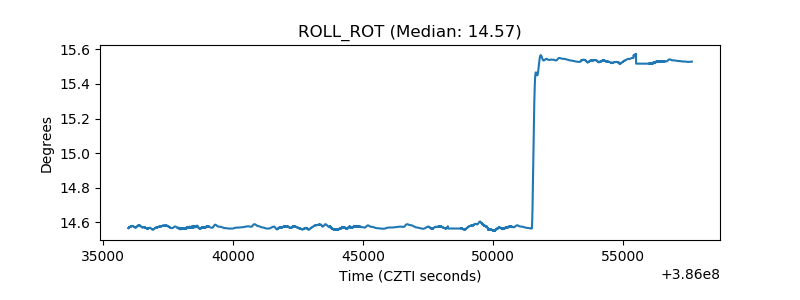

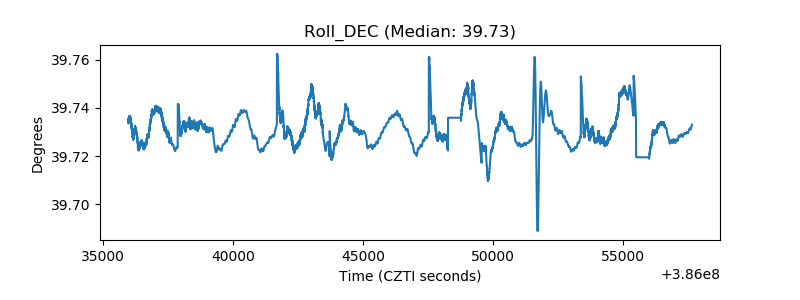

| _ROLL_ROT |  |
| _Roll_DEC |  |

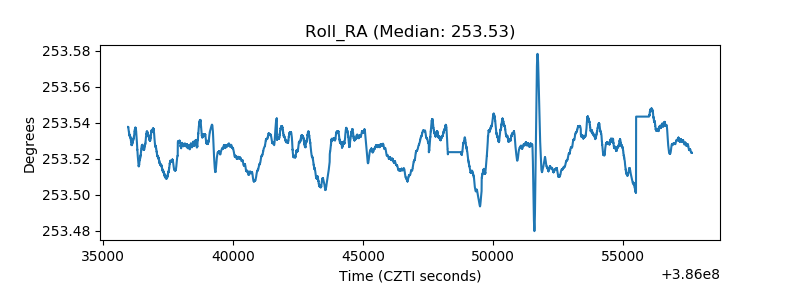

| _Roll_RA |  |

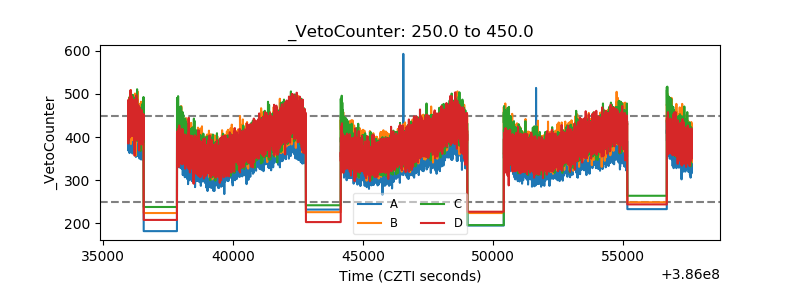

| Veto Counter |  |
